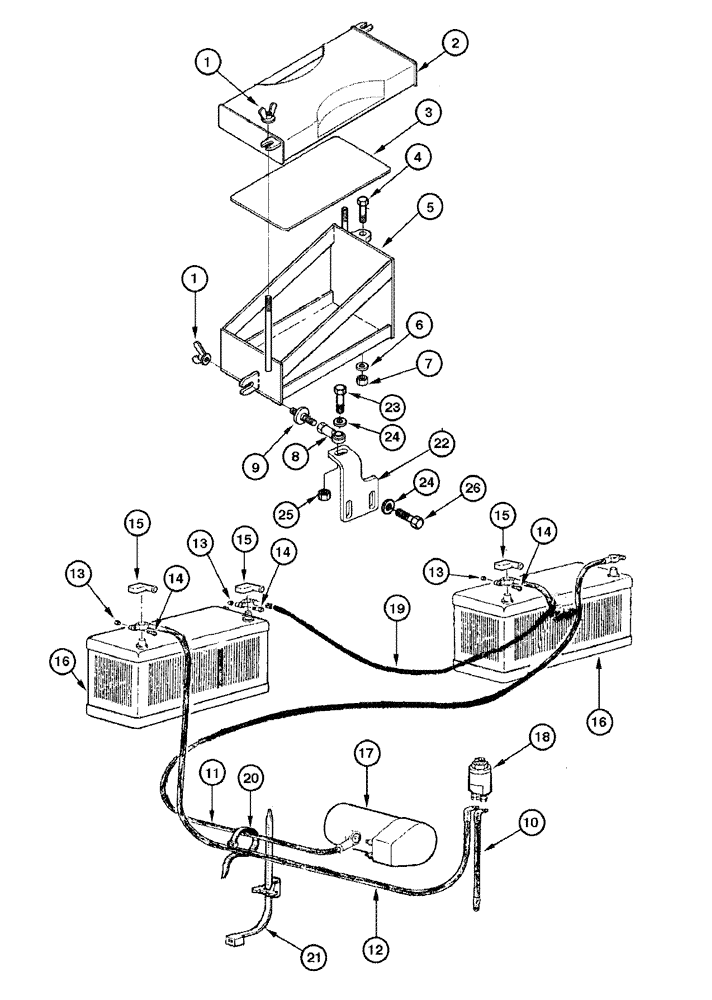

Запчасти Case 865 DHP (4-028) - ELECTRIC SYSTEM - BATTERY (04) - ELECTRICAL SYSTEMS

1

73125821

NUT

6шт.

2

75326442

COVER

COVER

2шт.

3

75249924

PLATE

2шт.

4

15541231

BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9

4шт.

5

75324207

SUPPORT

BRACKET L.H.

1шт.

5

75324318

SUPPORT

BRACKET R.H.

1шт.

6

12646921

WASHER,12.2mm ID x 28mm OD x 3mm Thk

4шт.

7

16105011

NUT,Hex, M12 x 1.25, Cl 8

4шт.

8

70617932

TRACK ROD END

SIDE

2шт.

9

75324262

BOLT

LOCK

2шт.

10

75239845

ELECTRIC CABLE,700mm L

HARNESS ground

1шт.

11

76022498

ELECTRIC CABLE

HARNESS positive

1шт.

12

75322262

ELECTRIC CABLE

HARNESS negative, Includes: Ref. 13 - 15

1шт.

13

43362

NUT,M8 x 1.25, Cl 10

3шт.

14

11947708

BOLT

BOLT

3шт.

15

8321668

BOOT

GUARD

3шт.

16

BMF31TW

WET BATTERY

For U.S. market

2шт.

16

CBMF31TW

WET BATTERY

For CANADA market

2шт.

17

REF

INSTRUCTION

MOTOR starter (Figure 4-002)

1шт.

18

REF

INSTRUCTION

MASTER-KEY (Figure 4-018)

1шт.

19

75324401

ELECTRIC CABLE

HARNESS

1шт.

20

75201641

CLAMP

4шт.

21

75284071

CLAMP

6шт.

22

75324253

SUPPORT

BRACKET L.H.

1шт.

22

75324372

SUPPORT

BRACKET R.H.

1шт.

23

16044131

BOLT,Hex, M8 x 45mm, Cl 10.9

2шт.

24

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

25

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

2шт.

26

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

4шт.
