Запчасти Case 865 DHP (4-024) - ELECTRIC SYSTEM - ENGINE (04) - ELECTRICAL SYSTEMS

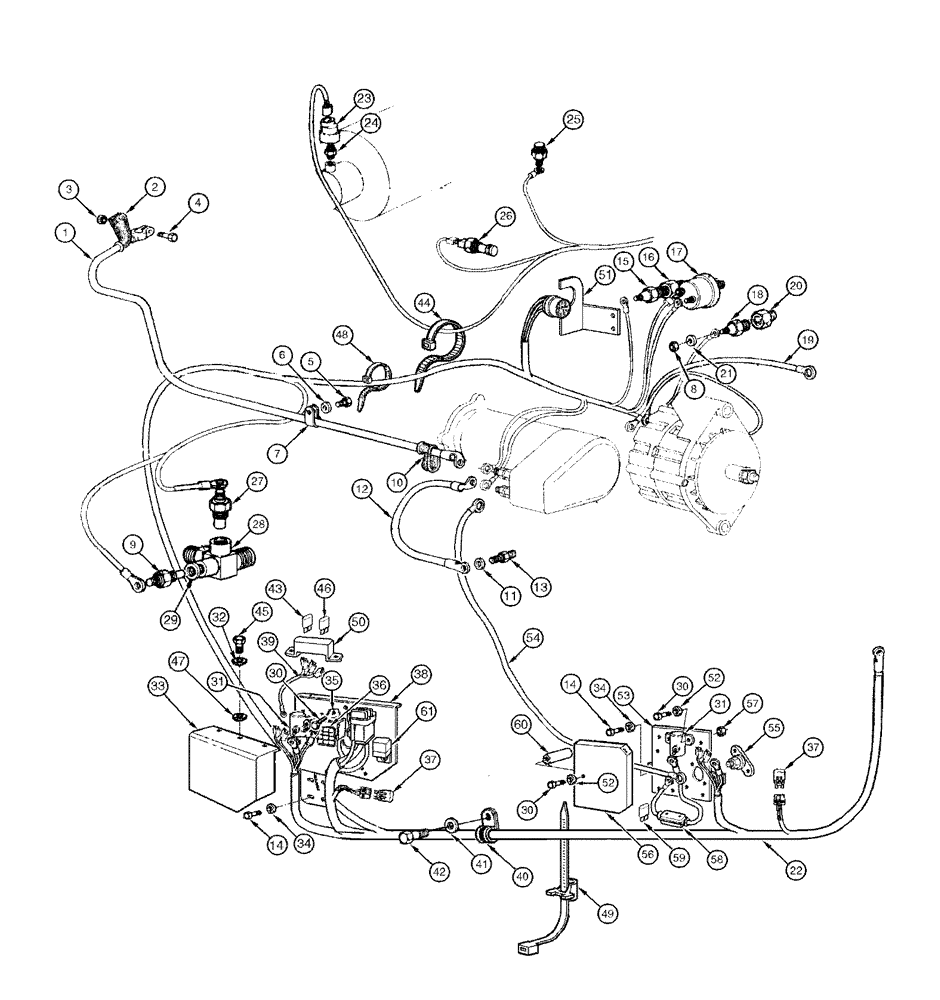

Схема запчастей Case 865 DHP - (4-024) - ELECTRIC SYSTEM - ENGINE (04) - ELECTRICAL SYSTEMS
34
6
28
37
3
52
57
44
16
52
46
25
14
22
1
50
58
47
31
54
40
49
7
9
30
12
4
38
10
8
5
37
48
35
20
55
59
53
27
15
30
18
21
39
42
13
29
60
33
36
30
23
32
34
56
41
24
17
26
51
45
19
31
2
61
14
43
11

Артикул

Название

Примечание

Количество

1

76022498

ELECTRIC CABLE

HARNESS, Includes: Ref. 2 - 4

1шт.

2

8321668

BOOT

GUARD

1шт.

3

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

4

11945008

SCREW,Sqr Head, M6 x 1 x 30mm

Sq. Hd, M6 x 1 x 30

1шт.

5

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

6

10516671

LOCK WASHER

1шт.

7

549064

CLAMP

CLAMP

1шт.

8

70910251

NUT

1шт.

9

75236111

TEMPERATURE SENDER,5/8" - 18

oil temperature

2шт.

10

4956122

PROTECTION CAP

GUARD

1шт.

11

14476531

WASHER

1шт.

12

73152169

FLEXIBLE CONTROL

HARNESS

1шт.

13

L127553

STUD

1шт.

14

11112331

BOLT,Hex, M12 x 28mm, Cl 10.9, Full Thd

2шт.

15

75236111

TEMPERATURE SENDER,5/8" - 18

water temperatue

1шт.

16

75214505

HYD CONNECTOR

1шт.

17

75236112

SENSOR

engine oil pressure

1шт.

18

1983238C1

SENSOR,1/2" - 14

water

1шт.

19

73126797

ELECTRIC CABLE,228.6mm L

HARNESS

1шт.

20

70901828

BUSHING

CONNECTOR

1шт.

21

70904203

LOCK WASHER

1шт.

22

75326324

WIRE

HARNESS

1шт.

23

79102142

INDICATOR

Indicator, Restriction Air Filter

1шт.

24

70916634

HYD CONNECTOR

1шт.

25

1983238C1

SENSOR,1/2" - 14

hyd. oil

1шт.

26

75322672

SENSOR

HYDRAULIC FILTER RESTRICTION SWITCH

1шт.

27

75261702

SWITCH

SENSOR oil temperature

1шт.

28

75254122

HYD CONNECTOR

1шт.

29

10257060

SEALING WASHER,16.3mm ID x 22mm OD x 1.5mm Thk

1шт.

30

10902131

SCREW,Hex, M6 x 14mm, Cl 10.9, Full Thd

3шт.

31

120398A1

RELAY

2шт.

32

10516473

WASHER

5шт.

33

75322088

COVER

1шт.

34

10520121

WASHER

4шт.

35

50001484

BRACKET

RECEPTACLE

1шт.

36

5962562

COVER

1шт.

37

75283949

DIODE ELEMENT

2шт.

38

75326718

BOX

PLATE

1шт.

39

75326646

WIRE

HARNESS

1шт.

40

10450690

CLAMP,20mm, Coat, 9mm Bolt Hole, P Type

CLAMP

2шт.

41

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

2шт.

42

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

2шт.

43

9811773

FUSE,10A, Micro, Red

2шт.

44

75201642

CLAMP

10шт.

45

10902131

SCREW,Hex, M6 x 14mm, Cl 10.9, Full Thd

2шт.

46

87717079

FUSE,7.5A

4шт.

47

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

5шт.

48

75201641

CLAMP

15шт.

49

75284071

CLAMP

5шт.

50

79078595

FUSE HOLDER

1шт.

51

71101814

SUPPORT

BRACKET

1шт.

52

10516471

LOCK WASHER

14шт.

53

75326735

SUPPORT

PLATE

1шт.

54

75326644

WIRE

HARNESS

1шт.

55

L124085

CONNECTOR, ELEC

CONNECTOR BLOCK

1шт.

56

L114612

COVER

1шт.

57

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

15шт.

58

75326645

WIRE

HARNESS, Includes: Ref. 59

1шт.

59

11056290

FUSE,125A, Maxi

FUSE

1шт.

60

253065A1

SPACER

1шт.

61

71101809

RELAY

RELAY

1шт.

62

REF

INSTRUCTION

ALTERNATOR (Figure 4-008)

1шт.

63

REF

INSTRUCTION

MOTOR starter (Figure 4-002)

1шт.

Выбрано товаров: 63
