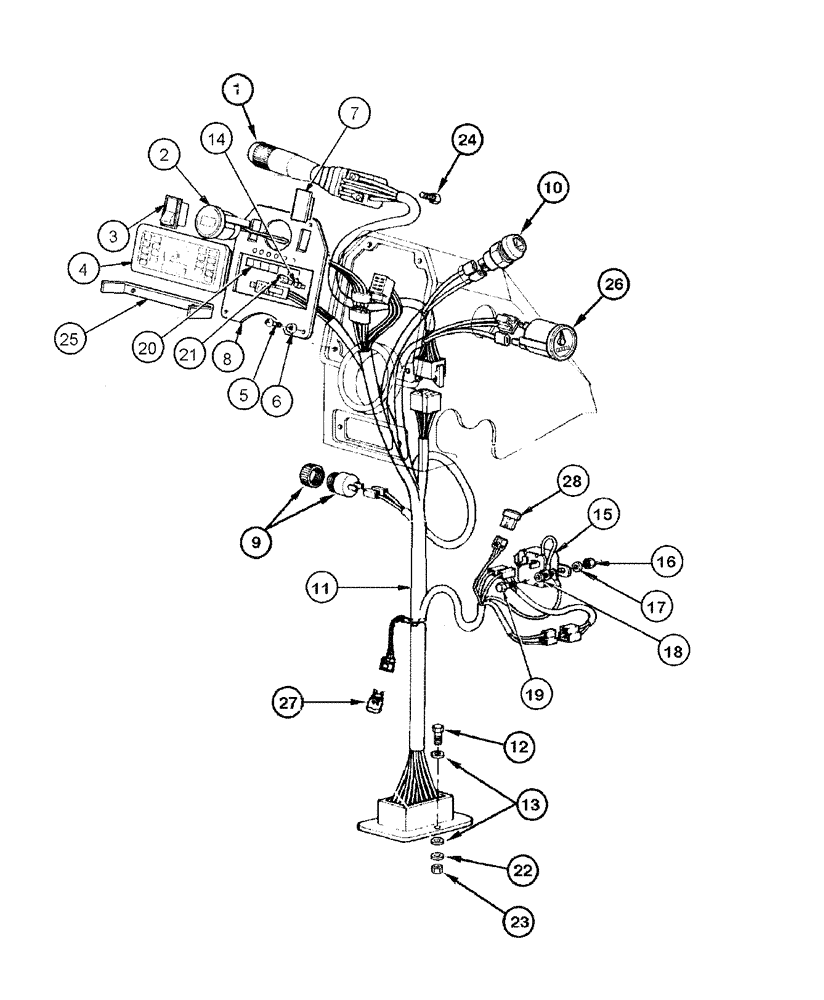

Запчасти Case 865 DHP (4-014) - ELECTRIC SYSTEM - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

73163234

SWITCH

LEVER

1шт.

2

73162493

INDICATOR

speed

1шт.

3

75251043

SWITCH

1шт.

4

75260774

INSTRUMENT PANEL

1шт.

5

13313217

SCREW,Pozidriv Oval Hd, Csk, M6 x 20mm, Cl 5.8, Full Thd

4шт.

6

85801991

WASHER,6.3mm OD x 18mm ID x 4mm Thk

4шт.

7

5151033

PLASTIC PLUG

COVER

1шт.

8

75264738

PLATE

PLATE

1шт.

9

75241340

HORN

1шт.

10

85803974

PUSH BUTTON

1шт.

11

75326328

ELECTRIC CABLE

HARNESS

1шт.

12

10372711

SCREW

BOLT

3шт.

13

70917458

WASHER

6шт.

14

75241301

POWER SOCKET

HOLDER bulb

6шт.

15

70663928

FLASHER UNIT

RELAY

1шт.

16

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

3шт.

17

70904203

LOCK WASHER

2шт.

18

12638101

WASHER,5.2mm ID x 14mm OD x 1mm Thk

4шт.

19

10978021

BOLT,Hex, M5 x 20mm, Cl 8.8, Full Thd

2шт.

20

75264740

DECAL

DECAL

1шт.

21

14143890

BULB

LAMP

6шт.

22

11195371

LOCK WASHER

3шт.

23

16101711

NUT,M3, Cl 8

3шт.

24

15644101

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 16mm

3шт.

25

75325514

PANEL

PLATE

1шт.

26

75220416

HOURMETER

1шт.

27

75322270

ELEC CONNECTOR

VARISTOR

1шт.

28

A187813

DIODE

CONNECTOR

1шт.
