(4-012) - ELECTRIC SYSTEM - MAIN

Запчасти Case 865 DHP (4-012) - ELECTRIC SYSTEM - MAIN (04) - ELECTRICAL SYSTEMS

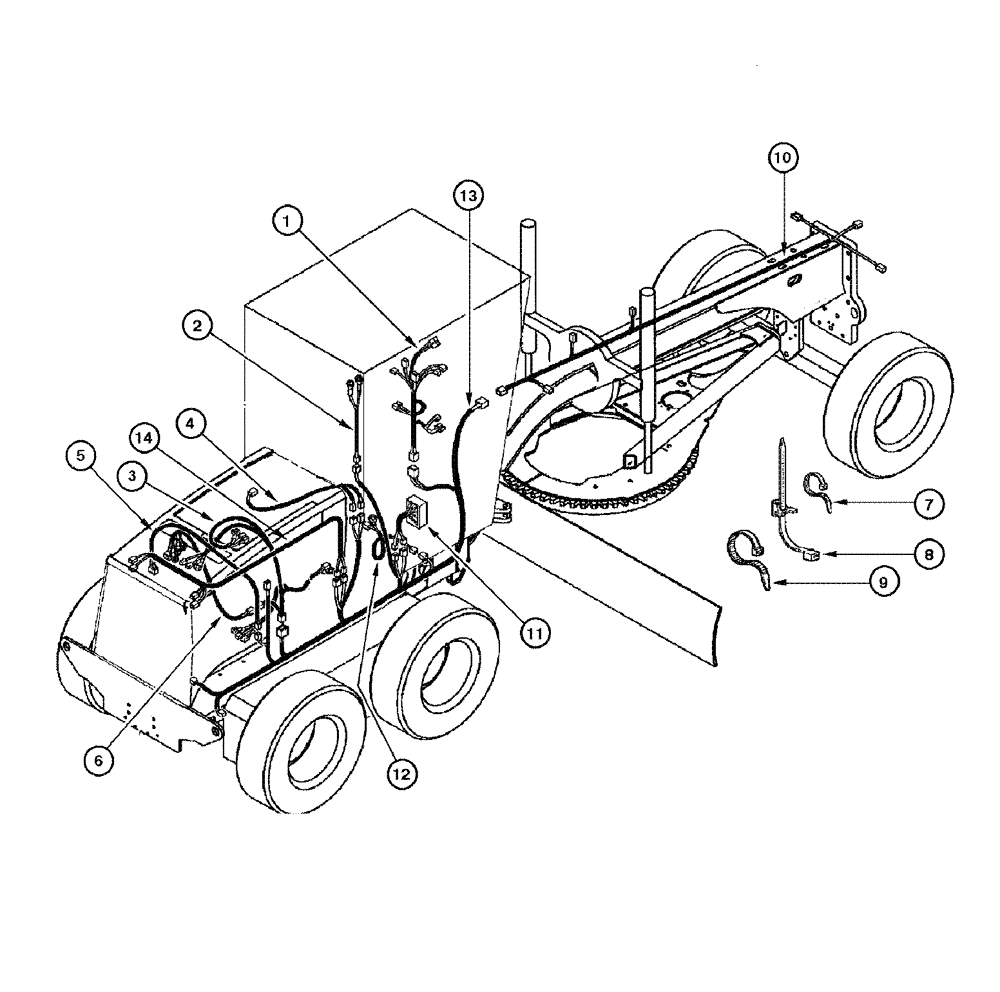

Схема запчастей Case 865 DHP - (4-012) - ELECTRIC SYSTEM - MAIN (04) - ELECTRICAL SYSTEMS
11
3
5
6
13
12
4
1
14
9
8
7
2
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

75326328

ELECTRIC CABLE

HARNESS steering column

1шт.

2

75249889

ELECTRIC CABLE

HARNESS parking brake

1шт.

3

75326324

WIRE

HARNESS engine

1шт.

4

75322517

ELECTRIC CABLE

HARNESS air compressor

1шт.

5

75322516

ELECTRIC CABLE

HARNESS A/C pressure sensor

1шт.

6

75326505

WIRE HARNESS

HARNESS transmission

1шт.

7

75201641

CLAMP

1шт.

8

75284071

CLAMP

1шт.

9

75201642

CLAMP

1шт.

10

75325317

HARNESS

front chassis

1шт.

11

75326326

WIRE

HARNESS panel console

1шт.

12

75253139

ELECTRIC CABLE

HARNESS hyd. reservoir

1шт.

13

75326327

WIRE

HARNESS main

1шт.

14

75320284

HARNESS

rear lights

1шт.
