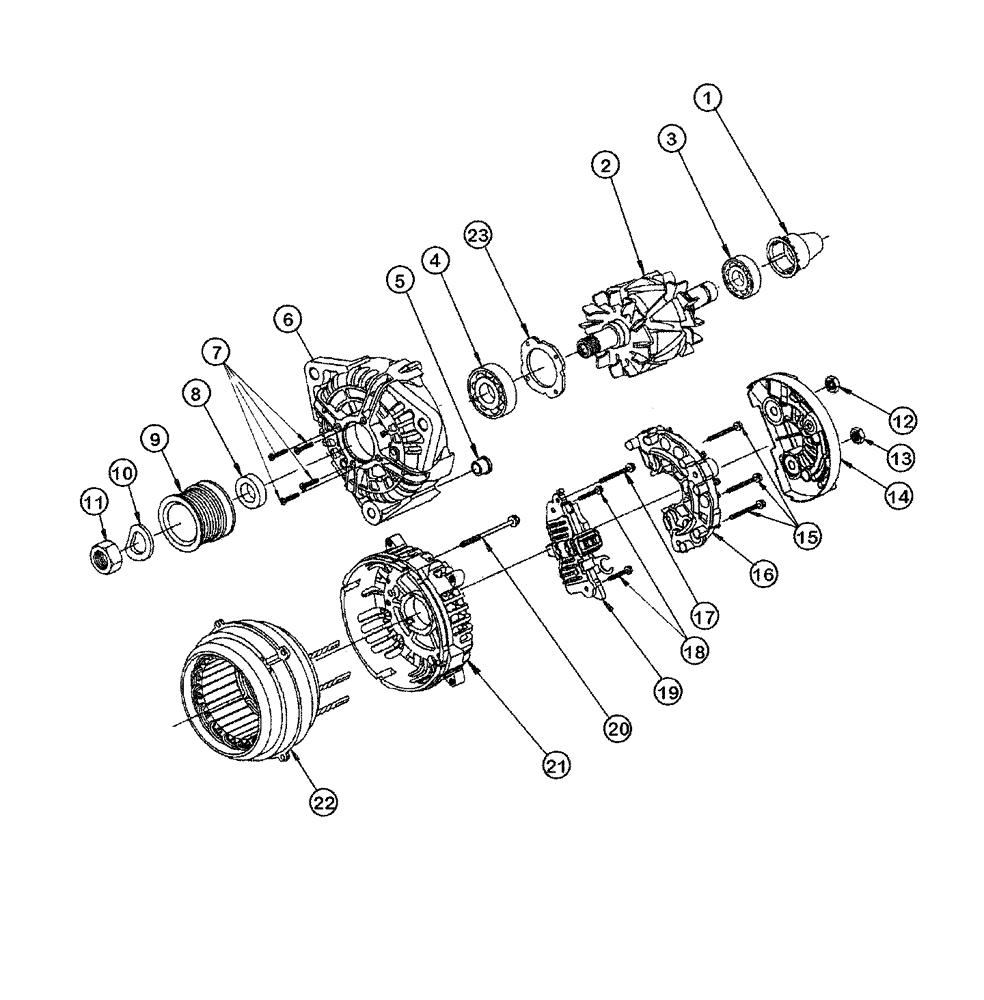

Запчасти Case 865 DHP (4-010) - ALTERNATOR 80A - COMPONENTS (04) - ELECTRICAL SYSTEMS

75261185

ALTERNATOR,24V, 80A, W/ Pulley

ALTERNATOR, Includes: Ref. 1 - 23

1шт.

75261185R

ALTERNATOR

865 DHP MOTOR GRADER ASN N5AF04007 (2/05-)

1шт.

75261185C

ALTERNATOR

Return Number

1шт.

1

71101872

COVER

COVER

1шт.

2

71101873

ROTOR

ROTOR, Includes: Ref. 3

1шт.

2

75261185R

ALTERNATOR

865 DHP MOTOR GRADER ASN N5AF04007 (2/05-), Reman for New PN 71101873

1шт.

2

75261185C

ALTERNATOR

Return Number

1шт.

3

87458832

BEARING

BEARING

1шт.

4

87458811

BEARING

BEARING

1шт.

5

71101874

BUSHING

BUSHING

1шт.

6

71101875

SUPPORT

BRACKET

1шт.

7

87458813

BOLT

BOLT

4шт.

8

87458814

SPACER

SPACER

1шт.

9

71101876

PULLEY

PULLEY

1шт.

10

71101877

WASHER

WASHER lock

1шт.

11

71101878

NUT

NUT

1шт.

12

87458827

NUT

NUT

1шт.

13

87458826

NUT

NUT

1шт.

14

71101879

GUARD

GUARD

1шт.

15

87458821

BOLT

BOLT

3шт.

16

71101880

RECTIFIER

RECTIRER

1шт.

17

87458824

BOLT

BOLT

1шт.

18

87458823

BOLT

BOLT

2шт.

19

71101881

REGULATOR

REGULATOR

1шт.

20

87458828

BOLT

BOLT

4шт.

21

71101882

SUPPORT

BRACKET

1шт.

22

71101883

ALTERNATOR STATOR

STATOR

1шт.

23

87458812

PLATE

PLATE

1шт.
