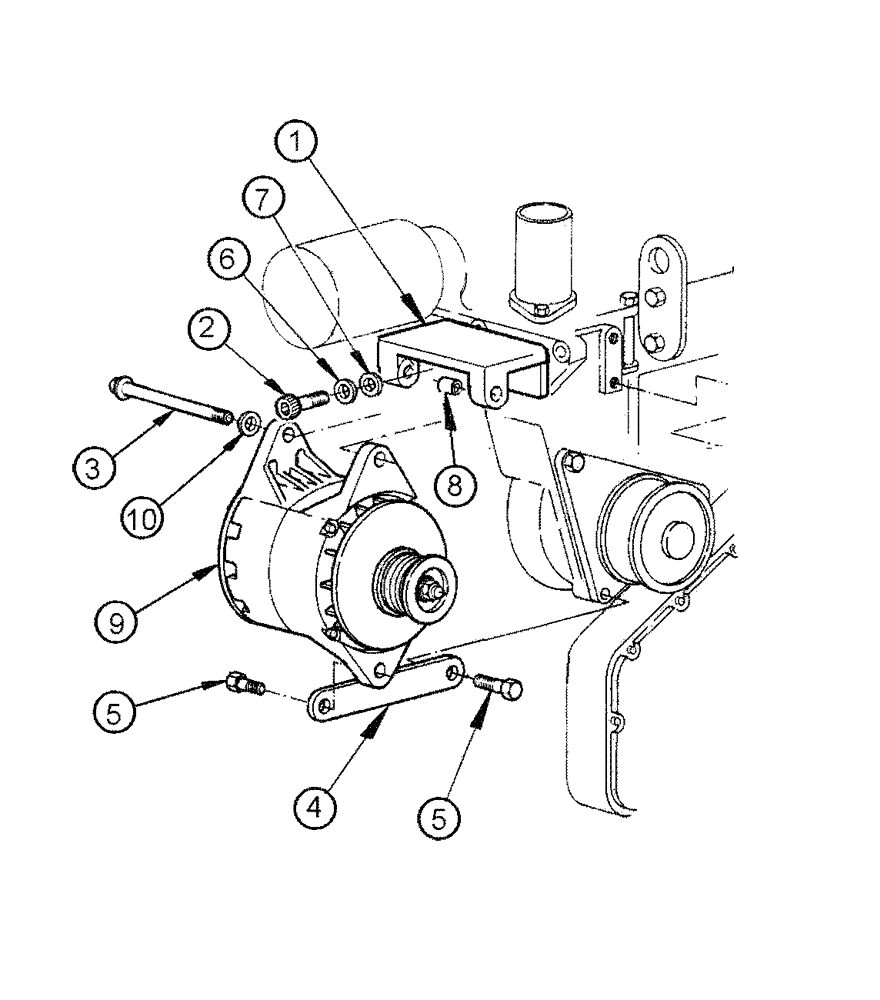

Запчасти Case 865 DHP (4-004) - ALTERNATOR 50A ASSEMBLY (04) - ELECTRICAL SYSTEMS

1

75324861

SUPPORT

BRACKET

1шт.

2

14306431

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

3

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

1шт.

4

75324879

PLATE

1шт.

5

75206638

SCREW

M10 x 1.50 x 25

2шт.

6

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

7

892-11008

LOCK WASHER,8mm ID

4шт.

8

75260708

SPACER,10.5mm ID x 20mm OD x 29mm L

BUSHING

1шт.

9

REF

INSTRUCTION

ALTERNATOR (Figure 4-008)

1шт.

10

12638601

WASHER,M10 x 18 x 2

1шт.
