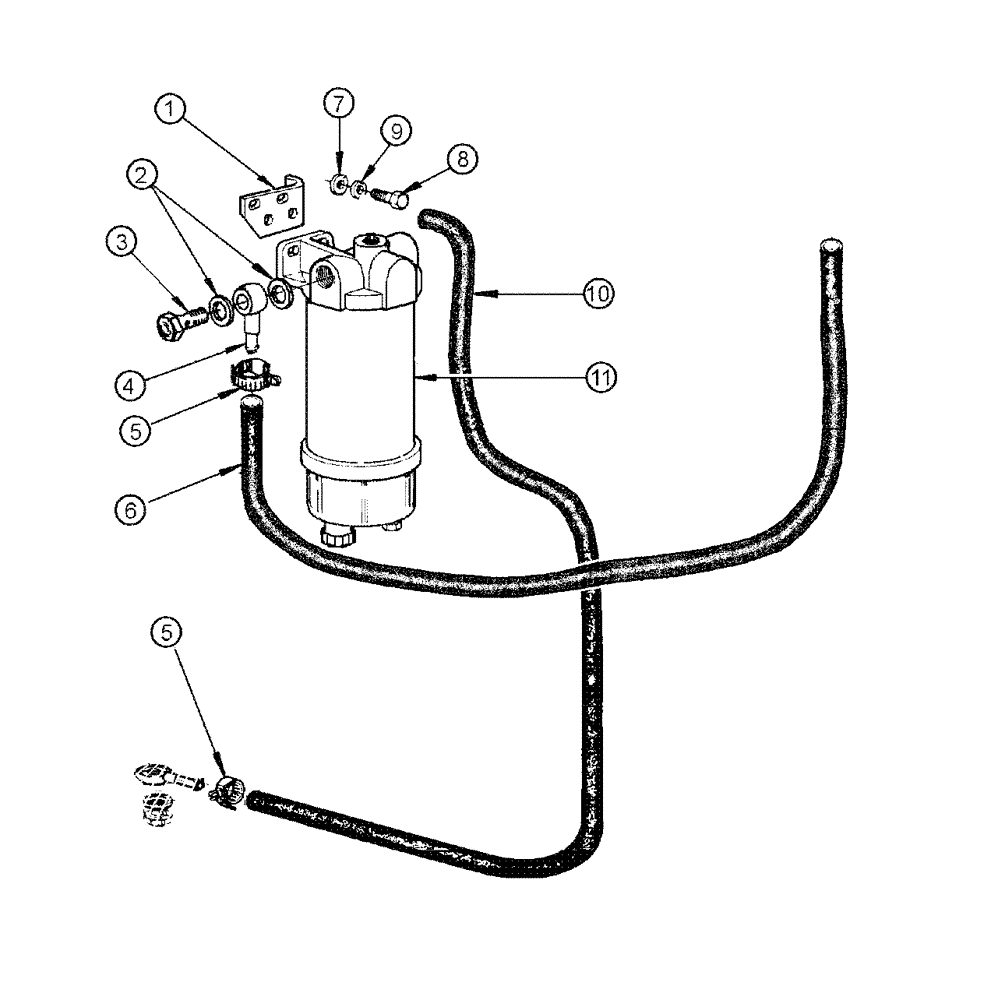

Запчасти Case 865 DHP (3-008) - FUEL FILTER - LINE (03) - FUEL SYSTEM

1

75263134

SUPPORT

BRACKET

1шт.

2

10279985

SEAL

RING seal

4шт.

3

10184317

BANJO BOLT,M14 x 1.5 x 27mm

CONNECTOR

2шт.

4

591685

HYD CONNECTOR

CONNECTOR

2шт.

5

12179490

HOSE CLIP

CLAMP

4шт.

6

75326415

FUEL HOSE,9.52 mm ID x 1800.00 mm

1шт.

7

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

8

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

9

10569371

LOCK WASHER

lock

4шт.

10

75326414

FUEL HOSE,9.52mm ID x 2100mm L

1шт.

11

REF

INSTRUCTION

FILTER (Figure 3-010)

1шт.
