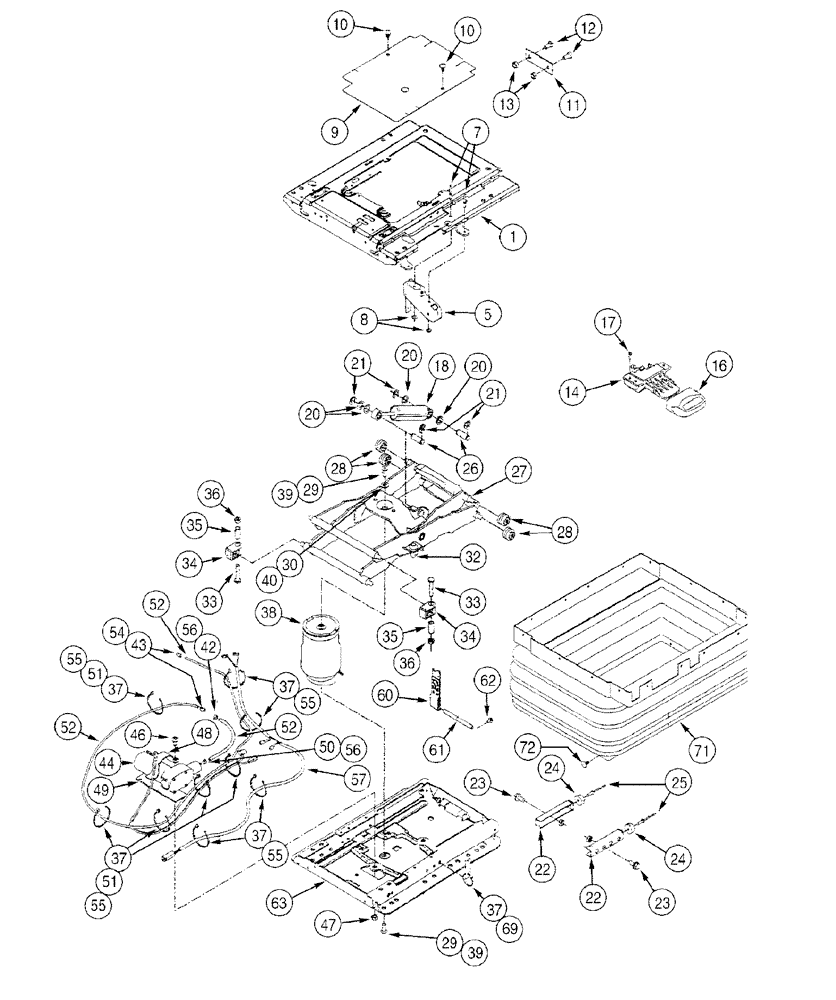

Запчасти Case 865 DHP (9-126) - SEAT ASSY. - SUSPENSION ASSY. (OPTIONAL) (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
399259A1
DRIVER SEAT
suspension
1шт.
398546A1
SUSPENSION
(not shown)
1шт.
345133A1
BASE
Includes: Ref. 1 - 75 and bar
1шт.
398547A1
BAR
Includes: Ref. 1 - 75
1шт.
1
345101A1
SET OF PARTS
PLATE seat, Includes: Ref. 2 - 8
1шт.
2
345100A1
PLUG
(not shown)
18шт.
3
345103A1
WASHER
(not shown)
1шт.
4
345113A1
ROLLER
(not shown)
2шт.
398142A1
LEVER
control, Includes: Ref. 5 - 8
1шт.
5
NSS
NOT SOLD SEPARAT
LEVER
1шт.
6
345100A1
PLUG
(not shown)
4шт.
7
345102A1
RIVET
2шт.
8
345103A1
WASHER
2шт.
9
345099A1
COVER
Includes: Ref. 10
1шт.
10
345100A1
PLUG
2шт.
11
345108A1
PLATE
1шт.
12
864-8016
HEX SOC SCREW,M8 x 16mm, Cl 8.8
2шт.
13
832-10408
NUT,M8 x 1.25, Cl 8.8
2шт.
14
NSS
NOT SOLD SEPARAT
LEVER
1шт.
15
345100A1
PLUG
(not shown)
4шт.
16
345106A1
HANDLE
1шт.
17
840-1516
SCREW,Pan, M5 x 16mm, Cl 4.8
3шт.
18
398150A1
SHOCK ABSORBER
KIT, Includes: Ref. 18 - 25
1шт.
18
NSS
NOT SOLD SEPARAT
ABSORBER shock
1шт.
19
345100A1
PLUG
8шт.
20
3402553R1
WASHER,M13
4шт.
21
895-18010
WASHER,10.5mm ID x 18mm OD x 1.6mm Thk
4шт.
345131A1
STOP
KIT, Includes: Ref. 22 - 25
1шт.
22
NSS
NOT SOLD SEPARAT
ANGLE-PLATE
2шт.
23
614-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
2шт.
24
60-3231T1
BUMPER
MOUNT
2шт.
25
345132A1
RIVET
2шт.
26
345098A1
PIN
2шт.
345109A1
KIT
Includes: Ref. 27 - 37
1шт.
27
NSS
NOT SOLD SEPARAT
ARM
1шт.
28
345113A1
ROLLER
4шт.
29
345112A1
SCREW,M8 x 20mm L
BOLT
2шт.
30
934058R1
WASHER,8.4mm ID x 15mm OD x 1.6mm Thk
1шт.
31
345100A1
PLUG
(not shown)
22шт.
32
60-3242T1
BUMPER
MOUNT
2шт.
33
345111A1
BOLT
BOLT
4шт.
34
345110A1
GUIDE
4шт.
35
345095A1
TUBE
SPACER
4шт.
36
60-4845T1
NUT
4шт.
37
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP
9шт.
38
345114A1
REPAIR KIT
Includes: Ref. 39 - 43 and spring
1шт.
38
NSS
NOT SOLD SEPARAT
SPRING
1шт.
39
345112A1
SCREW,M8 x 20mm L
BOLT
2шт.
40
934058R1
WASHER,8.4mm ID x 15mm OD x 1.6mm Thk
1шт.
41
345100A1
PLUG
(not shown)
8шт.
42
60-4895T1
CLAMP
NUT
1шт.
43
345118A1
ADAPTER
2шт.
44
345125A1
AIR COMPRESSOR KIT
Includes: Ref. 45 - 51 and air compressor
1шт.
44
NSS
NOT SOLD SEPARAT
COMPRESSOR air
1шт.
45
345100A1
PLUG
(not shown)
12шт.
46
864-8012
HEX SOC SCREW,M8 x 12mm, Cl 8.8
1шт.
47
832-10408
NUT,M8 x 1.25, Cl 8.8
1шт.
48
345120A1
SUPPORT
BRACKET
1шт.
49
345121A1
PLATE
1шт.
50
60-4895T1
CLAMP
NUT
1шт.
51
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP
5шт.
52
254782A1
KIT
KIT, Includes: Ref. 53 - 56 and hose
1шт.
52
NSS
NOT SOLD SEPARAT
HOSE
1шт.
53
345100A1
PLUG
(not shown)
12шт.
54
345118A1
ADAPTER
2шт.
55
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP
8шт.
56
60-4895T1
CLAMP
NUT
2шт.
57
345123A1
KIT
Includes: Ref. 58 and 59 and harness
1шт.
57
NSS
NOT SOLD SEPARAT
HARNESS
1шт.
58
345100A1
PLUG
(not shown)
12шт.
59
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP (not shown)
10шт.
60
345115A1
STRAP
1шт.
61
345116A1
PIN
1шт.
62
345117A1
SCREW
BOLT
1шт.
398148A1
BASE
PLATE, Includes: Ref. 63 - 70
1шт.
63
NSS
NOT SOLD SEPARAT
PLATE
1шт.
64
345100A1
PLUG
(not shown)
6шт.
65
60-4845T1
NUT
(not shown)
3шт.
66
345110A1
GUIDE
(not shown)
2шт.
67
345112A1
SCREW,M8 x 20mm L
BOLT (not shown)
1шт.
68
345113A1
ROLLER
(not shown)
2шт.
69
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP
6шт.
70
864-8012
HEX SOC SCREW,M8 x 12mm, Cl 8.8
(Not Shown)
1шт.
71
398149A1
COVER
1шт.
72
345100A1
PLUG
22шт.
73
3225292R1
PLUG
CLIP (not shown)
12шт.
74
398143A1
CABLE
ROPE (not shown)
1шт.
75
398146A1
CABLE
ROPE (not shown)
1шт.
300521A1
REPAIR KIT
parts
1шт.
