Запчасти Case 865 DHP (9-112) - SEAT ASSY. - UPPER SEAT ASSY. (09) - CHASSIS

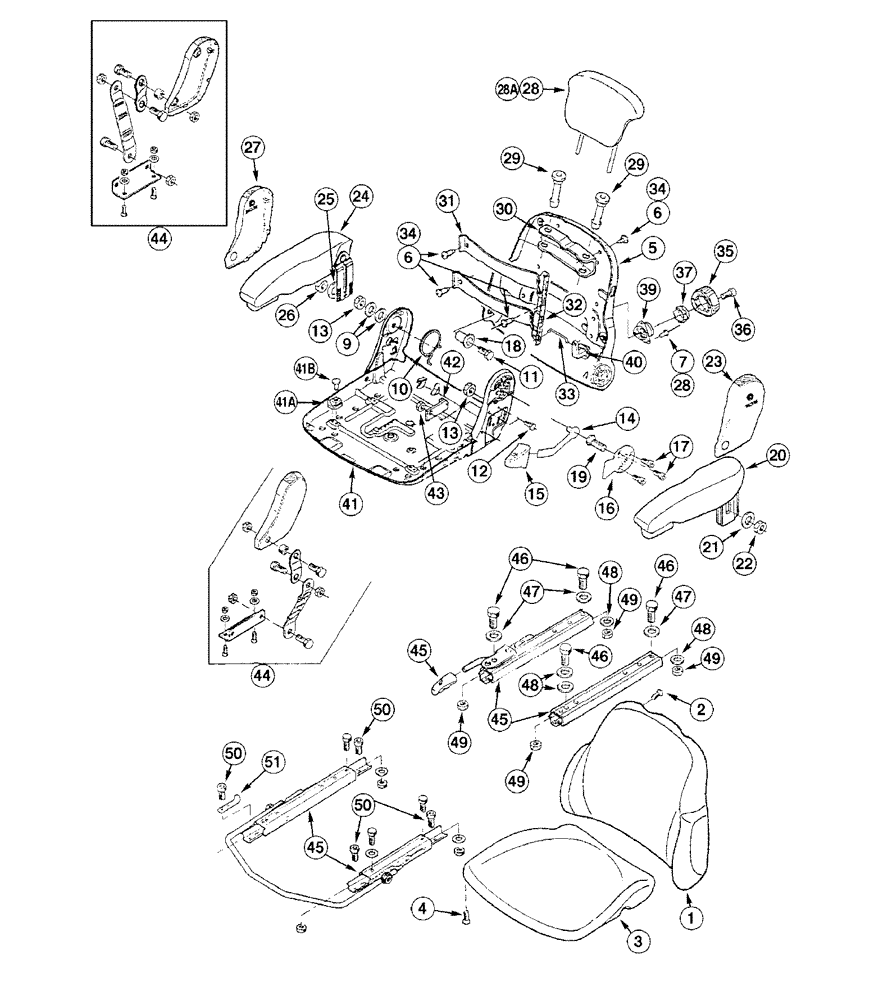

Схема запчастей Case 865 DHP - (9-112) - SEAT ASSY. - UPPER SEAT ASSY. (09) - CHASSIS
3
44
34
48
28
24
32
41a
45
49
9
29
43
6
50
46
17
13
1
37
10
46
4
7
31
27
39
49
49
6
21
34
35
16
25
30
47
44
42
48
49
48
33
11
12
28a
36
47
29
22
51
20
41b
50
5
13
15
26
45
46
14
18
28
40
41
19
50
45
2
23

Артикул

Название

Примечание

Количество

346300A1

SEAT

upper vinyl, Includes: Ref. 1 - 51 and cushion

1шт.

399261A1

DRIVER SEAT

vinyl, Includes: Ref. 1 - 51 and cushion

1шт.

399257A1

DRIVER SEAT

fabric, Includes: Ref. 1 - 51 and cushion

1шт.

347041A1

SEAT

upper fabric, Includes: Ref. 1 - 51 and cushion

1шт.

346301A1

CUSHION

backrest vinyl, Includes: Ref. 1 and 2

1шт.

347042A1

CUSHION

backrest fabric, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

SEAT BACK

1шт.

2

345726A1

SCREW

BOLT

4шт.

346302A1

CUSHION

seat vinyl, Includes: Ref. 3 and 4

1шт.

347043A1

CUSHION

seat fabric, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

CUSHION seat

1шт.

4

345726A1

SCREW

BOLT

4шт.

5

345764A1

BACKREST

PLATE cover, Includes: Ref. 6, 7 and cover

1шт.

5

NSS

NOT SOLD SEPARAT

COVER

1шт.

6

345731A1

SCREW

BOLT

7шт.

7

345771A1

RIVET

3шт.

9

345778A1

REPAIR KIT

seatback adjust, Includes: Ref. 9 - 19

1шт.

9

934058R1

WASHER,8.4mm ID x 15mm OD x 1.6mm Thk

2шт.

10

345743A1

SPRING

1шт.

11

345748A1

SCREW

BOLT

1шт.

12

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

2шт.

13

60-4845T1

NUT

2шт.

14

345749A1

LEVER

1шт.

15

345752A1

HANDLE

KNOB

1шт.

16

345753A1

PLATE

1шт.

17

345754A1

SCREW

BOLT

3шт.

18

345774A1

BUSHING

1шт.

19

345776A1

SCREW

BOLT

1шт.

20

345744A1

ARMREST

L.H., Includes: Ref. 21 and 22

1шт.

21

345729A1

WASHER

1шт.

22

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

23

345741A1

COVER

L.H.

1шт.

24

345755A1

ARMREST

Includes: Ref. 25 and 26

1шт.

25

345729A1

WASHER

R.H.

1шт.

26

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

27

345756A1

COVER

R.H.

1шт.

28

345727A1

SEAT HEADREST

Vinyl

1шт.

28

346303A1

SEAT HEADREST

HEADREST fabric

1шт.

29

345765A1

FERRULE

2шт.

30

345766A1

RETAINER

1шт.

345767A1

SUPPORT

KIT lumbar, Includes: Ref. 31 - 40

1шт.

31

345732A1

PLATE

2шт.

32

345733A1

PLATE

1шт.

33

345730A1

ROD

1шт.

34

345731A1

SCREW

BOLT

7шт.

35

345769A1

HANDLE

KNOB, Includes: Ref. 36

1шт.

36

345768A1

SCREW

BOLT

1шт.

37

345770A1

PAWL

1шт.

38

345771A1

RIVET

3шт.

39

345772A1

SUPPORT

BRACKET

1шт.

40

345773A1

LEVER

1шт.

41

345747A1

FRAME

STRUCTURE, Includes: Ref. 41A and 41B

1шт.

41a

345777A1

RIVET

4шт.

41b

345737A1

GUIDE

4шт.

42

345786A1

STOP

1шт.

43

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

44

345785A1

KIT

1шт.

45

345783A1

RAIL ASSY.

KIT seat

1шт.

46

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

47

345729A1

WASHER

3шт.

48

934058R1

WASHER,8.4mm ID x 15mm OD x 1.6mm Thk

4шт.

49

345728A1

NUT

4шт.

50

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

6шт.

51

346103A1

SUPPORT

BRACKET

1шт.

Выбрано товаров: 64
