(9-110) - SEAT - MOUNTING

Запчасти Case 865 DHP (9-110) - SEAT - MOUNTING (09) - CHASSIS

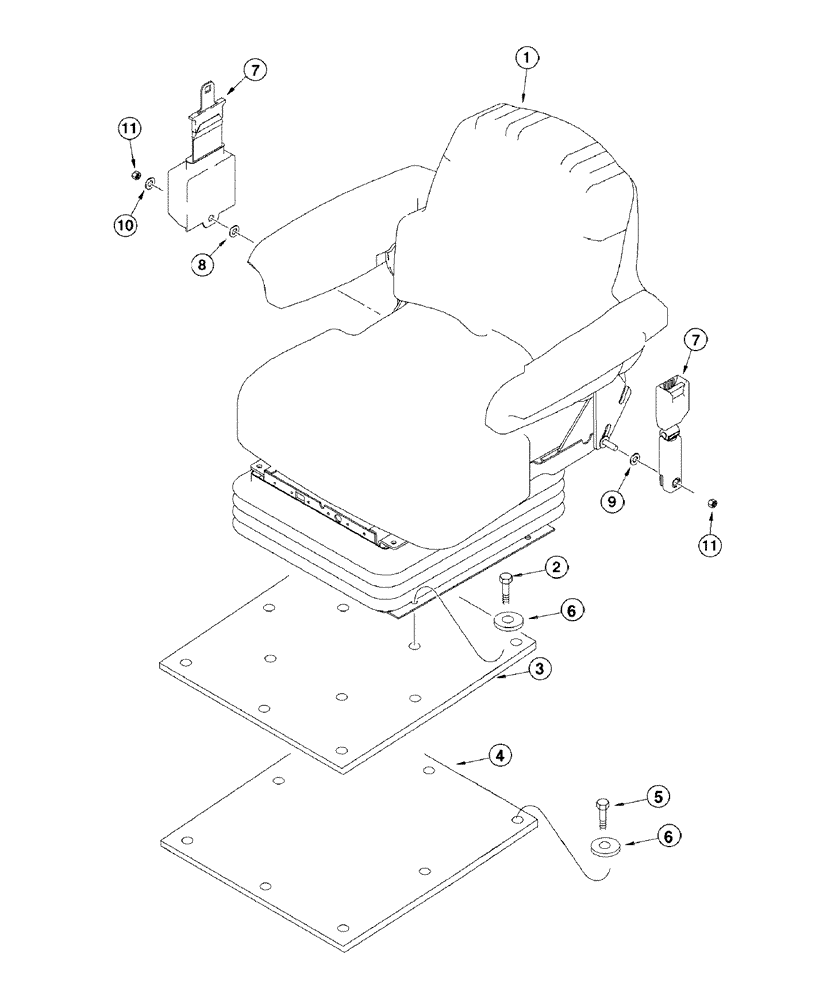

Схема запчастей Case 865 DHP - (9-110) - SEAT - MOUNTING (09) - CHASSIS
9
8
5
6
10
7
2
11
4
1
11
6
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

399257A1

DRIVER SEAT

fabric, (Figure 9-112)

1шт.

1

399259A1

DRIVER SEAT

suspens option, (Figure 9-120)

1шт.

1

399261A1

DRIVER SEAT

vinyl, (Figure 9-112)

1шт.

2

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

4шт.

3

75257663

PLATE

upper

1шт.

4

75281142

PLATE

lower

1шт.

5

16043131

BOLT,Hex, M8 x 1.25 x 14mm, Cl 10.9, Full Thd

8шт.

6

12642021

WASHER

8шт.

7

249116A1

SAFETY BELT ,50.80 mm W

Includes Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER

1шт.

10

495-11047

WASHER,7/16", SAE

1шт.

11

231-2447

LOCK NUT,7/16"-14, GB

2шт.

7

249117A1

SAFETY BELT ,76.20 mm W

Includes Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER

1шт.

10

495-11047

WASHER,7/16", SAE

1шт.

11

231-2447

LOCK NUT,7/16"-14, GB

2шт.
