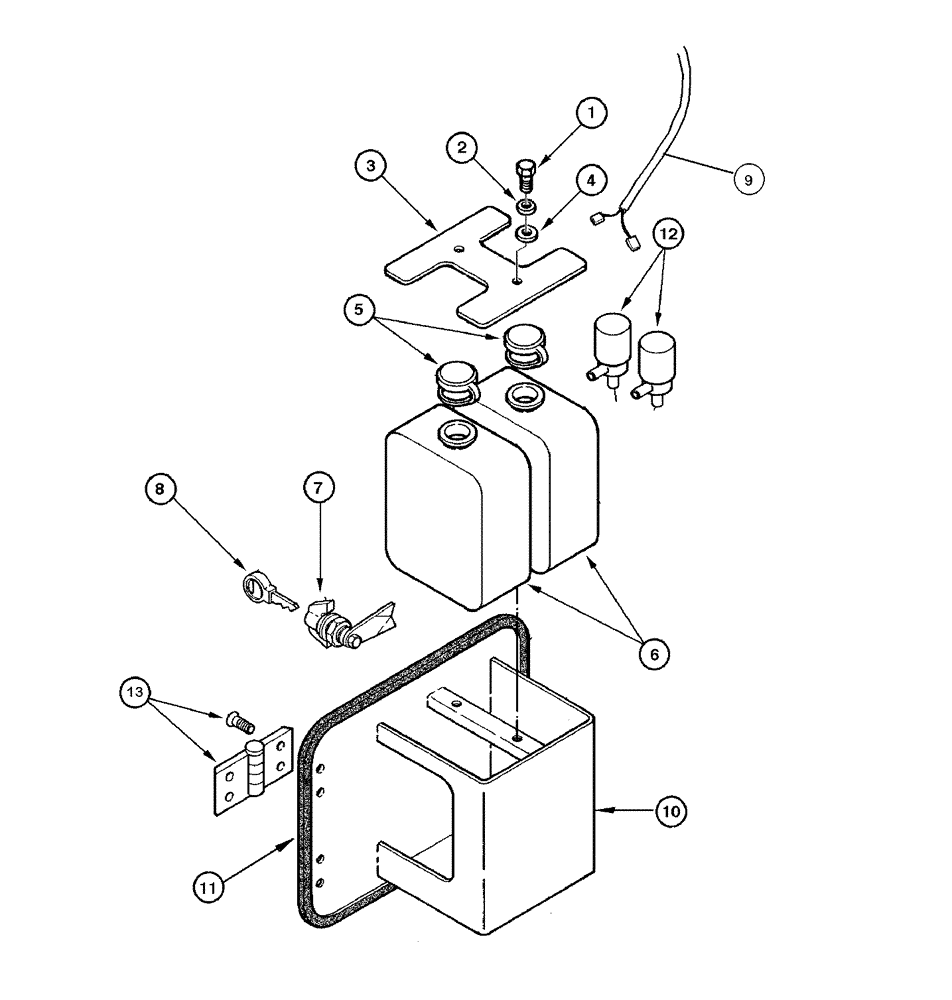

Запчасти Case 865 DHP (9-098) - RESERVOIR ASSEMBLY (09) - CHASSIS

1

10902231

SCREW,Hex, M6 x 16mm, Cl 10.9

2шт.

2

10516471

LOCK WASHER

2шт.

3

75324935

PLATE

1шт.

4

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

2шт.

5

75286905

COVER

2шт.

6

75286906

TANK

RESERVOIR

2шт.

7

75313710

LOCK

Includes: Ref. 8

1шт.

8

71100373

KEY

1шт.

9

71101792

WIRE HARNESS

HARNESS

1шт.

10

75324934

BRACKET

COVER, Includes: Ref. 11

1шт.

11

75313711

SEAL

GASKET

1шт.

12

75286901

PUMP,24V

2шт.

13

REF

INSTRUCTION

HINGE (Figure 9-074)

1шт.
