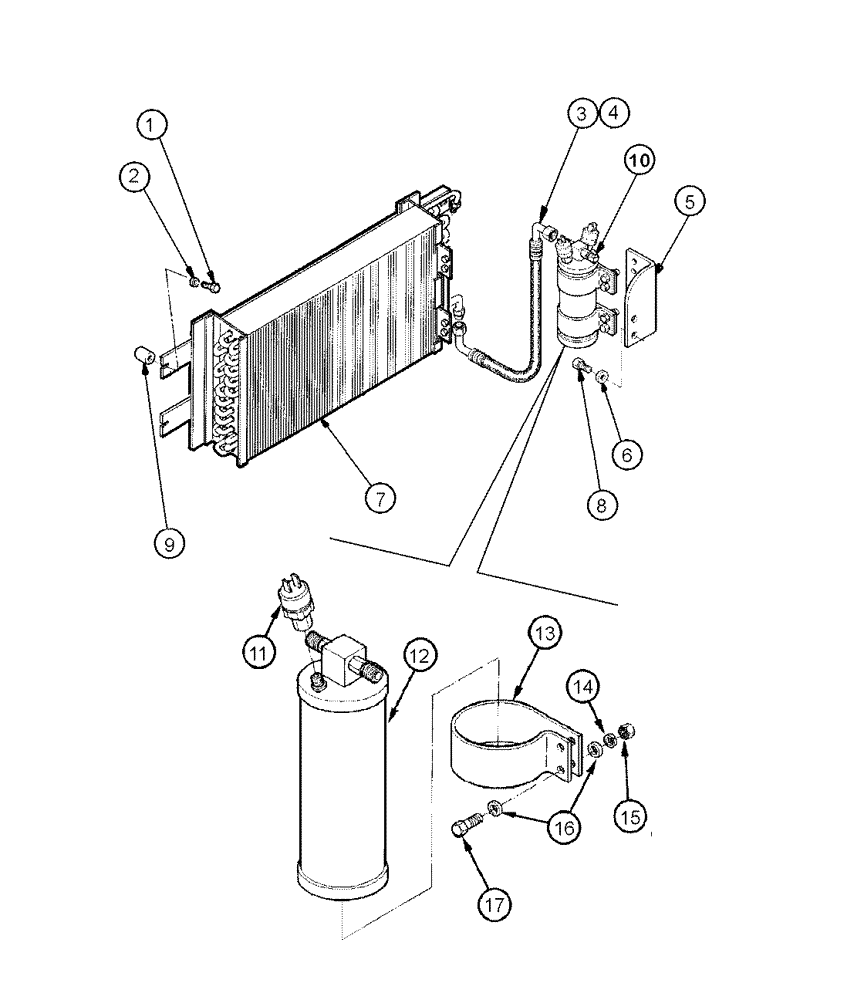

Запчасти Case 865 DHP (9-090) - AIR CONDITIONING - CONDENSER MOUNTING (09) - CHASSIS

1

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

4шт.

2

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

4шт.

3

75325658

HOSE

HOSE

1шт.

4

71101906

O-RING

O-RING

2шт.

5

75325588

BRACKET

BRACKET

1шт.

6

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

7

75325651

CONDENSER

1шт.

8

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

9

75223894

SPACER,12.4mm ID x 16mm OD x 40mm L

4шт.

10

75325647

RESERVOIR

CONTAINER, Includes: Ref. 11 - 17

1шт.

11

75313577

SENSOR

SENSOR

2шт.

12

75251998

FILTER

CONTAINER

1шт.

13

75261743

CLAMP

CLAMP

2шт.

14

71100882

WASHER

WASHER LOCK

4шт.

15

71100881

NUT

NUT

4шт.

16

71100883

WASHER

WASHER

8шт.

17

71100884

BOLT

BOLT

4шт.
