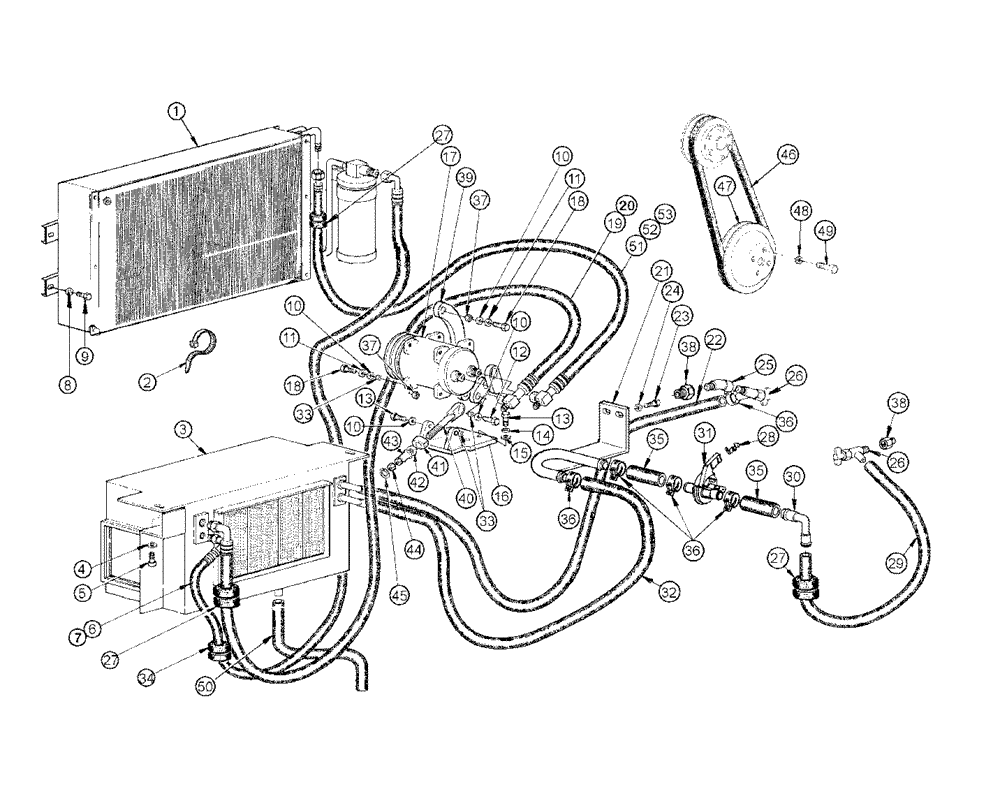

Запчасти Case 865 DHP (9-088) - AIR CONDITIONING - CIRCUIT AND ASSEMBLY (09) - CHASSIS

1

75325651

CONDENSER

1шт.

2

75201642

CLAMP

2шт.

3

75327119

EVAPORATOR

EVAPORATOR

1шт.

4

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

5

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

6

75257956

HOSE

Includes: Ref. 7

1шт.

7

75258843

O-RING

O-RING

2шт.

8

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

8шт.

9

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

8шт.

10

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

6шт.

11

10516879

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

lock

5шт.

12

15970931

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9

2шт.

13

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

5шт.

14

10516879

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

lock

3шт.

15

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

16

75326883

SUPPORT

BRACKET

1шт.

17

75327498

AIRCOND. COMPRESSOR

COMPRESSOR air

1шт.

17

75327498R

REMAN-A/C COMPRESSOR

865 DHP MOTOR GRADER - ASN N5AF04007, COMPRESSOR air (2/05-)

1шт.

17

75327498C

CORE-A/C COMPRESSOR

Return Number

1шт.

18

11343831

SCREW,Hex, M10 x 1.25 x 50mm, Cl 10.9

5шт.

19

75257954

HYDRAULIC HOSE

Includes: Ref. 20

1шт.

20

75258841

O-RING

O'RING

2шт.

21

75321436

TUBE,81, 60.5 mm Length

1шт.

22

75320969

HEATER HOSE,16.00 mm ID x 2020.00 mm

1шт.

23

11107231

SCREW,Hex, M10 x 50mm, Cl 10.9

2шт.

24

12642021

WASHER

2шт.

25

70910149

ELBOW

1шт.

26

301803R1

SHUT-OFF VALVE

2шт.

27

73150779

INSULATOR

INSULATOR

5шт.

28

1954626C1

SPRING CLIP

CLIP

1шт.

29

75320978

HOSE,15.88mm ID x 2700mm L

1шт.

30

75322881

TUBE,52, 36 mm Length

1шт.

31

1331087C1

HEATER VALVE

1шт.

32

75320965

HEATER HOSE,16.00 mm ID x 410.00 mm

1шт.

33

79114762

BUSHING,10.5mm ID x 16mm OD x 15mm L

1шт.

34

75321576

INSULATOR

INSULATOR

1шт.

35

75321442

HEATER HOSE,15.50 mm ID x 50.00 mm

2шт.

36

1954736C1

HOSE CLAMP,#24

9шт.

37

10791021

THIN NUT,Thin, M10 x 1.25, Cl 05

3шт.

38

70901835

BUSHING

CONNECTOR

2шт.

39

75325455

SUPPORT

BRACKET

1шт.

40

75325460

THREADED TIE-ROD

TIEROD

1шт.

41

75325462

SUPPORT

REST

1шт.

42

10520301

WASHER,18.4mm ID x 32mm OD x 4mm Thk

1шт.

43

75326810

LINK

HUB

1шт.

44

10790311

NUT

NUT

1шт.

45

11066676

SNAP RING,M18, Ext

1шт.

46

75327255

V-BELT,13.00 mm W x 1025.00 mm L

1шт.

47

75286359

PULLEY

1шт.

48

12638601

WASHER,M10 x 18 x 2

Not used

4шт.

49

75206638

SCREW

M10 x 1.50 x 25

4шт.

50

75255010

HOSE

1шт.

51

75257955

HYDRAULIC HOSE

Includes: Ref 52 and 53

2шт.

52

75258842

O-RING

O-RING

1шт.

53

75258841

O-RING

O-RING

1шт.
