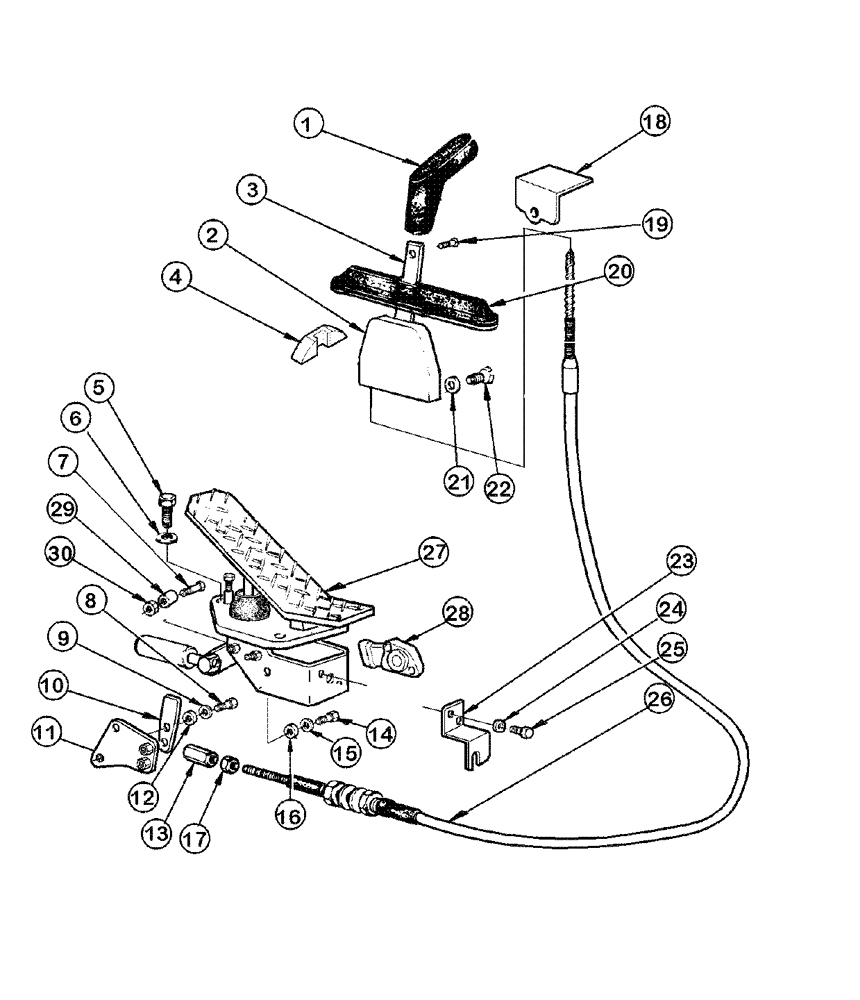

Запчасти Case 865 DHP (3-002) - THROTTLE AND LINKS (03) - FUEL SYSTEM

1

82002692

KNOB

1шт.

2

75325706

LEVER

LEVER, Includes: Ref. 3

1шт.

3

75325718

LEVER

ROD

1шт.

4

75322445

GUARD

LIMITER travel

1шт.

5

10903031

BOLT,Hex, M6 x 35mm, Cl 10.9

3шт.

6

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

3шт.

7

75327146

BALL STUD,Hex, M6 x 1 x 32mm

BALL PIN BOLT

1шт.

8

70928798

SCREW

BOLT

1шт.

9

70630753

WASHER

1шт.

10

75327126

LEVER

LEVER

1шт.

11

75327140

PLATE

BRACKET

1шт.

12

75326991

BUSHING,9.53mm ID x 12.71mm OD x 5.2mm L

BUSHING

1шт.

13

75326372

ADAPTER,1/4" - 28

ADAPTER

1шт.

14

10445021

BOLT,Hex, M4 x 20mm, Cl 8.8, Full Thd

1шт.

15

10519201

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

1шт.

16

11195371

LOCK WASHER

2шт.

17

70911040

NUT

2шт.

18

75323478

PLATE

PLATE

1шт.

19

13275811

SCREW,Phil Pan Hd, M6 x 8mm

1шт.

20

85803380

BOOT

DUST

1шт.

21

70928190

WASHER

4шт.

22

10384511

SCREW,Slotted Countersunk, M5 x 30mm

BOLT

4шт.

23

75327124

PLATE

BRACKET

1шт.

24

12574521

LOCK NUT,M10 x 1.25, Cl 10

2шт.

25

14233431

BOLT,Hex, M10 x 1.25 x 25mm, Cl 10.9, Full Thd

BOLT

2шт.

26

75326282

CABLE,1300mm L

ROPE

1шт.

27

75262889

PEDAL

PEDAL, Includes: Ref. 28

1шт.

28

73164376

KIT

KIT sensor

1шт.

29

75327147

SPACER

BUSHING

1шт.

30

12575421

NUT

NUT

1шт.
