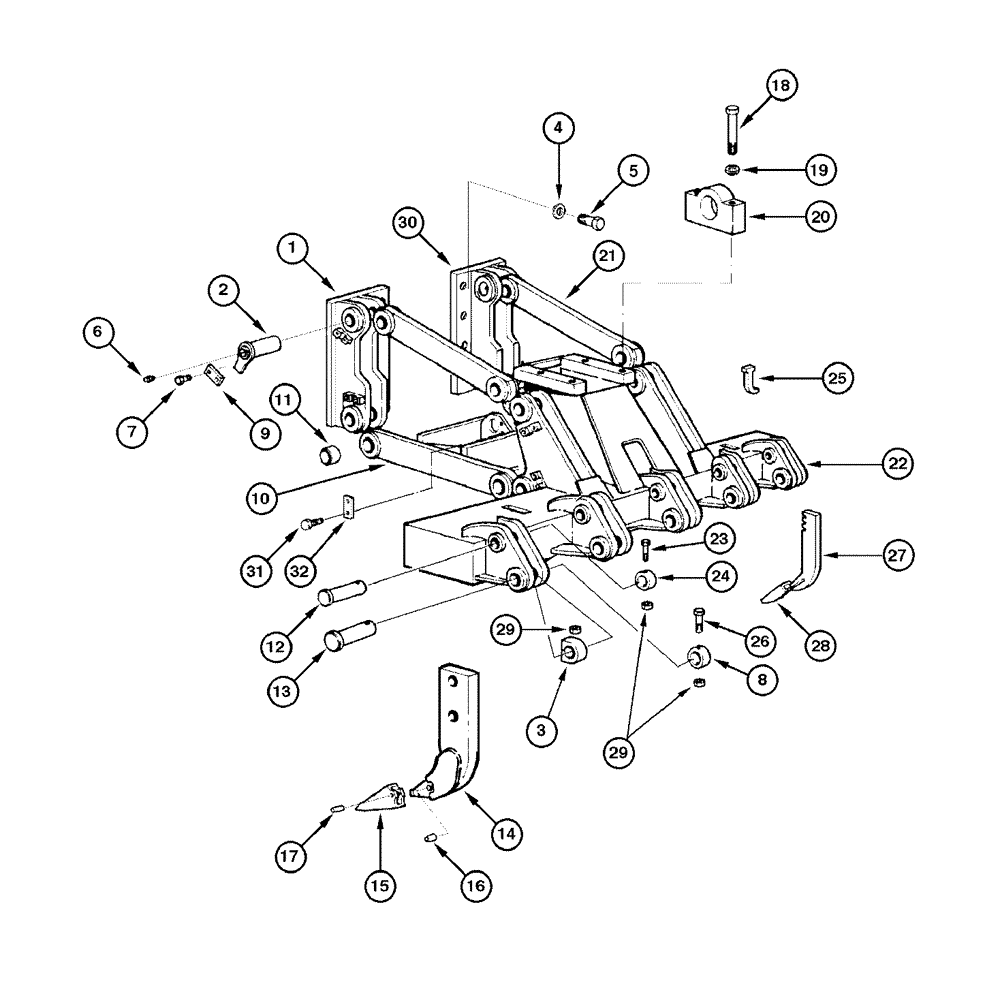

Запчасти Case 865 DHP (9-032) - RIPPER ASSEMBLY (09) - CHASSIS

1

73162607

SUPPORT

BRACKET

1шт.

2

75216516

PIN,49.99mm OD x 202.5mm L

8шт.

3

75216517

SUPPORT

BRACKET

5шт.

4

70928370

WASHER,1.06" ID x 2.25" OD x 0.25" Thk

12шт.

5

15997231

BOLT,Hex, M24 x 2 x 65mm, Cl 10.9, Full Thd

12шт.

6

13407211

LUBE NIPPLE,M10 x 1

9шт.

7

15540331

BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

16шт.

8

75216510

COLLAR CLAMP,51mm ID x 65mm OD x 25mm L

3шт.

9

75216512

LOCK

PLATE

8шт.

10

75321813

RIPPER

FRAME, Includes: Ref. 11

1шт.

11

75216487

BUSHING,50.2mm ID x 60.1mm OD x 43mm L

16шт.

12

75216513

PIN

3шт.

13

75216509

PIN

3шт.

14

75216444

RIPPER TOOTH

Includes: Ref. 15 - 17

5шт.

15

8282867

RIPPER TOOTH

5шт.

16

8282870

SLEEVE

5шт.

17

8282869

ROLL PIN

5шт.

18

15861731

BOLT,Hex, M24 x 2 x 130mm, Cl 10.9

4шт.

19

10517679

LOCK WASHER,24.3mm ID x 38.3mm OD x 5.5mm Thk

lock

4шт.

20

8299560

SUPPORT

REST

2шт.

21

73162584

LEVER

2шт.

22

73162593

BAR

STRUCTURE ripper

1шт.

23

11113631

SCREW,Hex, M12 x 70mm, Cl 10.9

3шт.

24

75216511

SPACER

RING

3шт.

25

73125907

KEY

9шт.

26

11113731

SCREW,Hex, M12 x 75mm, Cl 10.9

3шт.

27

75250226

SHANK

TOOTH ripper

9шт.

28

70062160

RIPPER TOOTH

TIP shank

9шт.

29

10719321

NUT,M12 x 1.75, Cl 10

6шт.

30

73162606

SUPPORT

BRACKET

1шт.

31

14254231

LOCK BOLT,Hex, M14 x 1.5 x 25mm, Cl 10.9, Full Thd

BOLT

2шт.

32

8270126

PLATE

2шт.
