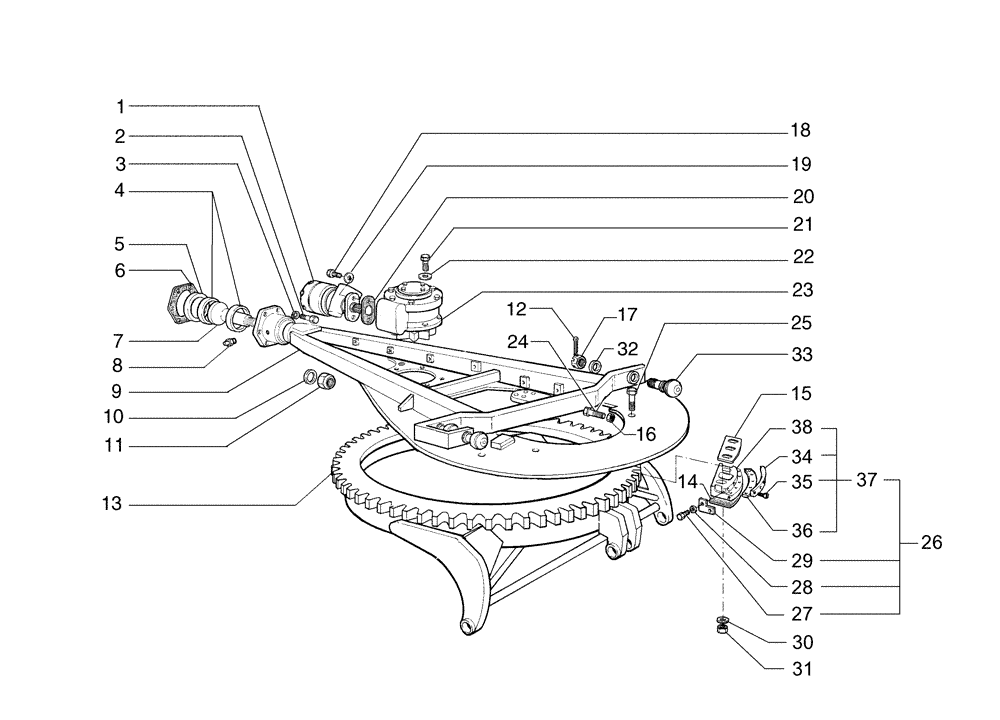

Запчасти Case 865 DHP (9-018) - CIRCLE ASSEMBLY (09) - CHASSIS

1

REF

INSTRUCTION

MOTOR hydraulic

1шт.

2

15835231

BOLT,Hex, M16 x 1.5 x 70mm, Cl 10.9

8шт.

3

10517271

LOCK WASHER,16.2mm ID x 27.7mm OD x 4mm Thk

8шт.

4

73130017

BUSHING,120.1mm ID x 152.32mm OD x 33.53mm L

2шт.

5

73125534

SPACER,127mm ID x 151.64mm OD x 36.83mm L

1шт.

6

70673457

SHIM

20шт.

7

73125531

DRAWBAR

BALL

1шт.

8

70912497

HYD CONNECTOR

FITTING grease

1шт.

9

75322240

HITCH

DRAWBAR

1шт.

10

70927662

WASHER,1.81" ID x 2.75" OD x 0.38" Thk

1шт.

11

70921374

NUT

1шт.

12

70900808

COTTER PIN,1/8" x 1 1/2"

3шт.

13

75322338

KIT

CIRCLE

1шт.

14

73125482

PLATE

4шт.

15

73125483

SHIM,111.3mm OD x 0.78mm Thk

40шт.

16

70901421

NUT

8шт.

17

75326480

NUT

NUT

3шт.

18

70922508

SCREW

BOLT

2шт.

19

70928460

WASHER

2шт.

20

70651322

GASKET,0.76mm Thk

1шт.

21

15984131

BOLT,Hex, M18 x 1.5 x 45mm, Cl 10.9, Full Thd

BOLT

6шт.

22

70927382

WASHER

6шт.

23

REF

INSTRUCTION

REDUCTION GEAR

1шт.

24

73125522

BOLT,Hex, 7/8" - 9 x 3-1/2"

BOLT

8шт.

25

70929092

SCREW

BOLT

8шт.

26

75248940

GUIDE

4шт.

27

16323531

SCREW,M10 x 1.25 x 30mm

BOLT

16шт.

28

70930370

WASHER,0.44" ID x 0.69" OD x 0.11" Thk

16шт.

29

75248934

PLATE

8шт.

30

70929704

WASHER

8шт.

31

70053994

NUT

8шт.

32

75326490

WASHER,26.9mm ID x 63.5mm OD x 4.2mm Thk

WASHER

3шт.

33

75326511

BALL STUD,1" - 14

BALL

3шт.

34

73125481

WEAR STRIP

PLATE

4шт.

35

73126330

HEX SOC SCREW,FLAT, 3/8" - 16 x 1"

BOLT

40шт.

36

73125480

SUPPORT

BRACKET

4шт.

37

75248931

GUIDE

4шт.

38

75267162

GUIDE

4шт.
