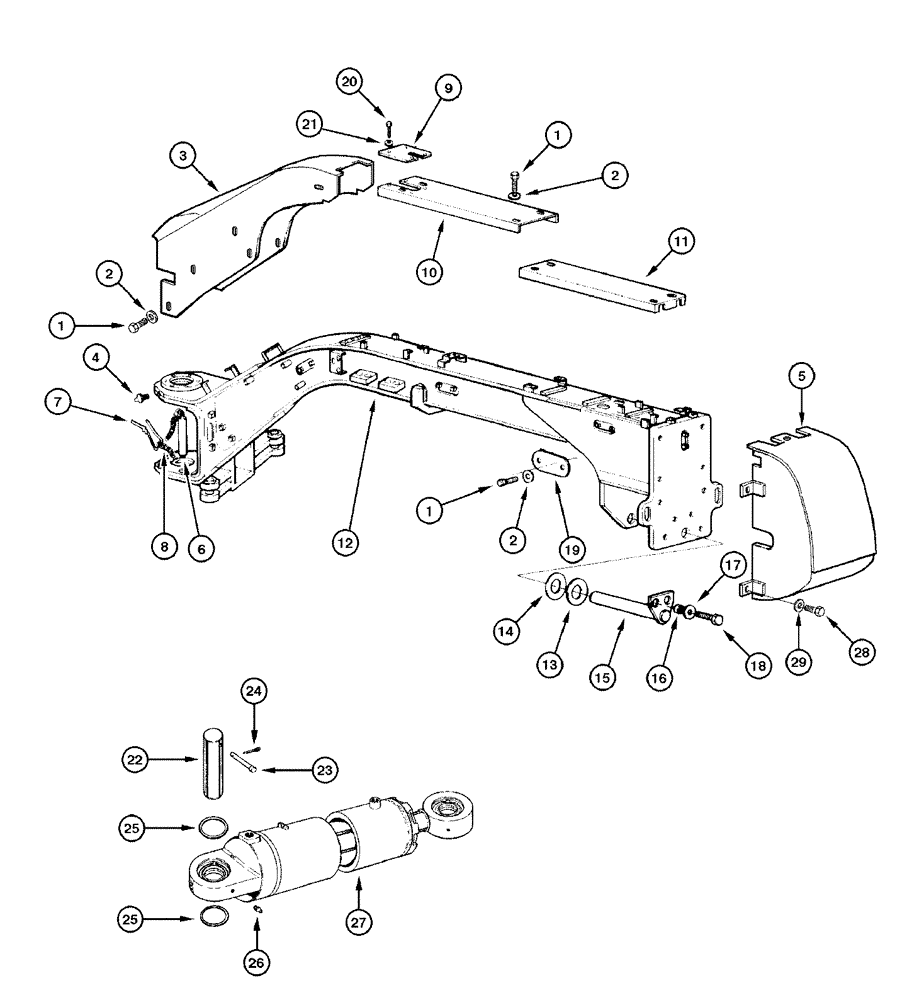

Запчасти Case 865 DHP (9-002) - FRONT CHASSIS (09) - CHASSIS

1

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

26шт.

2

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

26шт.

3

75324216

GUARD

GUARD

1шт.

4

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

FITTING grease

2шт.

5

73164000

GUARD

1шт.

6

75281140

PIN

Includes: Ref. 7 and 8

2шт.

7

8268534

ROLL PIN,7mm OD

spring

2шт.

8

4955502

CHAIN

2шт.

9

73164010

MOUNTING PLATE

PLATE

1шт.

10

75253820

GUARD

GUARD

1шт.

11

75253822

GUARD

GUARD

1шт.

12

75257295

CHASSIS

FRAME front main

1шт.

13

73135173

WASHER,52.32mm ID x 101.6mm OD x 1.52mm Thk

SHIM

1шт.

14

73135174

WASHER,52.32mm ID x 101.6mm OD x 3.42mm Thk

SHIM

1шт.

15

75249866

SHAFT

1шт.

16

73153515

SPACER,13mm ID x 25.4mm OD x 14.5mm L

2шт.

17

70930850

WASHER,0.53" ID x 1.5" OD x 0.25" Thk

2шт.

18

11113231

BOLT,Hex, M12 x 50mm, Cl 10.9

2шт.

19

75280721

COVER

3шт.

20

10902131

SCREW,Hex, M6 x 14mm, Cl 10.9, Full Thd

4шт.

21

12644421

WASHER,6.15mm ID x 15mm OD x 1mm Thk

4шт.

22

75213765

PIN,38.08mm OD x 181mm L

4шт.

23

75213766

PIN,10.71mm OD x 88mm L

cotter

4шт.

24

70900805

COTTER PIN,1/8" x 3/4"

4шт.

25

75213767

SHIM

1шт.

26

70914465

LUBE NIPPLE

FITTING grease

4шт.

27

75213774

CYLINDER,Double Acting, 31mm Rod, 377mm Stroke

1шт.

27

75213774R

REMAN-HYD CYLINDER

865 DHP MOTOR GRADER ASN N5AF04007 (2/05-)

1шт.

27

75213774C

CORE-HYD CYLINDER

Return Number

1шт.

28

70922475

BOLT

BOLT

4шт.

29

70677012

WASHER,20.64mm ID x 44.45mm OD x 7.94mm Thk

4шт.
