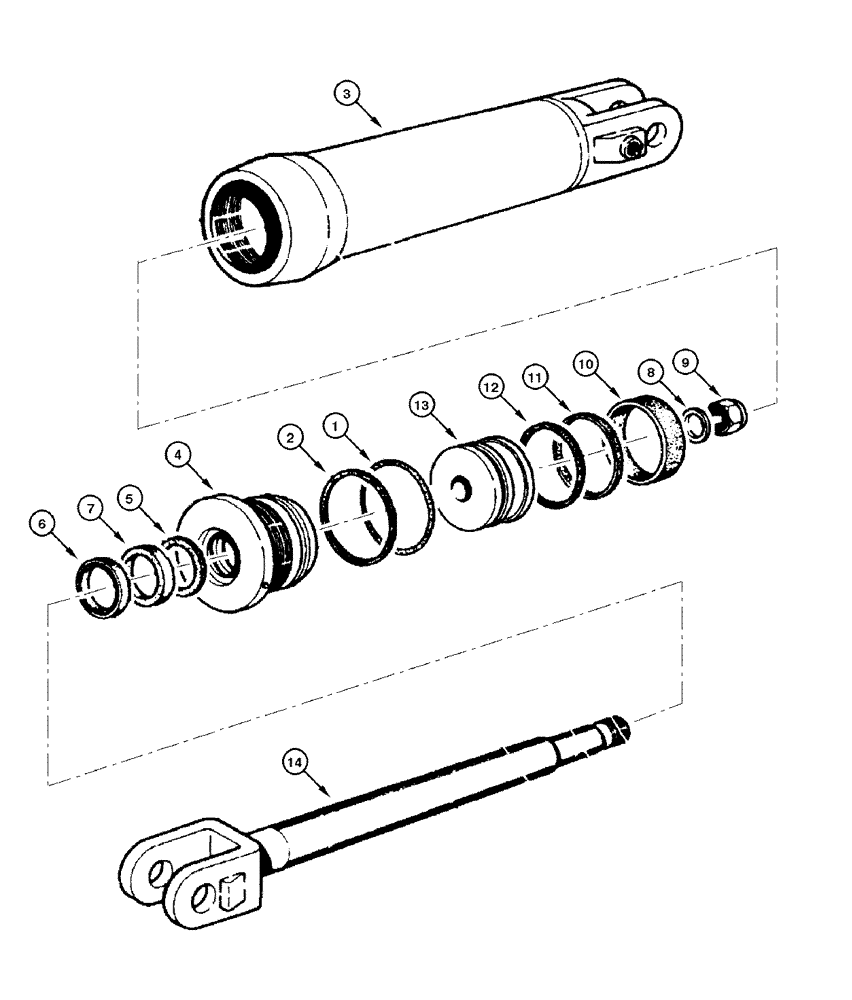

Запчасти Case 865 DHP (8-120) - CYLINDER - SCARIFIER (08) - HYDRAULICS

73067421

CYLINDER,Double Acting, 50.8mm Rod, 311.15mm Stroke

scarifier, Includes: Ref. 1 - 14

1шт.

73067421R

REMAN-HYD CYLINDER

865 DHP MOTOR GRADER ASN N5AF04007 (2/05-)

1шт.

73067421C

CORE-HYD CYLINDER

Return Number

1шт.

1

70927242

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

1шт.

2

70926629

RING

1шт.

3

73067551

CYLINDER,104.39mm Bore Dia

LINER

1шт.

4

73067593

PISTON SWIVEL HEAD

SWIVEL HEAD PISTON

1шт.

5

73067518

RING,50.42mm ID x 64.85mm OD x 2.92mm Thk

1шт.

6

73053637

MUDSCRAPER RING

SEAL

1шт.

7

73067915

SEAL,50.8mm ID x 63.5mm OD x 9.53mm Thk

RING seal

1шт.

8

73055413

SPACER

1шт.

9

73073210

LOCK NUT

1шт.

10

73055430

LOCKING RING

1шт.

11

73055431

LOCKING RING

1шт.

12

70927343

LOCKING RING

1шт.

13

73067547

PISTON

1шт.

14

73067546

PISTON

ROD

1шт.

15

73159181

KIT

repair, Includes: Ref. 1, 2, 5, 6, 7, 10, 11 and 12

1шт.
