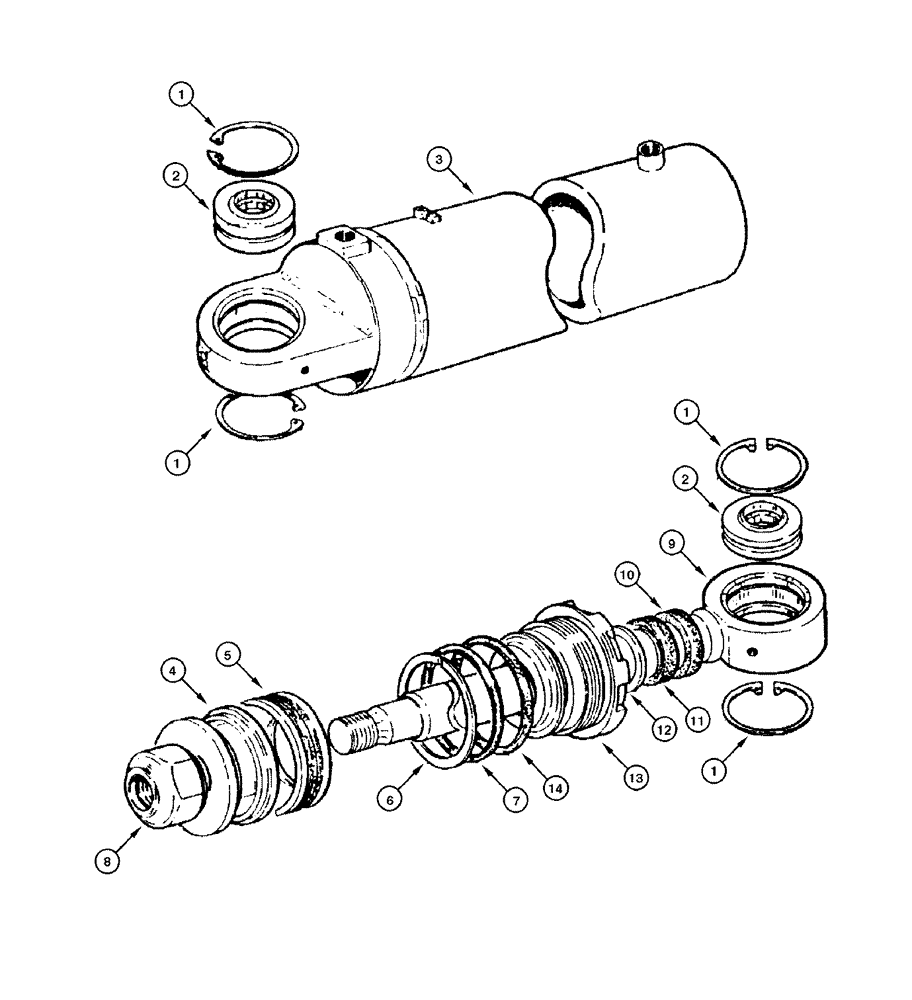

Запчасти Case 865 DHP (8-116) - CYLINDER - LINK LH/RH (08) - HYDRAULICS

75213774

CYLINDER,Double Acting, 31mm Rod, 377mm Stroke

link, R.H., Includes: Ref. 1 - 14

1шт.

75213774R

REMAN-HYD CYLINDER

865 DHP MOTOR GRADER ASN N5AF04007, link, R.H. (2/05-)

1шт.

75213774C

CORE-HYD CYLINDER

Return Number

1шт.

75213779

CYLINDER,Double Acting, 31mm Rod, 377mm Stroke

link, L.H., Includes: Ref. 1 - 14

1шт.

75213779R

REMAN-HYD CYLINDER

865 DHP MOTOR GRADER ASN N5AF04007, link, L.H. (2/05-)

1шт.

75213779C

CORE-HYD CYLINDER

Return Number

1шт.

1

11061076

SNAP RING,M62, Int

8шт.

2

70928851

BEARING ASSY

BUSHING

4шт.

3

75213542

LINER, ENGINE CYLIND,585 mm Length

TUBE, R.H.

1шт.

3

75213543

LINER, ENGINE CYLIND,585 mm Length

TUBE, L.H.

1шт.

4

79038730

PISTON

2шт.

5

8291506

SEALING RING

SEALRING SEAL

2шт.

6

8297295

RING,73.8mm ID x 80mm OD x 1.5mm Thk

2шт.

7

14465180

O-RING,72.62mm ID x 3.53mm Width

2шт.

8

8281325

NUT

2шт.

9

75213768

ROD,45mm OD x 533mm L

2шт.

10

8288822

SEAL

SEAL

2шт.

11

8297294

GASKET

SEAL

2шт.

12

8297296

RING

seal

2шт.

13

75220934

BASE PLATE

HEAD

2шт.

14

14465480

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

2шт.

75209587

SEAL

repair, Includes: Ref. 5, 6, 7, 10, 11, 12 and 14

1шт.
