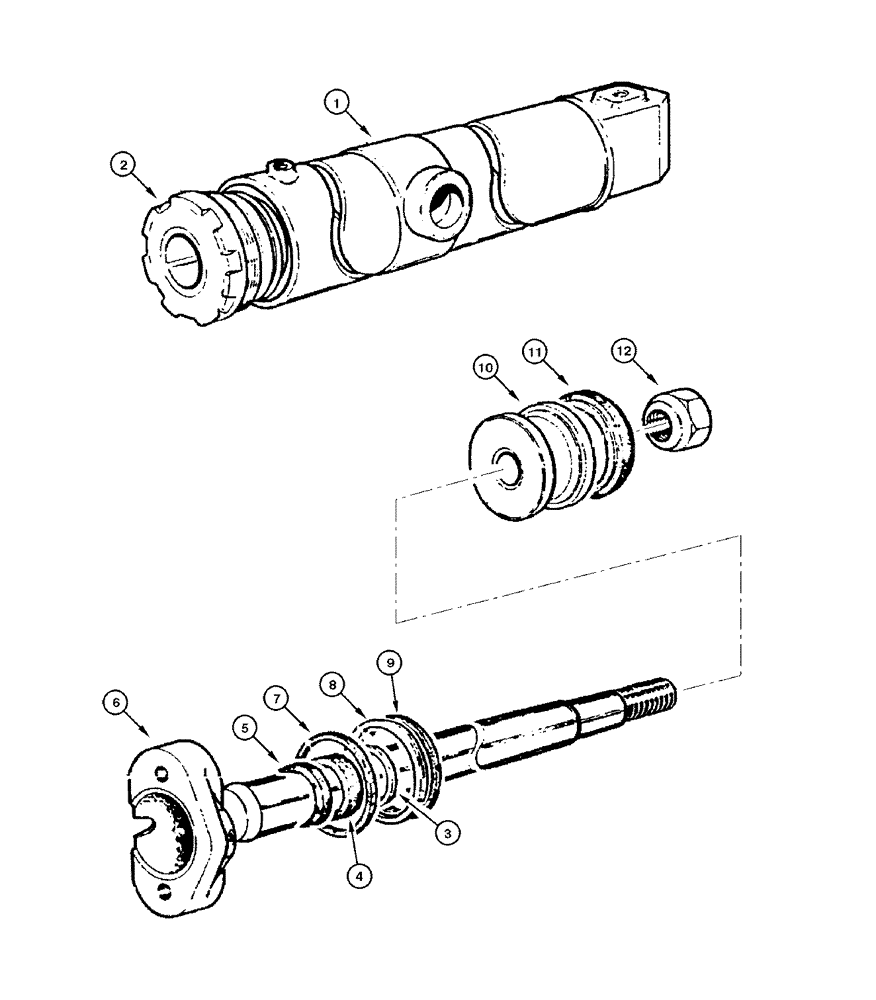

Запчасти Case 865 DHP (8-108) - CYLINDER - TURN-CIRCLE (08) - HYDRAULICS

75220709

CYLINDER,Double Acting, 50mm Rod, 578mm Stroke

turn-circle, Includes: Ref. 1 - 12

1шт.

75220709R

REMAN-HYD CYLINDER

865 DHP MOTOR GRADER - ASN N5AF04007, Turn-circle (2/05-)

1шт.

75220709C

CORE-HYD CYLINDER

Return Number

1шт.

1

75220713

LINER, ENGINE CYLIND,761.1 mm Length

1шт.

2

75220924

BASE PLATE

HEAD

1шт.

3

8297074

RING

seal

1шт.

4

8297073

BRAKE LINING

SEAL

1шт.

5

8288832

O-RING

SEAL

1шт.

6

75220710

ROD,50mm OD x 812.3mm L

1шт.

7

14465780

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

1шт.

8

8297075

RING,83.8mm ID x 90.21mm OD x 6mm Thk

seal

1шт.

9

14465480

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

10

79038228

PISTON

PLUNGER

1шт.

11

8291561

PISTON RING,88.31mm Bore, 56mm Rod, 47mm W

RING

1шт.

12

8298615

NUT

1шт.

13

75220700

SEAL KIT

repair, Includes: Ref. 3, 4, 5, 7, 8, 9 and 11

1шт.
