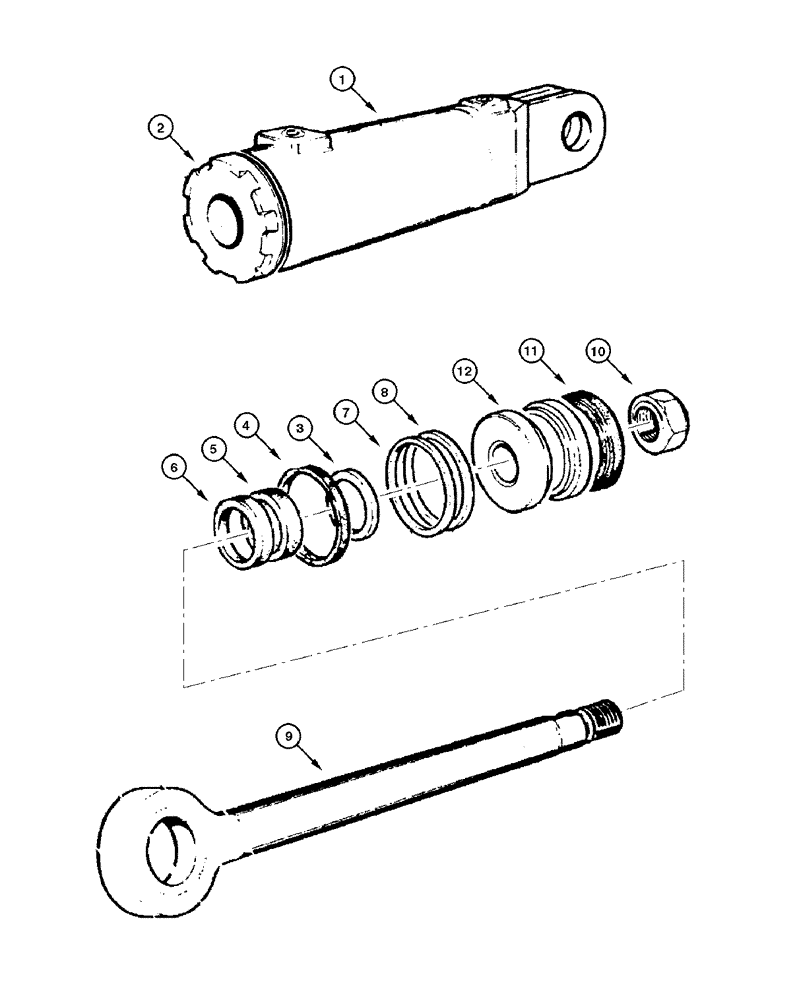

Запчасти Case 865 DHP (8-102) - CYLINDER - TILT (08) - HYDRAULICS

75220689

CYLINDER

tilt, Includes: Ref. 1 - 12

1шт.

75266919R

REMAN-HYD CYLINDER

865 DHP MOTOR GRADER ASN N5AF04007 (2/05-), Reman for New PN 75220689

1шт.

75266919C

CORE-HYD CYLINDER

Return Number

1шт.

1

75220693

LINER, ENGINE CYLIND,425.5 mm Length

TUBE

1шт.

2

75220924

BASE PLATE

HEAD

1шт.

3

8297074

RING

seal

1шт.

4

14465780

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

1шт.

5

8297073

BRAKE LINING

SEAL

1шт.

6

8288832

O-RING

SEAL

1шт.

7

8297075

RING,83.8mm ID x 90.21mm OD x 6mm Thk

seal

1шт.

8

14465480

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

9

75220690

ROD

1шт.

10

8298615

NUT

1шт.

11

8291561

PISTON RING,88.31mm Bore, 56mm Rod, 47mm W

RING

1шт.

12

79038228

PISTON

PLUNGER

1шт.

13

75220700

SEAL KIT

repair, Includes: Ref. 3, 4, 5, 6, 7, 8 and 11

1шт.
