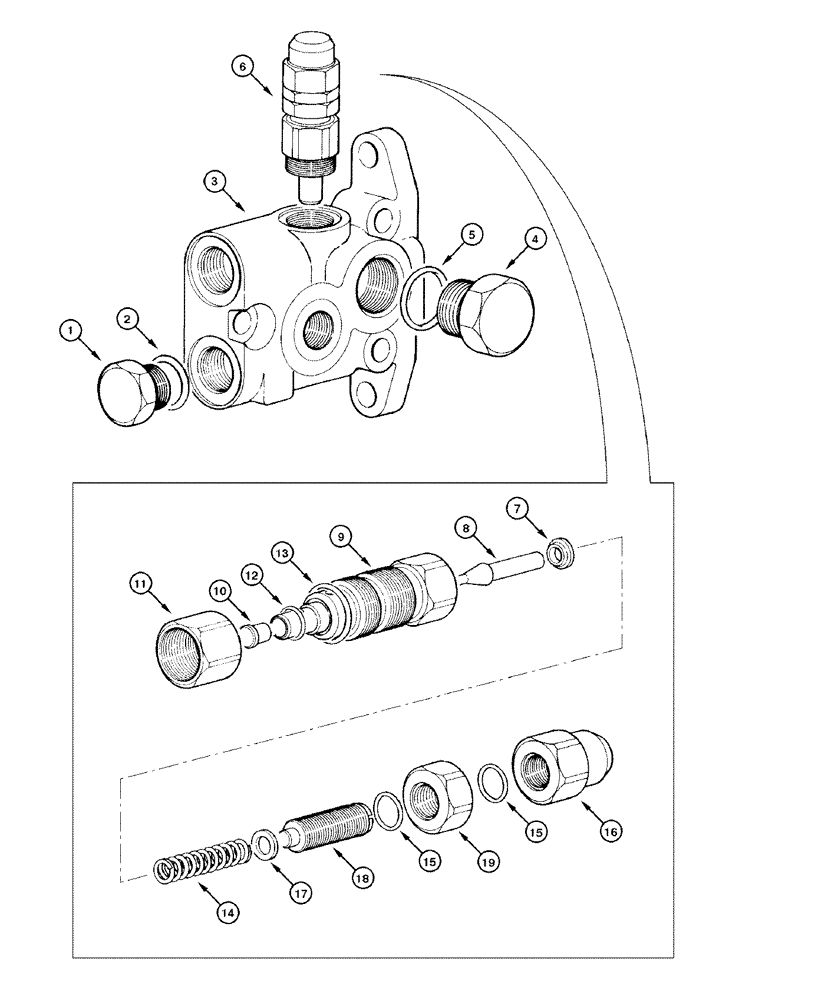

Запчасти Case 865 DHP (8-098) - DISTRIBUTOR - OUTPUT VALVE (08) - HYDRAULICS

75289561

HYDRAULIC VALVE

outlet, Includes: Ref. 1 - 20

1шт.

1

75289608

PLUG

1шт.

2

75289607

O-RING,0.097" Thk x 0.755" ID

O-RING

1шт.

3

75289612

HYDRAULIC VALVE

1шт.

4

75289605

PLUG

1шт.

5

75289607

O-RING,0.097" Thk x 0.755" ID

O-RING

1шт.

6

75289611

HYDRAULIC VALVE

Includes: Ref. 7 - 19

1шт.

7

75289614

RING

1шт.

8

75289623

PLUNGER

1шт.

9

75289617

CASE

HOUSING

1шт.

10

75289624

PLUNGER

1шт.

11

75289616

NUT

1шт.

12

75289613

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

13

75289587

O-RING

1шт.

14

75289615

SPRING

1шт.

15

75289621

O-RING

2шт.

16

75289619

NUT

1шт.

17

75289618

RING

1шт.

18

75289620

SCREW

BOLT

1шт.

19

75289622

NUT

1шт.

20

75289625

KIT

repair, Includes: Ref. 12, 13, 14 and 15

1шт.
