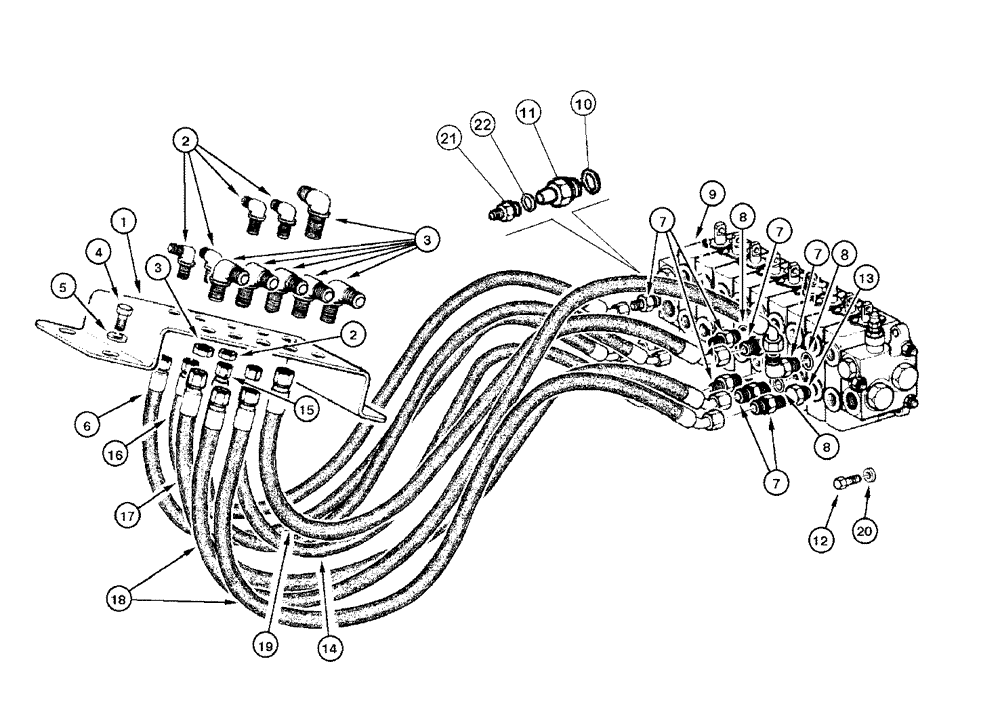

Запчасти Case 865 DHP (8-080) - DISTRIBUTOR - HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

75280667

PLATE

1шт.

2

70928378

ELBOW

CONNECTOR

4шт.

3

70927163

HYD CONNECTOR

ELBOW

6шт.

4

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

4шт.

5

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

6

75251188

FLEXIBLE HOSE

ASSY

1шт.

7

70922457

HYD CONNECTOR

Includes: Ref. 8

3шт.

8

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

7шт.

9

REF

INSTRUCTION

VALVE distributor (Figure 8-078)

1шт.

10

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9шт.

11

75261780

ORIFICE

CONNECTOR

2шт.

12

70921565

SCREW

BOLT

4шт.

13

70922577

PLUG

1шт.

14

75252832

FLEXIBLE HOSE

ASSY

1шт.

15

75251190

FLEXIBLE HOSE

ASSY

1шт.

16

75251192

FLEXIBLE HOSE

ASSY

1шт.

17

75251194

FLEXIBLE HOSE

ASSY

1шт.

18

75252425

FLEXIBLE HOSE

ASSY

1шт.

19

75251191

FLEXIBLE HOSE

ASSY

1шт.

20

70630753

WASHER

4шт.

21

70925656

HYD CONNECTOR

2шт.

22

70923845

O-RING

2шт.
