Запчасти Case 865 DHP (8-072) - DIFFERENTIAL LOCK - CIRCUIT (08) - HYDRAULICS

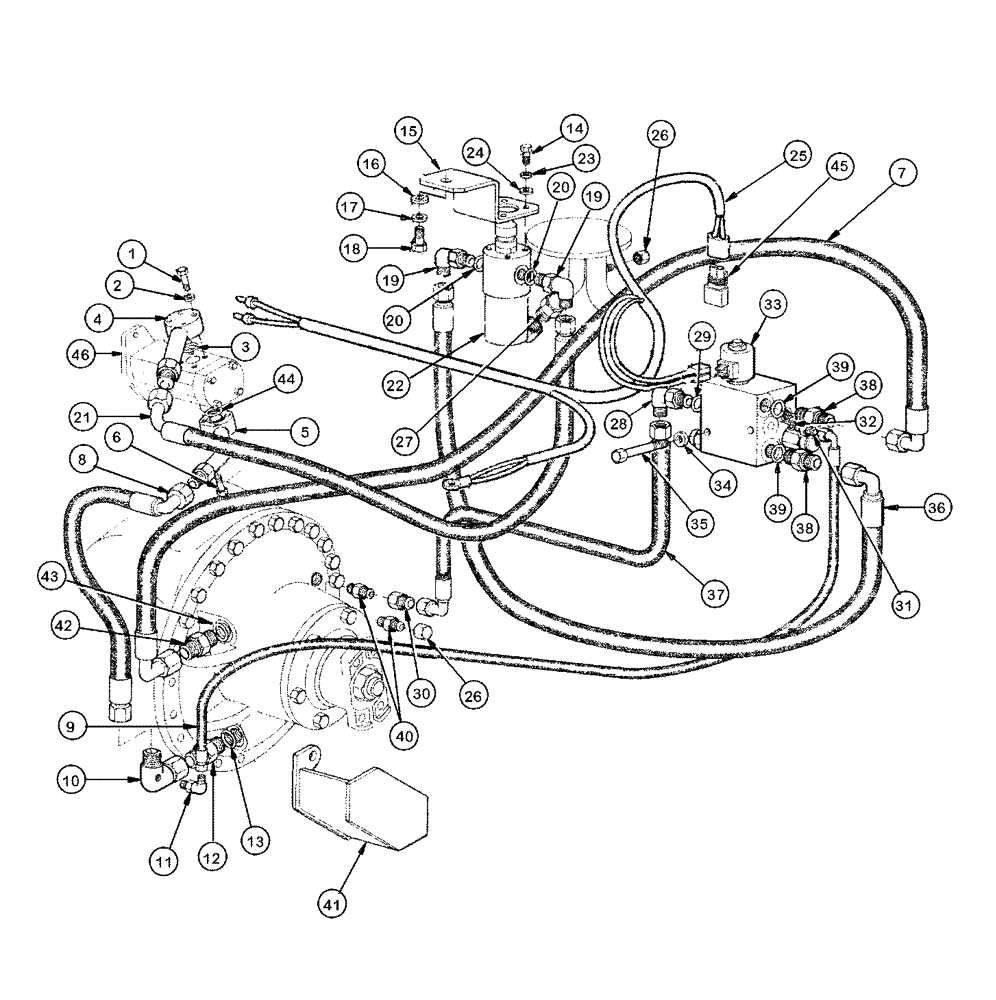

Схема запчастей Case 865 DHP - (8-072) - DIFFERENTIAL LOCK - CIRCUIT (08) - HYDRAULICS
32
19
17
26
14
37
38
24
1
18
2
11
8
43
40
36
26
7
3
28
12
42
29
38
22
4
30
16
19
35
15
39
23
6
20
21
39
41
5
25
31
34
9
44
20
46
27
45
10
13
33

Артикул

Название

Примечание

Количество

1

10903031

BOLT,Hex, M6 x 35mm, Cl 10.9

3шт.

2

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

6шт.

3

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

4

75252527

TUBE

1шт.

5

75253556

TUBE

1шт.

6

10903431

BOLT,Hex, M6 x 45mm, Cl 10.9

3шт.

7

75324755

HOSE,12.7mm ID x 1680mm L, SAE 100R2

ASSY

1шт.

8

75325856

HOSE

HOSE ASSY

1шт.

9

75324762

HOSE,6.4mm ID x 1950mm L, SAE 100R1

ASSY

1шт.

10

75254413

HYD CONNECTOR

ELBOW

1шт.

11

70919173

ELBOW

CONNECTOR

1шт.

12

70921217

HYD CONNECTOR

Includes: Ref. 13

1шт.

13

70921206

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

4шт.

15

75323525

SUPPORT

BRACKET

1шт.

16

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

17

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

lock

1шт.

18

11103031

BOLT,Hex, M10 x 18, 10.9, Full Thd

1шт.

19

79067020

ELBOW

ELBOW, Includes: Ref. 20

2шт.

20

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

21

75252543

FLEXIBLE HOSE

ASSY

1шт.

22

REF

INSTRUCTION

FILTER (Figure 8-076)

1шт.

23

10516471

LOCK WASHER

4шт.

24

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.

25

75324247

WIRE HARNESS

HARNESS

1шт.

26

70921467

PLUG

CAP

2шт.

27

70921244

PLUG

CAP

1шт.

28

70921402

ELBOW

Includes: Ref. 29

1шт.

29

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

30

75252388

HYD CONNECTOR

1шт.

31

70923163

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Includes: Ref. 32

1шт.

32

70921883

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

33

REF

INSTRUCTION

SOLENOID (Figure 8-074)

1шт.

34

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

35

16045021

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

2шт.

36

75324763

HOSE,12.7mm ID x 410mm L, SAE 100R2

ASSY

1шт.

37

75324751

HOSE,12.7mm ID x 1800mm L, SAE 100R2

ASSY

1шт.

38

70923717

HYD CONNECTOR

Includes: Ref. 39

2шт.

39

70921206

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

40

75288573

BUSHING

CONNECTOR

2шт.

41

75254440

GUARD

1шт.

42

70924296

GEAR REDUCTION UNIT

CONNECTOR, Includes: Ref. 43

1шт.

43

70921205

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

1шт.

44

14457680

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

45

75322270

ELEC CONNECTOR

VARISTOR

1шт.

46

REF

INSTRUCTION

PUMP oil (Figure 8-066)

1шт.

Выбрано товаров: 46
