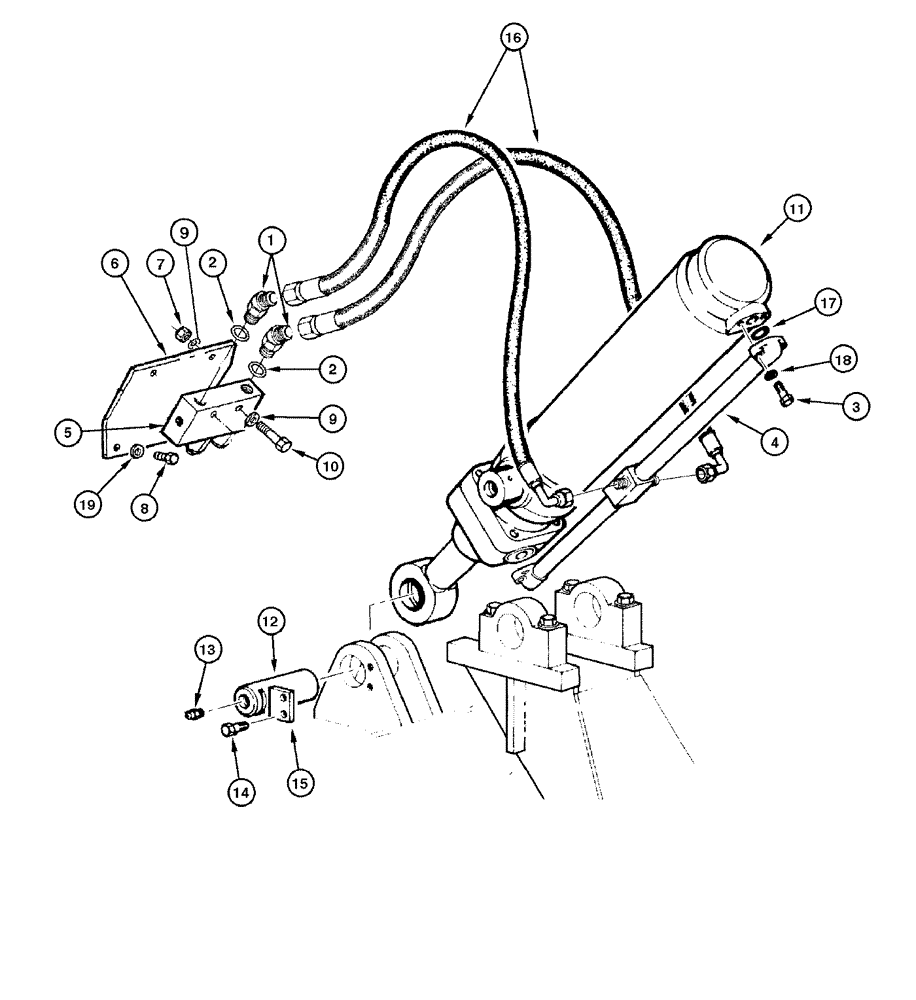

Запчасти Case 865 DHP (8-058) - RIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

70922507

ELBOW

Includes: Ref. 2

2шт.

2

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

3

15540931

BOLT,Hex, M12 x 1.25 x 55mm, Cl 10.9

4шт.

4

75251728

MANIFOLD,647 mm Length

TUBE

1шт.

5

REF

INSTRUCTION

VALVE (Figure 8-100)

1шт.

6

75252422

PLATE

1шт.

7

11701721

NUT,M10, Cl 10

2шт.

8

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

2шт.

9

70630753

WASHER

4шт.

10

11107331

SCREW,Hex, M10 x 55mm, Cl 10.9

2шт.

11

REF

INSTRUCTION

CYLINDER (Figure 8-118)

1шт.

12

76002504

PIN,60mm OD x 170mm L

1шт.

13

13407211

LUBE NIPPLE,M10 x 1

1шт.

14

15540431

SCREW,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

15

8270126

PLATE

1шт.

16

73127637

FLEXIBLE HOSE

2шт.

17

14463280

O-RING,24.99mm ID x 3.53" Width

2шт.

18

10571971

LOCK WASHER

4шт.

19

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.
