Запчасти Case 865 DHP (8-048) - LINK HYDRAULIC CIRCUIT (08) - HYDRAULICS

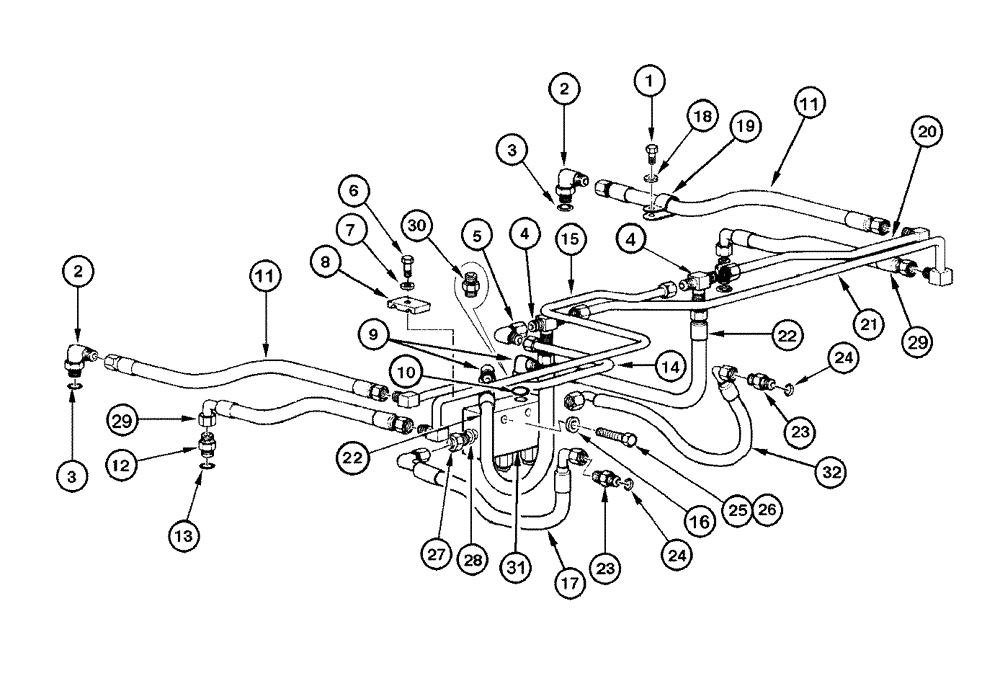

Схема запчастей Case 865 DHP - (8-048) - LINK HYDRAULIC CIRCUIT (08) - HYDRAULICS
20
22
24
11
16
17
22
9
18
2
8
27
3
1
21
24
29
7
5
15
23
28
3
14
26
12
32
4
6
31
4
25
11
19
13
29
30
2
10
23

Артикул

Название

Примечание

Количество

1

70927541

SCREW

BOLT

1шт.

2

70923905

ELBOW

CONNECTOR, Includes: Ref. 3

2шт.

3

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

4

70928808

3 WAY CONNECTION

2шт.

5

70921279

ELBOW

1шт.

6

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

7

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

8

70623355

COLLAR

CLAMP

2шт.

9

70921402

ELBOW

Includes: Ref. 10

1шт.

10

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

11

75251195

FLEXIBLE HOSE

2шт.

12

70922457

HYD CONNECTOR

Includes: Ref. 13

2шт.

13

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

14

75248980

RIGID TUBE

1шт.

15

75248981

RIGID TUBE

1шт.

16

70630753

WASHER

4шт.

17

75320494

FLEXIBLE HOSE

1шт.

18

70677004

WASHER,7.14mm ID x 15.88mm OD x 3.42mm Thk

1шт.

19

70929344

CLAMP

1шт.

20

75248982

RIGID TUBE,9.7 mm ID, 12.7 mm OD, 304, 169 mm Length

1шт.

21

75248979

RIGID TUBE

1шт.

22

75251155

FLEXIBLE HOSE

2шт.

23

70922522

HYD CONNECTOR

Includes: Ref. 24

2шт.

24

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

25

11107331

SCREW,Hex, M10 x 55mm, Cl 10.9

2шт.

26

11701721

NUT,M10, Cl 10

2шт.

27

70922457

HYD CONNECTOR

Includes: Ref. 28

2шт.

28

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

29

75251196

FLEXIBLE HOSE

2шт.

30

70921409

HYD CONNECTOR

2шт.

31

REF

INSTRUCTION

VALVE (Figure 8-100)

1шт.

32

75251173

FLEXIBLE HOSE

1шт.

Выбрано товаров: 32
