(8-044) - CIRCLE HYDRAULIC CIRCUIT - TURN-CIRCLE HYDRAULIC MOTOR

Запчасти Case 865 DHP (8-044) - CIRCLE HYDRAULIC CIRCUIT - TURN-CIRCLE HYDRAULIC MOTOR (08) - HYDRAULICS

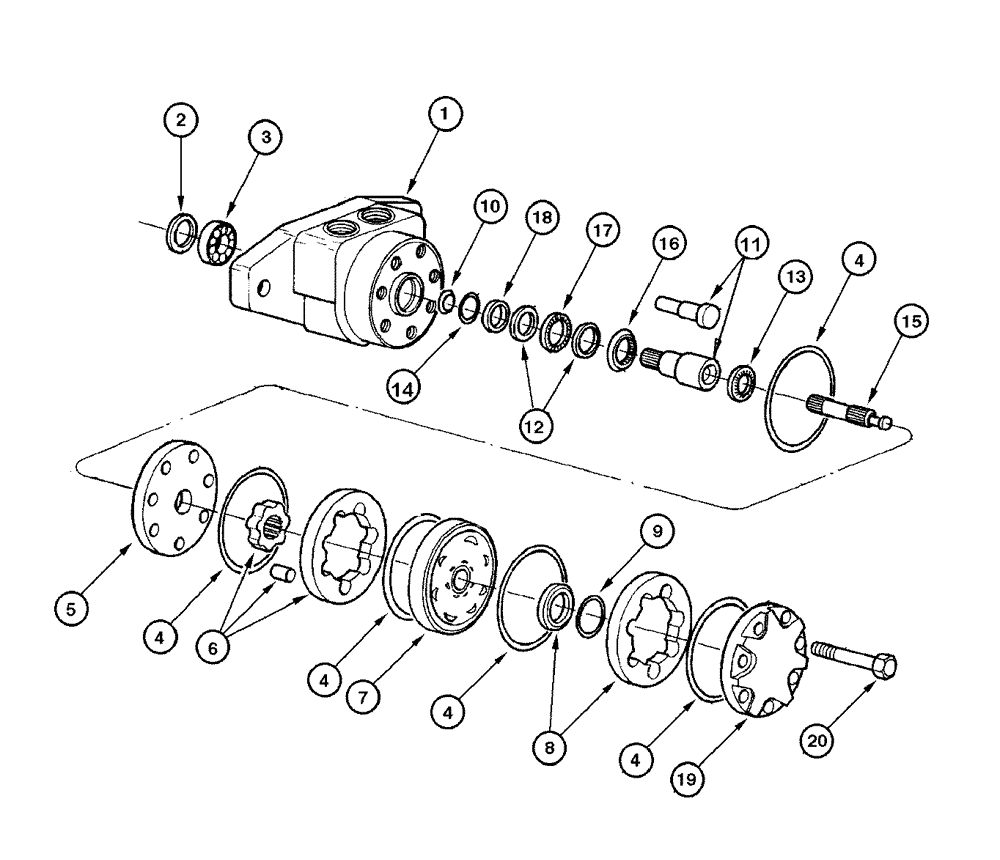

Схема запчастей Case 865 DHP - (8-044) - CIRCLE HYDRAULIC CIRCUIT - TURN-CIRCLE HYDRAULIC MOTOR (08) - HYDRAULICS
16
20
12
4
13
2
10
1
5
3
6
4
9
11
15
19
17
4
14
4
8
7
18
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

75258929

HYDRAULIC MOTOR

Includes: Ref. 1 - 21

1шт.

87389984R

REMAN-HYD MOTOR

865 DHP MOTOR GRADER - ASN N5AF04007 (2/05-), Reman for New PN 75258929

1шт.

87389984C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1

71100559

HOUSING

HOUSING

1шт.

2

71100574

RUBBER SEAL

SEAL

1шт.

3

71100573

BEARING ASSY

BEARING

1шт.

4

71100562

SEAL

O'RING

5шт.

5

71100567

PLATE

PLATE

1шт.

6

71100557

GEAR

KIT

1шт.

7

71100565

HOUSING

HOUSING

1шт.

8

71100566

COVER PLATE

PLATE, Includes: Ref. 9

1шт.

9

71100563

PLASTIC RING

SEAL RING

1шт.

10

71100572

WASHER

RING

1шт.

NSS

NOT SOLD SEPARAT

SHAFT, Includes: Ref. 11 - 14

1шт.

11

71100575

RING

RING

1шт.

12

71100570

RUBBER SEAL

RING

2шт.

13

71100568

BEARING ASSY

BEARING

1шт.

14

71100560

SHAFT

KIT KIT

1шт.

15

71100558

SHAFT

SHAFT

1шт.

16

71100569

BEARING ASSY

BEARING

1шт.

17

71100571

BEARING ASSY

BEARING

1шт.

18

71100564

RUBBER SEAL

SEAL

1шт.

19

71100561

COVER

COVER

1шт.

20

71100556

SCREW

BOLT

7шт.

21

71101031

KIT

KIT

1шт.
