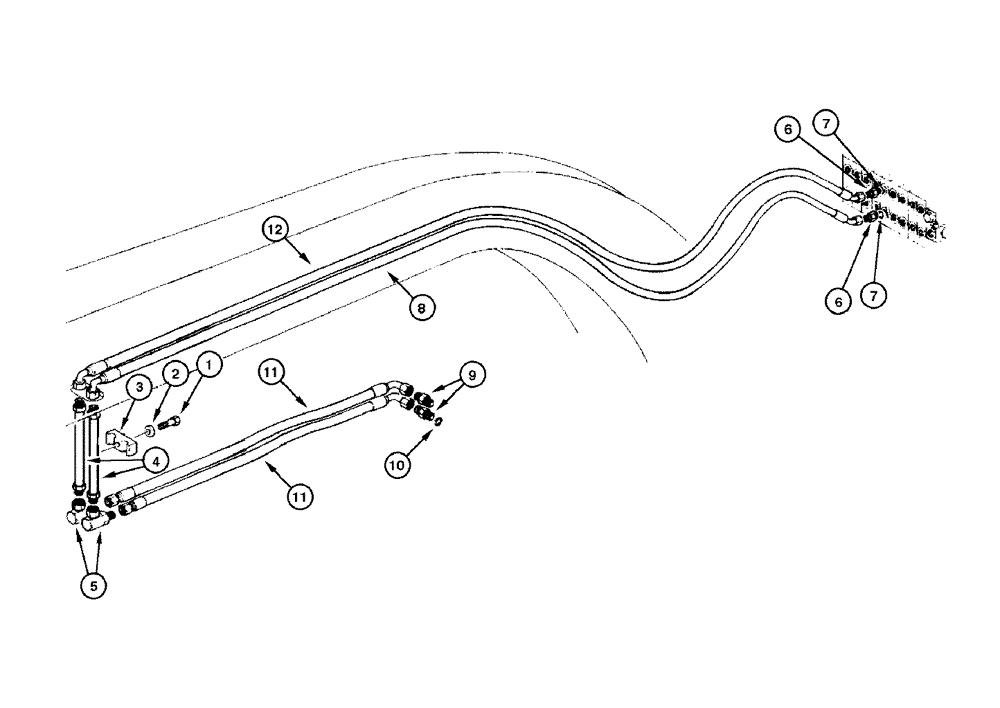

Запчасти Case 865 DHP (8-040) - CIRCLE HYDRAULIC CIRCUIT - TURN-CIRCLE CIRCUIT (08) - HYDRAULICS

1

15541031

BOLT,Hex, M12 x 1.25 x 60mm, Cl 10.9

1шт.

2

10517071

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

1шт.

3

75258117

CLAMP

2шт.

4

75252273

RIGID TUBE,16 mm ID, 20 mm OD, 200 mm Length

2шт.

5

73121563

HYD CONNECTOR

2шт.

6

70921409

HYD CONNECTOR

Includes: Ref. 7

2шт.

7

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

8

75251163

FLEXIBLE HOSE

1шт.

9

70921326

HYD CONNECTOR

Includes: Ref. 10

2шт.

10

70921205

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

2шт.

11

75255791

HOSE,15.9mm ID x 1120mm L, SAE 100R2

2шт.

12

75251164

FLEXIBLE HOSE

1шт.
