Запчасти Case 865 DHP (8-038) - CIRCLE HYDRAULIC CIRCUIT - SIDE SHIFT (08) - HYDRAULICS

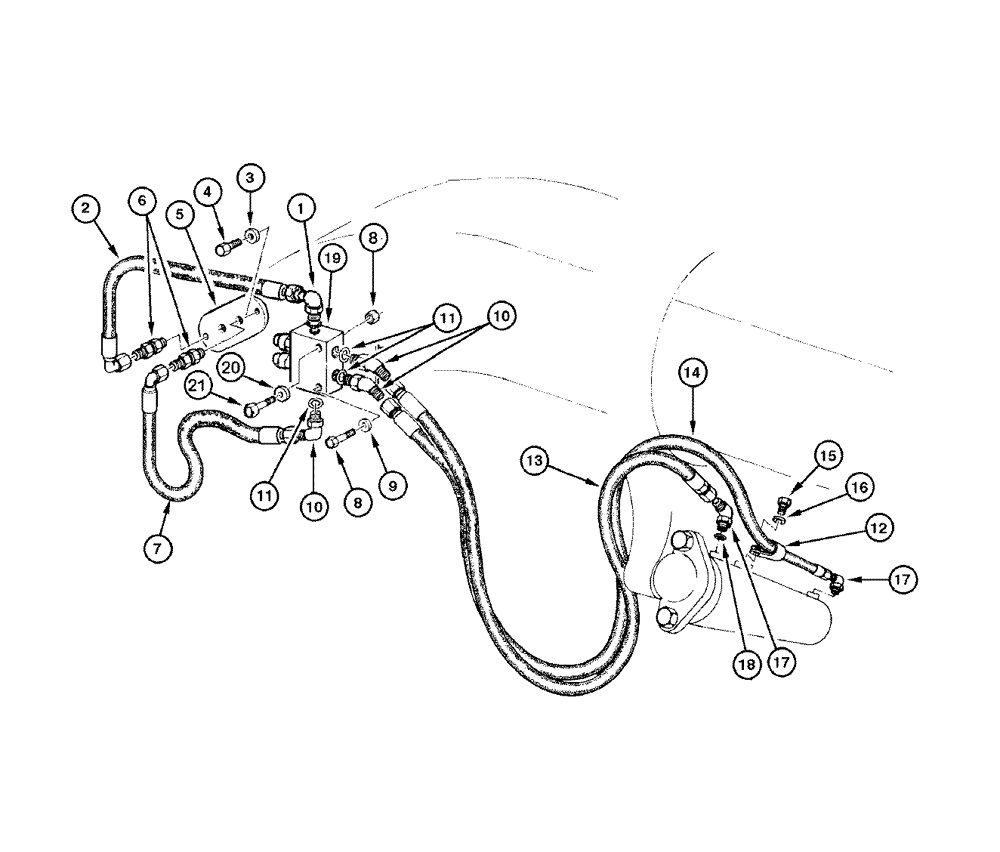

Схема запчастей Case 865 DHP - (8-038) - CIRCLE HYDRAULIC CIRCUIT - SIDE SHIFT (08) - HYDRAULICS
11
21
20
16
7
18
2
15
3
8
17
19
6
9
4
12
17
10
11
5
14
1
8
13
10

Артикул

Название

Примечание

Количество

1

70921402

ELBOW

1шт.

2

75252544

FLEXIBLE HOSE

1шт.

3

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

4

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

2шт.

5

75280722

COVER

PLATE

1шт.

6

70927261

HYD CONNECTOR

2шт.

7

75253458

FLEXIBLE HOSE

1шт.

8

16100821

NUT,M8, Cl 10

4шт.

9

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

10

70922507

ELBOW

Includes: Ref. 11

3шт.

11

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

6шт.

12

70928010

CLAMP

1шт.

13

75322766

FLEXIBLE HOSE,12.7mm ID x 1020mm L, SAE 100R2

HOSE

1шт.

14

75321941

FLEXIBLE HOSE

HOSE

1шт.

15

70922763

SCREW

BOLT

1шт.

16

70929156

WASHER,0.41" ID x 0.81" OD x 0.06" Thk

1шт.

17

70921402

ELBOW

Includes: Ref. 18

3шт.

18

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

REF

INSTRUCTION

VALVE (Figure 8-100)

1шт.

20

70630753

WASHER

2шт.

21

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

Выбрано товаров: 21
