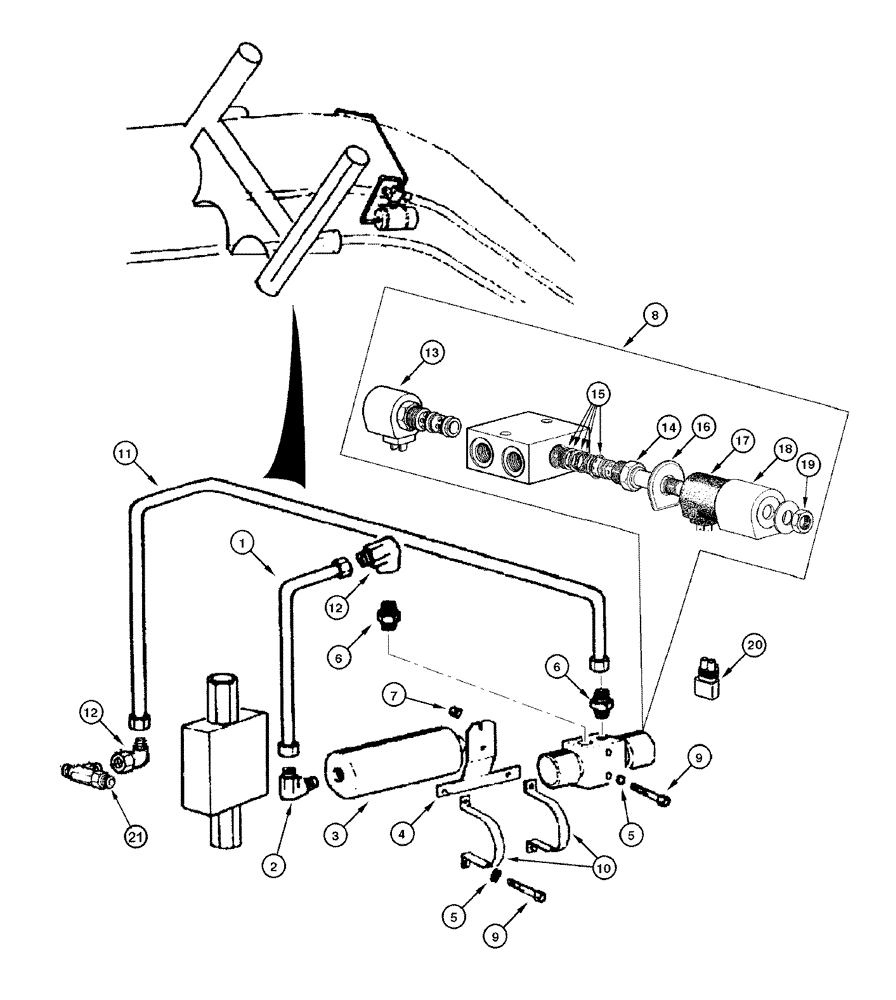

Запчасти Case 865 DHP (8-018) - BLADE HYDRAULIC CIRCUIT - SIDE SHIFT ACCUMULATOR (OPTIONAL) (08) - HYDRAULICS

1

75255616

RIGID TUBE,9.7 mm ID, 12.7 mm OD, 182, 87 mm Length

1шт.

2

70921402

ELBOW

1шт.

3

73160860

ACCUMULATOR

1шт.

4

75255627

SUPPORT

BRACKET

1шт.

5

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

lock

6шт.

6

70921409

HYD CONNECTOR

2шт.

7

15500121

NUT

6шт.

8

73160850

HYDRAULIC VALVE

1шт.

9

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

10

73160848

CLAMP

2шт.

11

75255614

THERMOMETER

TUBE

1шт.

12

70921279

ELBOW

Includes: Ref. 13 - 19

2шт.

13

73132976

HYDRAULIC VALVE

1шт.

14

73133624

HYDRAULIC VALVE

Includes: Ref. 15

2шт.

15

75286423

KIT

1шт.

16

73128151

WASHER

COVER

2шт.

17

73123152

SNAP RING

COIL

1шт.

18

73123153

HOUSING

1шт.

19

73113425

NUT

1шт.

20

75322270

ELEC CONNECTOR

VARISTOR

1шт.

21

70922792

3 WAY CONNECTION

CONNECTOR

1шт.
