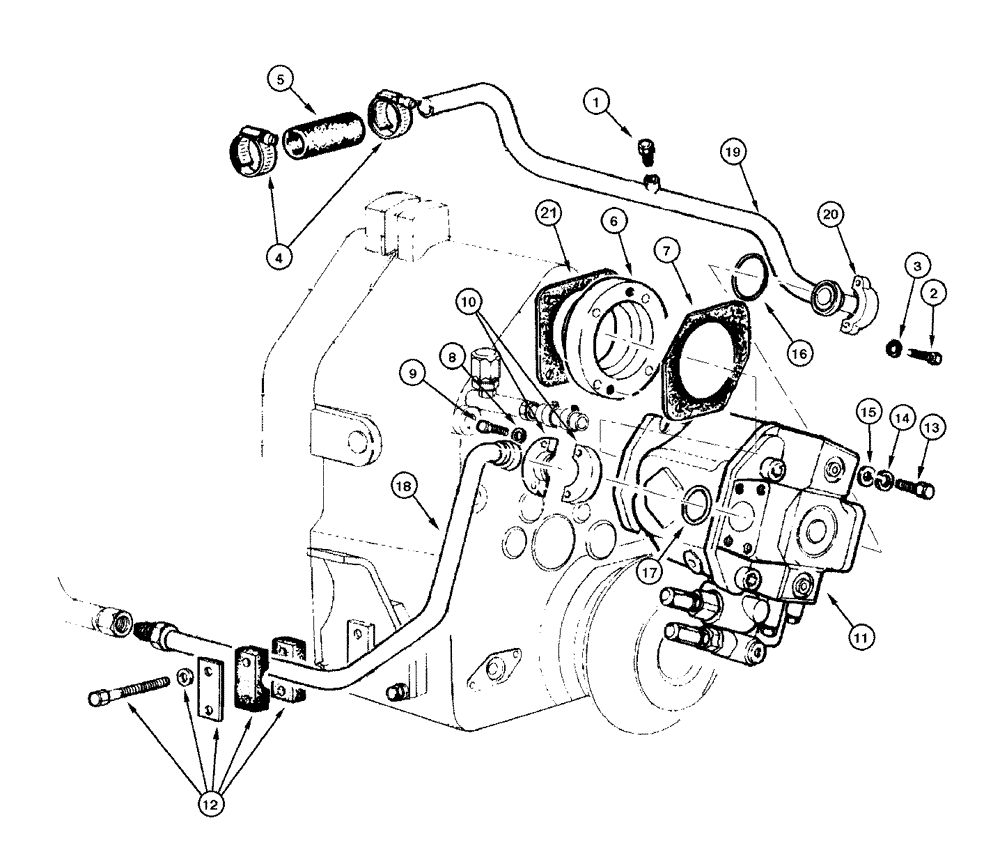

Запчасти Case 865 DHP (8-010) - MAIN PUMP CIRCUIT (08) - HYDRAULICS

1

70918951

PLUG

steel

1шт.

2

11115531

BOLT,Hex, M14 x 30, 10.9, Full Thd

4шт.

3

10517173

LOCK WASHER,14.2mm ID x 24.1mm OD x 3.5mm Thk

WASHER lock

4шт.

4

L126871

CLAMP

2шт.

5

73107726

HOSE

1шт.

6

75253330

SPACER

1шт.

7

73151829

GASKET,0.76mm Thk

2шт.

8

10517073

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

4шт.

9

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

4шт.

10

75253408

CLAMP

2шт.

11

REF

INSTRUCTION

PUMP hydraulic (Figure 8-006)

1шт.

12

75252041

CLAMP

1шт.

13

11118731

BOLT,Hex, M16 x 45, 10.9

2шт.

14

10517271

LOCK WASHER,16.2mm ID x 27.7mm OD x 4mm Thk

2шт.

15

10520201

WASHER,16.4mm ID x 28mm OD x 3mm Thk

2шт.

16

70924686

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

1шт.

17

70923664

O-RING

O-RING

2шт.

18

75325305

RIGID TUBE

2шт.

19

75325340

TUBE

2шт.

20

70921599

CLAMP

FLANGE

2шт.

21

70188771

GASKET,0.79mm Thk

2шт.
