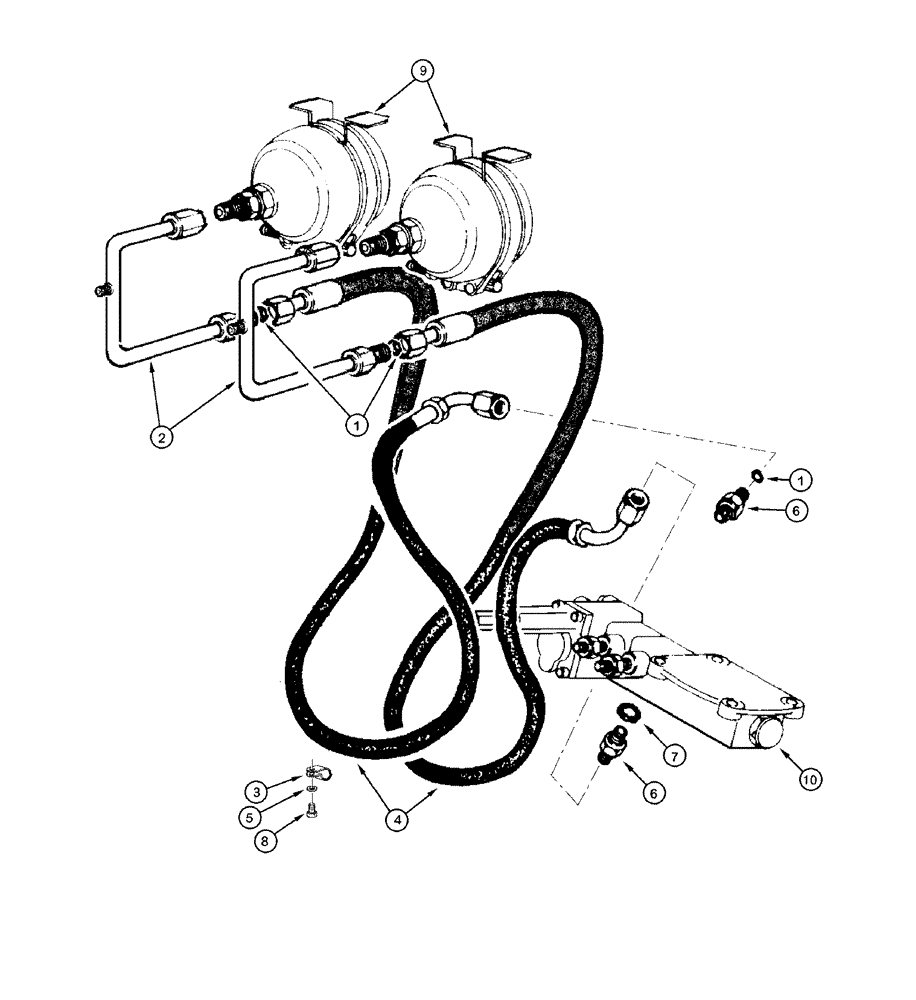

Запчасти Case 865 DHP (7-016) - EMERGENCY BRAKE ASSEMBLY (07) - BRAKES

1

70923841

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

2

75253784

RIGID TUBE

2шт.

3

70925617

CLAMP

1шт.

4

75252441

FLEXIBLE HOSE

2шт.

5

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

1шт.

6

75239803

LUBE NIPPLE

CONNECTOR, Includes: Ref. 7

2шт.

7

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

8

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

1шт.

9

REF

INSTRUCTION

ACCUM hydraulic (Figure 7-018)

1шт.

10

REF

INSTRUCTION

BOOSTER brake (Figure 7-010)

1шт.
