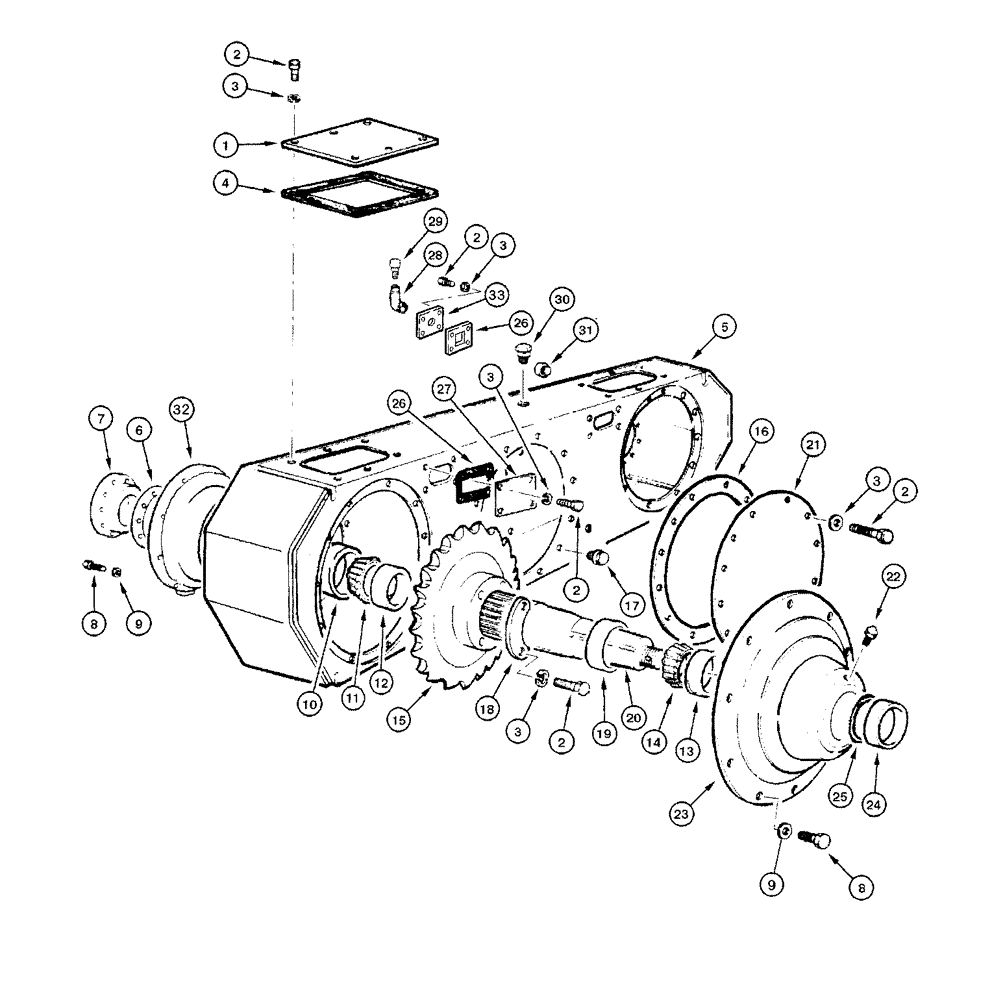

Запчасти Case 865 DHP (6-076) - TANDEM - WHEEL END (FOR GRAZIANO AXLE) (06) - POWER TRAIN

1

75257199

COVER

4шт.

2

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

24шт.

3

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

lock

24шт.

4

75257200

GASKET,3mm Thk

4шт.

5

75249757

CASE

HOUSING

2шт.

6

70684815

SHIM,.003" Thk

12шт.

6

70684813

SHIM

56шт.

6

70684814

SHIM,.005" Thk

1шт.

7

75222181

PLATE

4шт.

8

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

120шт.

9

10517071

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

60шт.

10

70680631

BEARING CUP,122.24mm OD x 29.72mm W

4шт.

11

70684816

BEARING ASSY,2.625" ID x 1.51"

4шт.

12

70680615

SEAL,82.55mm ID x 154.94mm OD x 12.7mm Thk

RETAINER

4шт.

13

70042877

BEARING CUP,150.09mm OD x 36.5mm W

4шт.

14

70051997

BEARING ASSY,85.03mm ID x 46.67mm W

4шт.

15

75249760

SPROCKET,27T

4шт.

16

73161784

GASKET,1.5mm Thk

2шт.

17

70912725

PLUG

4шт.

18

70653821

PLATE

8шт.

19

70653820

SEAL,95.89mm ID x 155.32mm OD x 2.03mm Thk

RETAINER

4шт.

20

75256823

SHAFT

4шт.

21

73161783

COVER

2шт.

22

70914465

LUBE NIPPLE

FITTING grease

4шт.

23

75256828

COVER

4шт.

24

75256829

SEAL RETAINER

RETAINER

4шт.

25

11075376

LOCKING RING

snap

4шт.

26

75257147

GASKET

8шт.

27

75257148

COVER

6шт.

28

70907059

HYD CONNECTOR

ELBOW

2шт.

29

70634161

BREATHER

2шт.

30

70912768

PLUG

2шт.

31

70901651

PLUG

6шт.

32

75249761

HUB

4шт.

33

75257150

COVER

2шт.
