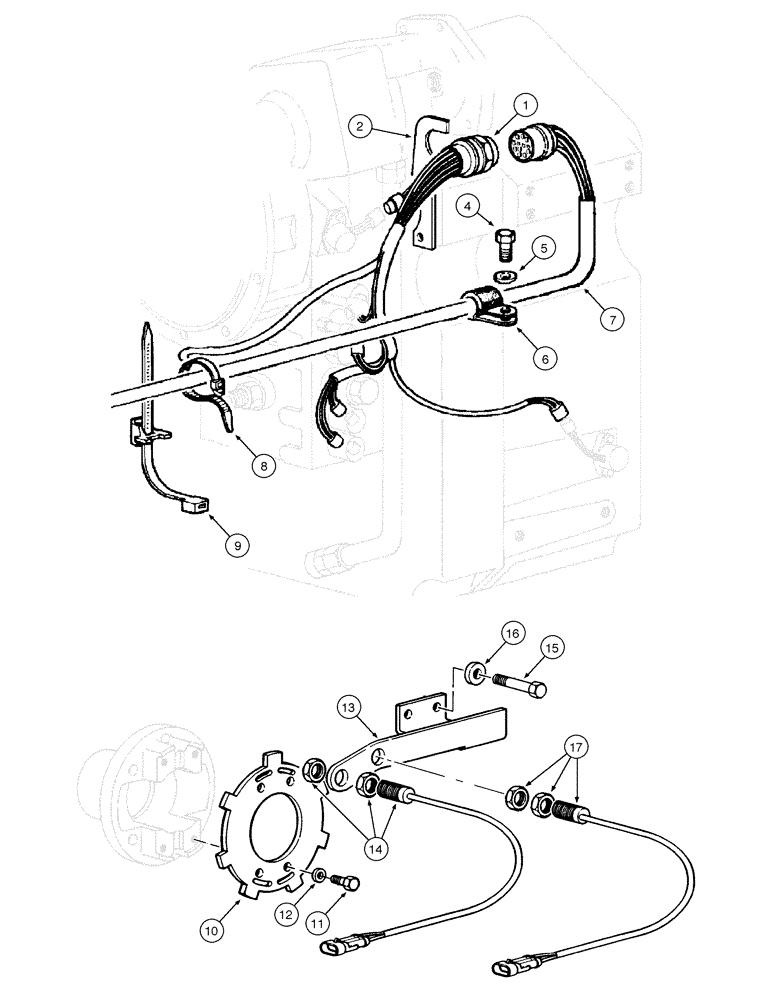

Запчасти Case 865 AWD (04-24[01]) - ELECTRICAL SYSTEM - TRANSMISSION (04) - ELECTRICAL SYSTEMS

1

75312856

CABLE ASSY.

transmission

1шт.

2

75287758

SUPPORT

1шт.

4

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

1шт.

5

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

6

70925621

COLLAR

1шт.

7

87651025

ELECTRIC CABLE

transmission

1шт.

8

75201641

CLAMP

4шт.

9

75284071

CLAMP

5шт.

10

75281055

PLATE

1шт.

11

70927353

SCREW

4шт.

12

70912441

LOCK WASHER

4шт.

13

87679190

SUPPORT

1шт.

14

84150310

SENSOR

1шт.

15

11114031

BOLT,Hex, M12 x 90, 10.9

2шт.

16

10517071

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

2шт.

17

75252215

SENSOR

1шт.
