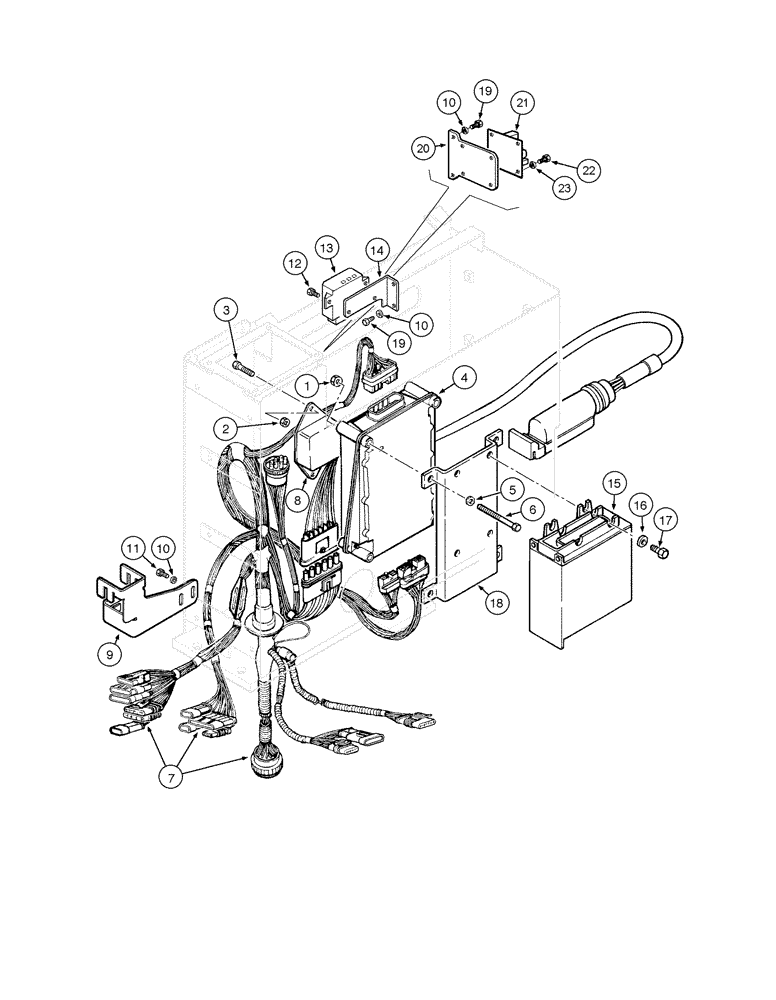

Запчасти Case 865 AWD (04-18[01]) - ELECTRICAL SYSTEM - ELECTRONIC CONTROL UNIT (04) - ELECTRICAL SYSTEMS

1

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

2

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

3

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

4

87657163

CONTROL

1шт.

5

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

6шт.

6

10903931

BOLT

4шт.

7

87651025

ELECTRIC CABLE

transmission

1шт.

8

73162492

CONTROL

electric

1шт.

9

75324944

SUPPORT

1шт.

10

12644421

WASHER,6.15mm ID x 15mm OD x 1mm Thk

4шт.

11

10902131

SCREW,Hex, M6 x 14mm, Cl 10.9, Full Thd

2шт.

12

10977731

BOLT,Hex, M5 x 14mm, Cl 10.9, Full Thd

2шт.

13

87335022

HARNESS

electric

1шт.

14

87535385

SUPPORT

1шт.

15

8921570

CONTROL UNIT

electric

1шт.

16

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

17

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

4шт.

18

87676397

SUPPORT

1шт.

19

10902631

BOLT,Hex, M6 x 25mm, Cl 10.9

4шт.

20

87755323

SUPPORT

1шт.

21

232363A1

MODULE

1шт.

22

1270742C1

PREV TORQUE BOLT,Cross Rec Pan Hd, M6 x 1 x 12mm

4шт.

23

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.
