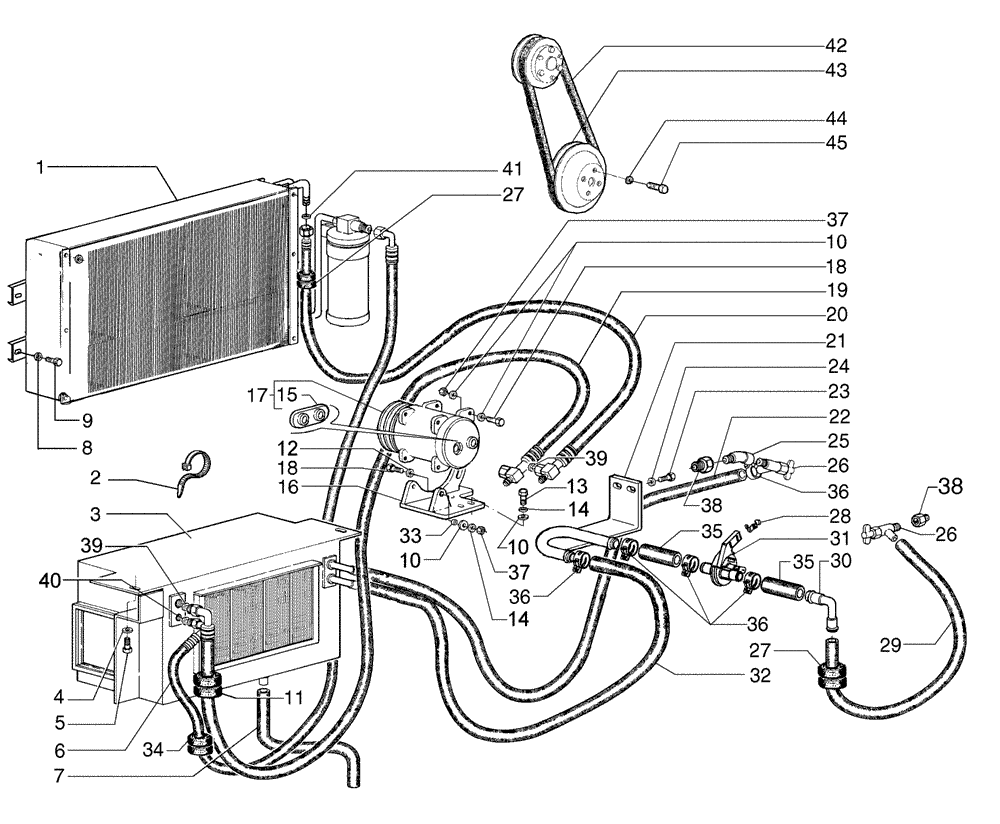

Запчасти Case 865 AWD (09-086[01]) - AIR CONDITIONING - CIRCUIT AND ASSEMBLY (09) - CHASSIS

1

87642958

CONDENSER

1шт.

Page 09-96

1шт.

2

75201642

CLAMP

20шт.

3

75327119

EVAPORATOR

Assy

1шт.

4

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

5

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

6

75326214

FLEXIBLE HOSE

1шт.

7

75255010

HOSE

1шт.

8

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

8шт.

9

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

8шт.

10

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

9шт.

11

75321550

INSULATOR

1шт.

12

11107231

SCREW,Hex, M10 x 50mm, Cl 10.9

1шт.

13

14420131

HEX SOC SCREW,M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

14

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

4шт.

15

87363102

HYD CONNECTOR

1шт.

16

87740027

SUPPORT

1шт.

17

87522165

AIR COMPRESSOR

A/C Assy

1шт.

17

87522165R

REMAN-A/C COMPRESSOR

865 AWD MOTOR GRADER TIER 3 (NA), A/C Assy (1/08-)

1шт.

17

87522165C

CORE-A/C COMPRESSOR

Return Number

1шт.

18

11107031

BOLT,Hex, M10 x 45mm, Cl 10.9

4шт.

19

75325531

HOSE ASSY.

1шт.

20

75325530

HOSE ASSY.

1шт.

21

75321436

TUBE,81, 60.5 mm Length

1шт.

22

87610203

HEATER HOSE,15.88mm ID x 1620mm L

1шт.

23

11107231

SCREW,Hex, M10 x 50mm, Cl 10.9

2шт.

24

12642021

WASHER

2шт.

25

70910149

ELBOW

1шт.

26

301803R1

SHUT-OFF VALVE

2шт.

27

73150779

INSULATOR

2шт.

28

1954626C1

SPRING CLIP

1шт.

29

87574040

HEATER HOSE,16.00 mm ID x 2400.00 mm

1шт.

30

75322881

TUBE,52, 36 mm Length

1шт.

31

1331087C1

HEATER VALVE

1шт.

32

75320965

HEATER HOSE,16.00 mm ID x 410.00 mm

1шт.

33

79114762

BUSHING,10.5mm ID x 16mm OD x 15mm L

1шт.

34

75321576

INSULATOR

2шт.

35

75321442

HEATER HOSE,15.50 mm ID x 50.00 mm

2шт.

36

1954736C1

HOSE CLAMP,#24

8шт.

37

12577221

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND

3шт.

38

70901835

BUSHING

1шт.

39

75258841

O-RING

2шт.

40

75258843

O-RING

1шт.

41

75258841

O-RING

1шт.

42

75327255

V-BELT,13.00 mm W x 1025.00 mm L

1шт.

43

75286359

PULLEY

1шт.

44

12638601

WASHER,M10 x 18 x 2

4шт.

45

75206638

SCREW

M10 x 1.50 x 25

4шт.
