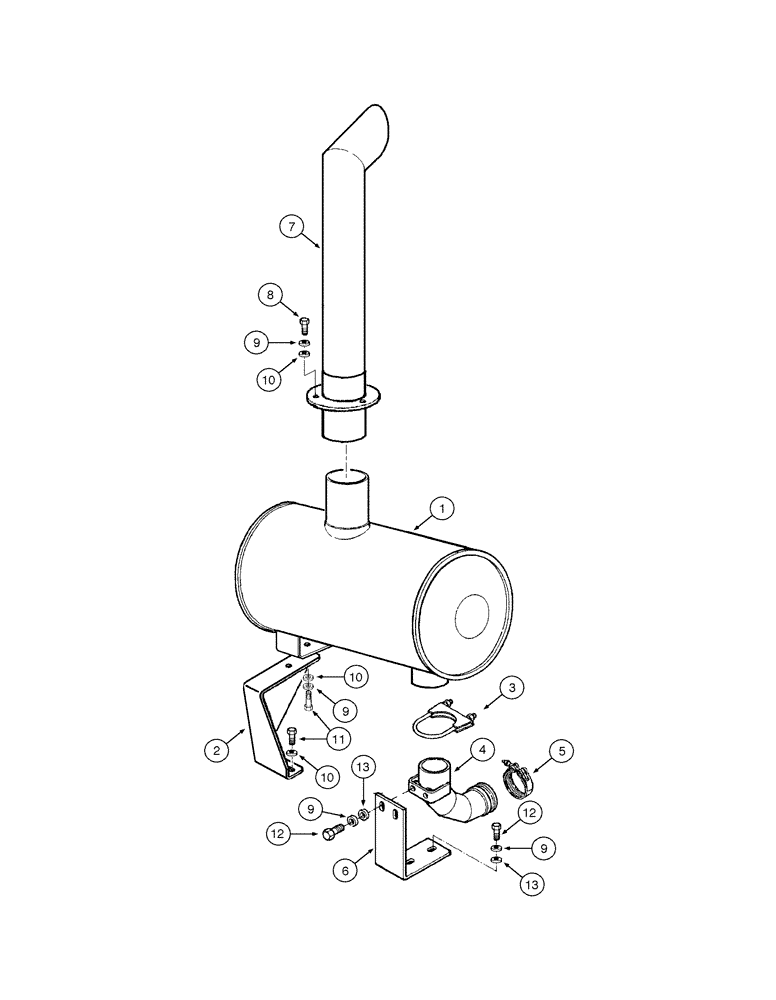

Запчасти Case 865 AWD (02-20[01]) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

73164453

MUFFLER

1шт.

2

87359186

SUPPORT

1шт.

3

A162896

CLAMP

1шт.

4

75327717

PIPE

1шт.

5

75208324

CLAMP

1шт.

6

75327718

BRACKET, SUPPORTING

1шт.

7

75323452

PIPE

exhaust

1шт.

8

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

3шт.

9

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

9шт.

10

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

7шт.

11

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

12

11106031

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

6шт.

13

70677006

WASHER,10.31mm ID x 22.23mm OD x 4.76mm Thk

4шт.
