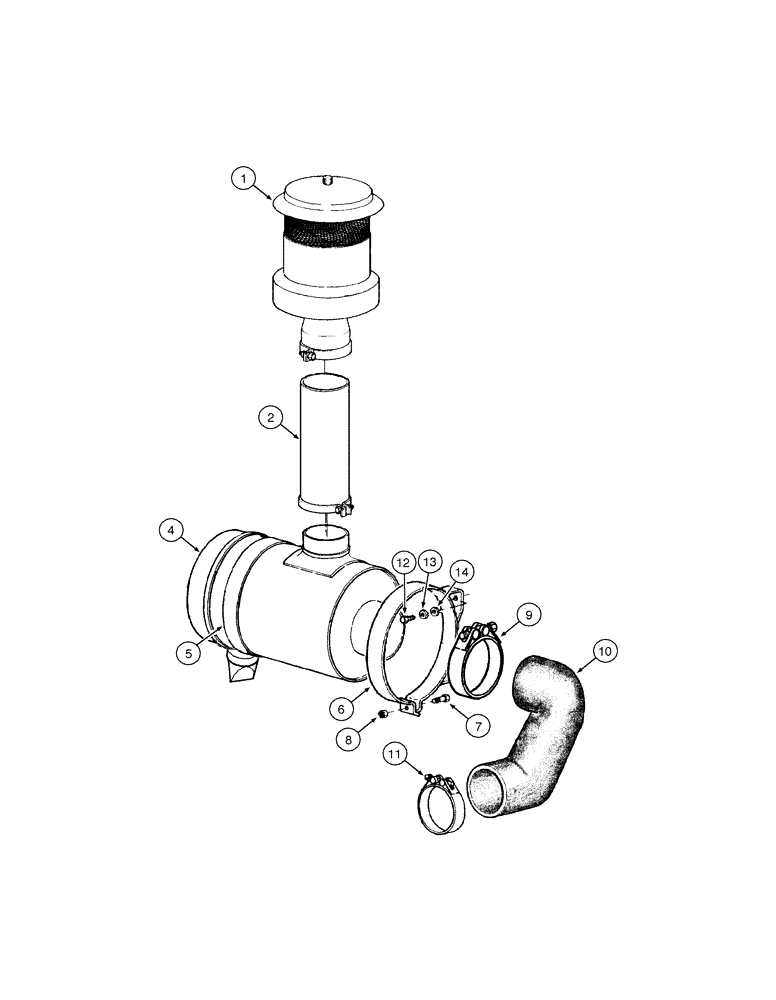

Запчасти Case 865 AWD (02-14[01]) - AIR CLEANER - MOUNTING (02) - ENGINE

75264629

FILTER ASSY

air Assy, Includes items 1 - 14

1шт.

1

REF

INSTRUCTION

PRE-FILTER Assy

1шт.

Page 02-18

1шт.

2

75261233

TUBE

1шт.

4

REF

INSTRUCTION

FILTER air Assy

1шт.

Page 02-16

1шт.

5

71100461

BRACKET

1шт.

6

71100653

CLAMP

Assy

1шт.

7

71101546

SCREW

2шт.

8

75312876

NUT

2шт.

9

L129159

CLAMP,5-1/4" - 6-1/8", Worm Gear

1шт.

10

75325851

HOSE,101.60 mm ID, 132.00 mm ID x 286.00 mm

1шт.

11

70925263

CLAMP

1шт.

12

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

13

10516873

WASHER

4шт.

14

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

4шт.
