Запчасти Case 865 AWD (08-028[01]) - FRONT WHEEL DRIVE HYDRAULIC PUMP - HYDRAULIC CIRCUIT (08) - HYDRAULICS

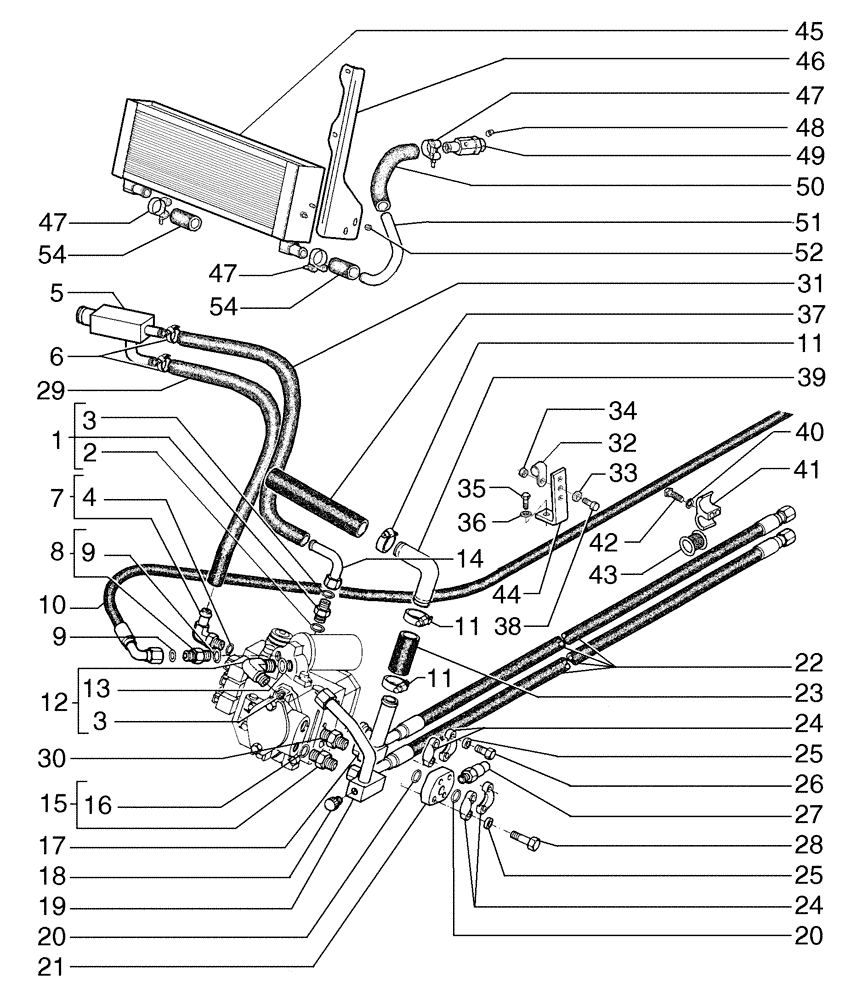

Схема запчастей Case 865 AWD - (08-028[01]) - FRONT WHEEL DRIVE HYDRAULIC PUMP - HYDRAULIC CIRCUIT (08) - HYDRAULICS
24
8
25
17
10
18
52
47
30
41
51
3
47
26
28
44
1
33
46
45
23
2
21
54
48
16
25
54
36
43
39
34
13
40
27
37
12
7
31
32
14
42
47
9
49
50
29
35
24
6
9
4
15
22
11
38
3
20
20
11
5
19
11

Артикул

Название

Примечание

Количество

1

84136792

FITTING

1шт.

2

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

4шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Includes item 4

1шт.

4

14453680

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

1шт.

5

87489067

TUBE

2шт.

6

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

4шт.

7

87632902

HYD CONNECTOR

Includes item 8

1шт.

8

87714256

FITTING

1шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Includes item 10

1шт.

10

87754314

FLEXIBLE HOSE

1шт.

11

254026A1

HOSE CLAMP,44.45mm - 66.67mm

4шт.

12

87755867

HYD CONNECTOR

1шт.

13

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Includes item 14

1шт.

14

84137339

TUBE,16 mm ID, 19.05 mm OD, 100, 65 mm Length

1шт.

15

87674791

HYD CONNECTOR

1шт.

16

14463880

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

Includes item 17

1шт.

17

87752569

RIGID TUBE

1шт.

18

86598046

PLUG,M18 x 1.5 ORB

1шт.

19

87676640

RIGID TUBE,16 mm ID x 20 mm OD

1шт.

20

70924110

O-RING

1шт.

21

87644986

3шт.

22

84192826

HOSE,19.05mm ID x 4300mm L

1шт.

23

87692854

HYDRAULIC HOSE,38.10 mm ID x mm, SAE 100R4 Class 4

2шт.

24

75261594

HALF-FLANGE

4шт.

25

12601471

WAVE WASHER,10.5mm OD x 21mm ID x 1mm Thk

8шт.

26

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

4шт.

27

6558780

SENSOR

1шт.

28

11107631

SCREW,Hex, M10 x 70mm, Cl 10.9

pressure

4шт.

29

87489084

HOSE,19.05mm ID x 690mm L, SAE 100R3

1шт.

30

84157751

FITTING

1шт.

31

87489083

HOSE,19.05mm ID x 500mm L, SAE 100R3

1шт.

32

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

2шт.

33

12648301

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

1шт.

34

12577221

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND

1шт.

35

16044031

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

1шт.

36

10516671

LOCK WASHER

1шт.

37

87672077

HYDRAULIC HOSE,38.10 mm ID x mm, SAE 100R4 Class 4

1шт.

38

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

1шт.

39

87673401

RIGID TUBE,38.1 mm OD x 122, 135 mm L

1шт.

40

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

2шт.

41

72204618

RETAINER COLLAR

1шт.

42

11107231

SCREW,Hex, M10 x 50mm, Cl 10.9

2шт.

43

72204607

BUSHING,28mm ID x 38mm OD x 70mm L

2шт.

44

87757915

SUPPORT

1шт.

45

87751052

OIL COOLER

1шт.

46

87755868

SUPPORT

RH

1шт.

46

87755869

SUPPORT

LH

1шт.

47

87372829

CLAMP,1.40" - 1.56"

6шт.

48

70901652

PLUG

1шт.

49

87363148

HYD CONNECTOR

1шт.

50

87755864

FLEXIBLE HOSE

1шт.

51

87374055

TUBE,19 mm ID x 25 mm OD x 165, 80 mm L

1шт.

52

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

53

E66256

SLEEVE

2шт.

Выбрано товаров: 54
