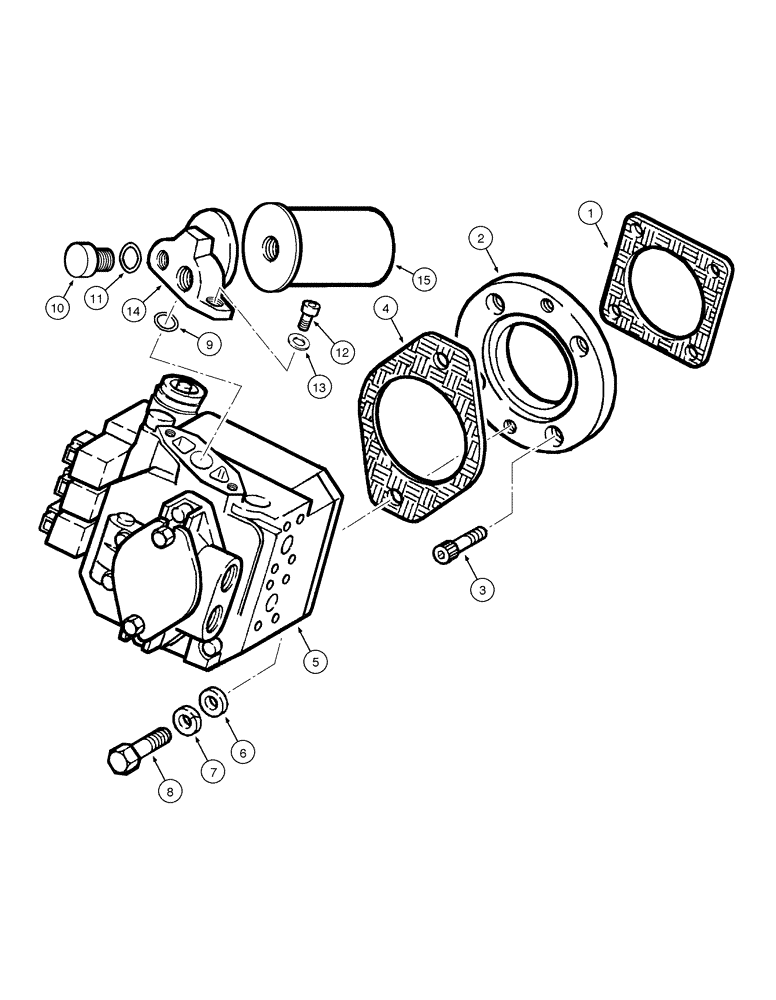

Запчасти Case 865 AWD (08-014[01]) - FRONT WHEEL DRIVE HYDRAULIC PUMP - ASSEMBLY (08) - HYDRAULICS

1

70188771

GASKET,0.79mm Thk

1шт.

2

87617082

FLANGE

1шт.

3

14422020

HEX SOC SCREW,M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

4

73151829

GASKET,0.76mm Thk

1шт.

5

87668596

HYDRAULIC PUMP,55 CC

Front Drive

1шт.

5

87668596R

REMAN-HYDROSTAT PUMP

865 AWD MOTOR GRADER TIER 3 (NA) (1/08-)

1шт.

5

87668596C

CORE-HYDROSTAT PUMP

Return Number

1шт.

6

86588503

WASHER,17mm ID x 28mm OD x 3mm Thk

2шт.

7

87016618

LOCK WASHER,M16

2шт.

8

86508624

BOLT,Hex, M16 x 45mm, Cl 10.9

2шт.

9

71103840

RUBBER RING

1шт.

10

71103841

PLUG

1шт.

11

71103842

RING

1шт.

12

71103844

SCREW

2шт.

13

71103843

BELLEVILLE SPRING

2шт.

14

71103839

FILTER HEAD

1шт.

15

71103845

ELEMENT

1шт.
