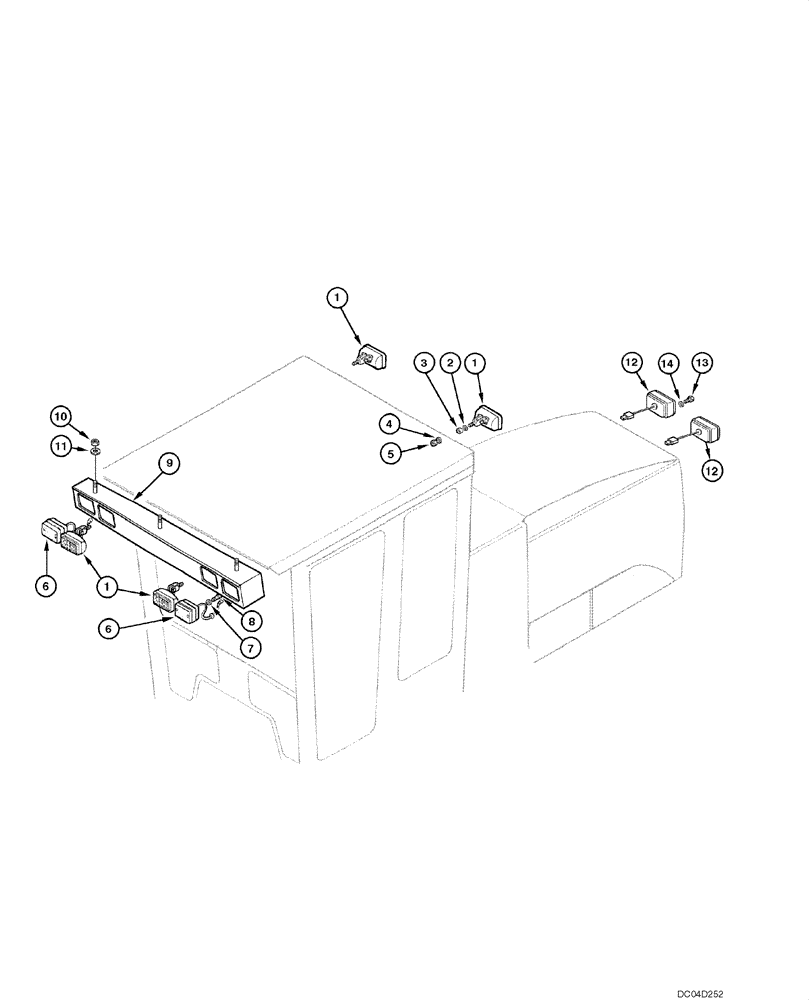

Запчасти Case 865 (04.22[00]) - HEADLIGHT AND LANTERN - CAB (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

Headlight, See Figure 04.23

4шт.

2

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

3

79089658

PAD

4шт.

4

75252602

WASHER,10.5mm ID x 28.5mm OD x 1.2mm Thk

4шт.

5

12104121

NUT

4шт.

6

REF

INSTRUCTION

Turn Signal, See Figure 04.25

2шт.

7

12644421

WASHER,6.15mm ID x 15mm OD x 1mm Thk

4шт.

8

70928182

SCREW

4шт.

9

75321851

BRACKET

1шт.

10

12104121

NUT

3шт.

11

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

3шт.

12

REF

INSTRUCTION

Road Traf. Light LH, See Figure 04.25

1шт.

12

REF

INSTRUCTION

Road Traf. Light RH, See Figure 04.25

1шт.

13

10977611

SCREW

4шт.

14

11195471

LOCK WASHER

4шт.
