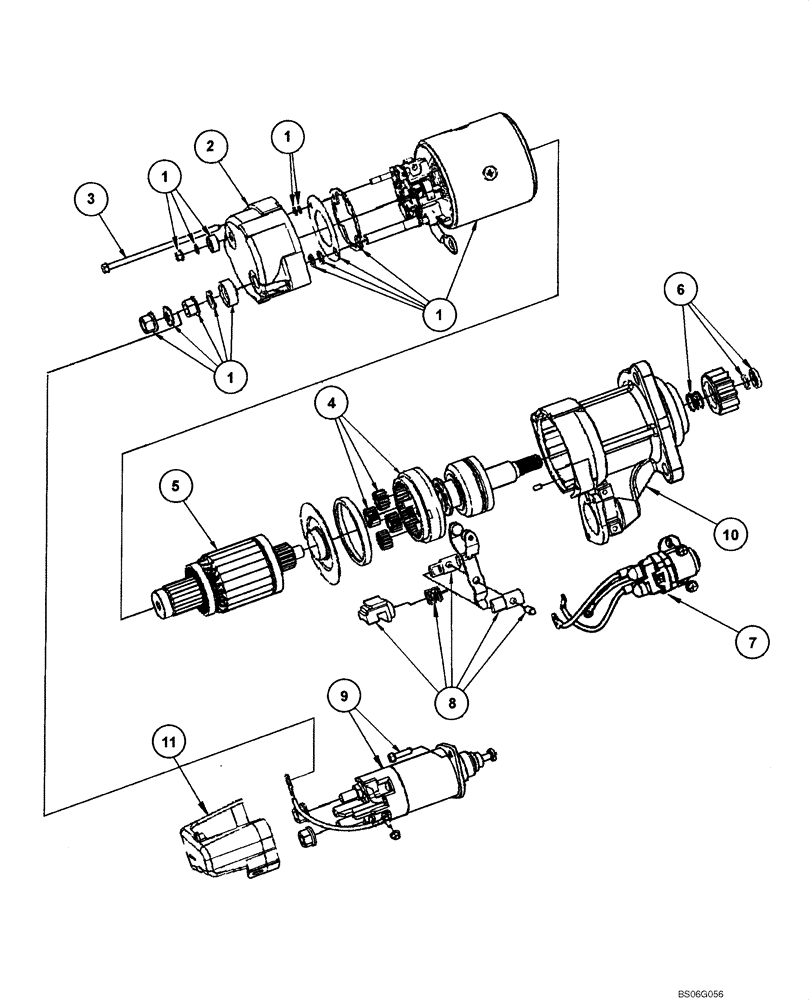

Запчасти Case 865 (04.01A[00]) - STARTER - ASSEMBLY (SN N5AF04057 - ) (04) - ELECTRICAL SYSTEMS

75264239

STARTER MOTOR,24V

Incl. 1-11

1шт.

75264239R

REMAN-STARTER,24V

865 MOTOR GRADER TIER 2 ASN 022101

1шт.

75264239C

CORE-STARTER,24V

Return Number

1шт.

1

71102741

HOUSING,24V

Housing

1шт.

2

71102554

COVER

Rest

1шт.

3

71102557

TIE-ROD

Bolt

1шт.

4

71102553

DRIVE ASSY.

Shaft

1шт.

5

71102744

ARMATURE

Armature

1шт.

6

71102551

ENGINE OVERHAUL KIT

Kit gear

1шт.

7

71102742

RELAY

Auxiliary

1шт.

8

71102549

ENGINE OVERHAUL KIT

Kit

1шт.

9

71102552

SOLENOID

Solenoid

1шт.

10

71102743

HOLDER

Rest

1шт.

11

71102745

COVER

Cover

1шт.
