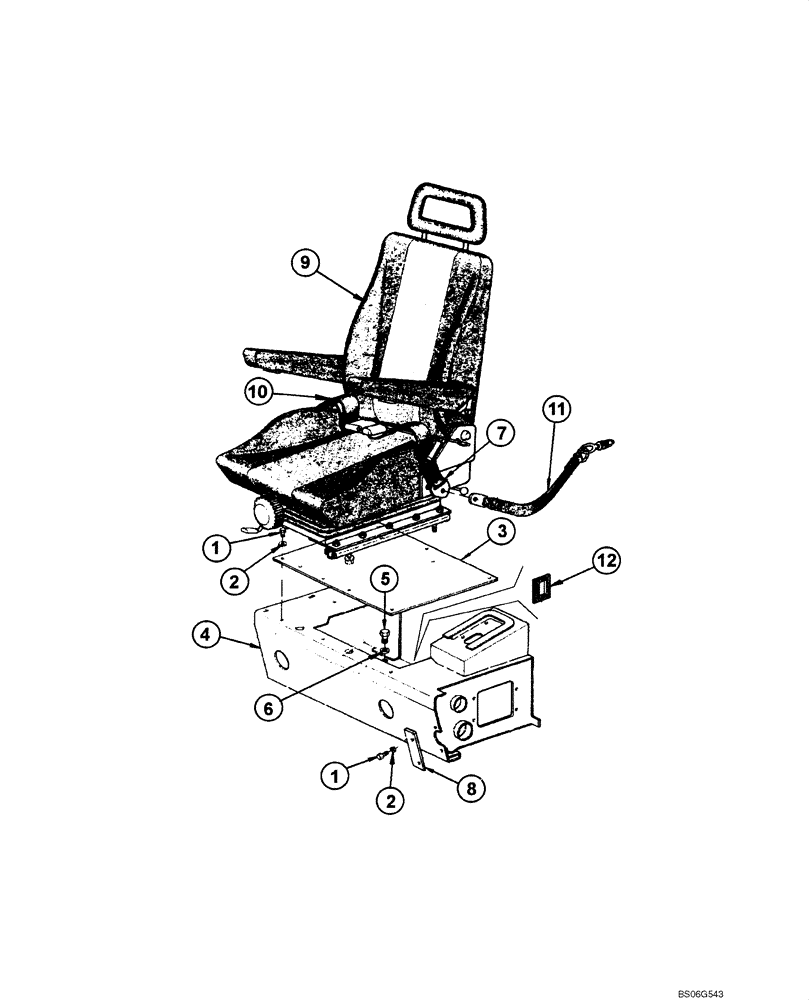

Запчасти Case 865 (09.54A[00]) - SEAT - MOUNTING AND BRACKET (09) - CHASSIS

1

16043131

BOLT,Hex, M8 x 1.25 x 14mm, Cl 10.9, Full Thd

2шт.

2

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

3

75281144

COVER

1шт.

4

75326763

SUPPORT

For Machine Equipped With Closed Cab

1шт.

4

75253776

SUPPORT

1шт.

5

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

2шт.

6

12642021

WASHER

2шт.

7

REF

INSTRUCTION

Safety Belt, See Figure 09.55

2шт.

8

75281142

PLATE

1шт.

9

REF

INSTRUCTION

Seat Operator, See Figure 09.56

1шт.

10

REF

INSTRUCTION

Safety Belt, See Figure 09.56

1шт.

11

75312144

SAFETY BELT ,47.00 mm W

2шт.

12

75327065

SEAL RETAINER

For Machine Equipped With Closed Cab

1шт.

12

75327066

SEAL RETAINER

For Machine Equipped With Closed Cab

1шт.
