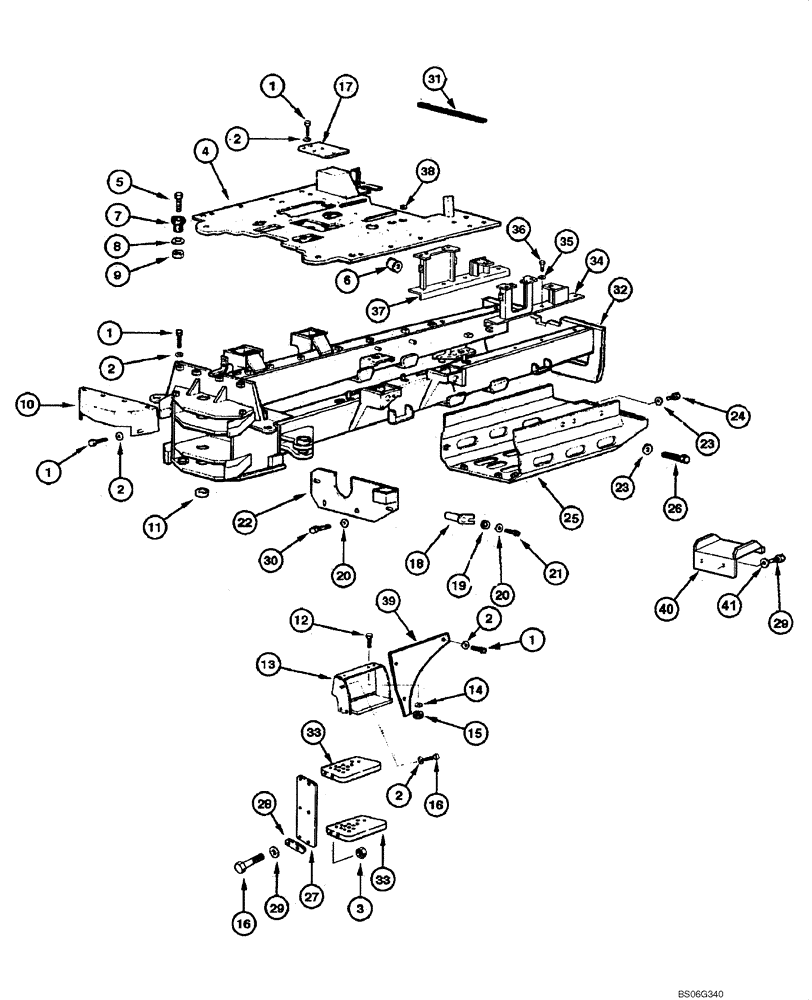

Запчасти Case 865 (09.02[00]) - REAR CHASSIS (09) - CHASSIS

1

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

29шт.

2

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

29шт.

3

16100821

NUT,M8, Cl 10

16шт.

4

75264061

FLOOR

1шт.

5

15981531

BOLT,Hex, M16 x 1.5 x 90mm, Cl 10.9

2шт.

6

70684837

BUSHING,31.72mm ID x 63.75mm OD x 85.85mm L

4шт.

7

76022229

INSULATOR BLOCK

2шт.

8

75254313

WASHER,16.5mm ID x 58mm OD x 4.76mm Thk

2шт.

9

15504021

NUT,M16 x 1.5

2шт.

10

75267260

GUARD

Guard

1шт.

11

75213759

BUSHING,66.84mm ID x 79.38mm OD x 25.4mm L

3шт.

12

15988431

BOLT,Hex, M20 x 1.5 x 65mm, Cl 10.9

4шт.

13

87351103

LADDER

Ladder LH

1шт.

13

87351034

LADDER

Ladder RH

1шт.

14

70677012

WASHER,20.64mm ID x 44.45mm OD x 7.94mm Thk

20шт.

15

12575127

NUT,M20

20шт.

16

16043931

SCREW,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

16шт.

17

75249861

COVER

1шт.

18

75248739

PIN,31.62mm OD x 171mm L

4шт.

19

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

4шт.

20

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

21

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

4шт.

22

75267205

PLATE

Cover

1шт.

23

10520001

WASHER,12.2mm ID x 22mm OD x 3mm Thk

12шт.

24

11113031

SCREW,Hex, M12 x 45mm, Cl 10.9, Full Thd

4шт.

25

75267196

Guard

1шт.

26

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

6шт.

27

75324582

PLATE

4шт.

28

75267263

PLATE

Plate

12шт.

29

11112131

SCREW,Hex, M12 x 20mm, Cl 10.9, Full Thd

8шт.

30

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

31

71100431

KIT DEPOT ASSEMBLING

Retainer

1шт.

32

75260066

ADAPTER

Chasis Rear

1шт.

33

75267266

LADDER

Step Lower

4шт.

34

75323328

SUPPORT

1шт.

35

70677010

WASHER,16.67mm ID x 38.1mm OD x 7.94mm Thk

6шт.

36

14258430

BOLT,Hex, M16 x 1.5 x 60mm

6шт.

37

75324392

SUPPORT

1шт.

38

75321577

GROMMET,15.5mm ID x 36.5mm OD x 19mm Thk

2шт.

39

75324971

PLATE

Guard Side Panel RH

1шт.

39

87351145

COVER

Guard Side Panel LH

1шт.

40

75266724

LADDER

Ladder

2шт.

41

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

4шт.
