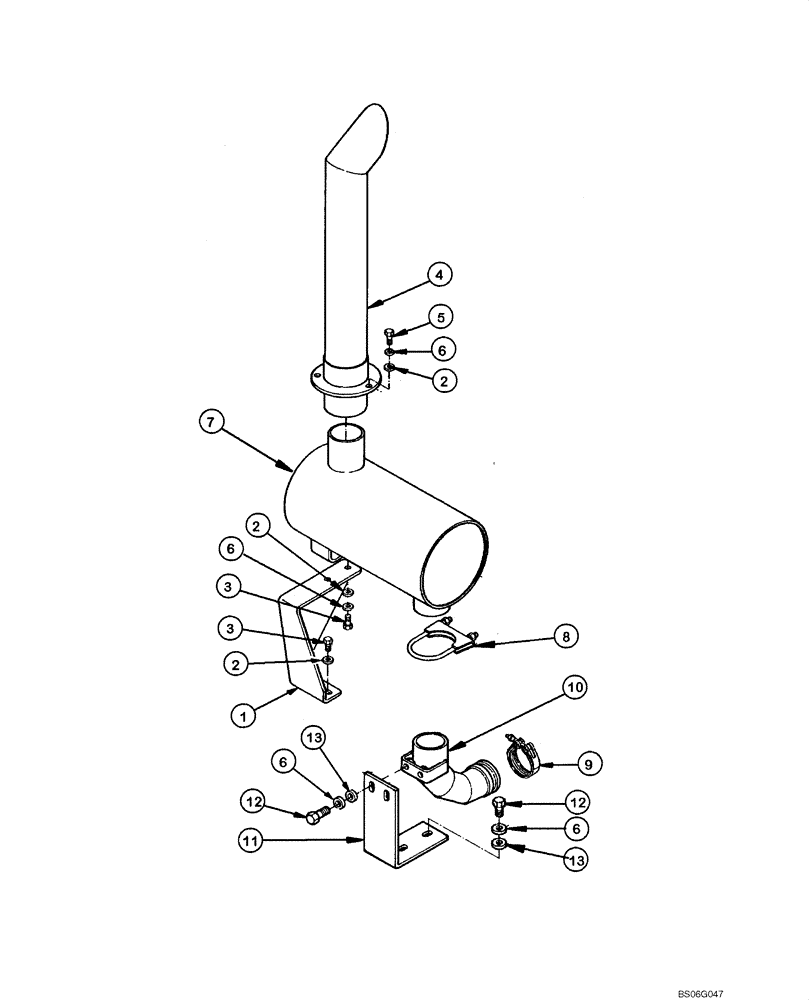

Запчасти Case 865 (02.10[00]) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

75325177

SUPPORT

Bracket

1шт.

2

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

7шт.

3

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

4

75323452

PIPE

1шт.

5

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

3шт.

6

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

9шт.

7

73164453

MUFFLER

1шт.

8

A162896

CLAMP

1шт.

9

75208324

CLAMP

1шт.

10

75325280

PIPE

1шт.

11

75325276

SUPPORT

1шт.

12

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

6шт.

13

11106031

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

4шт.
