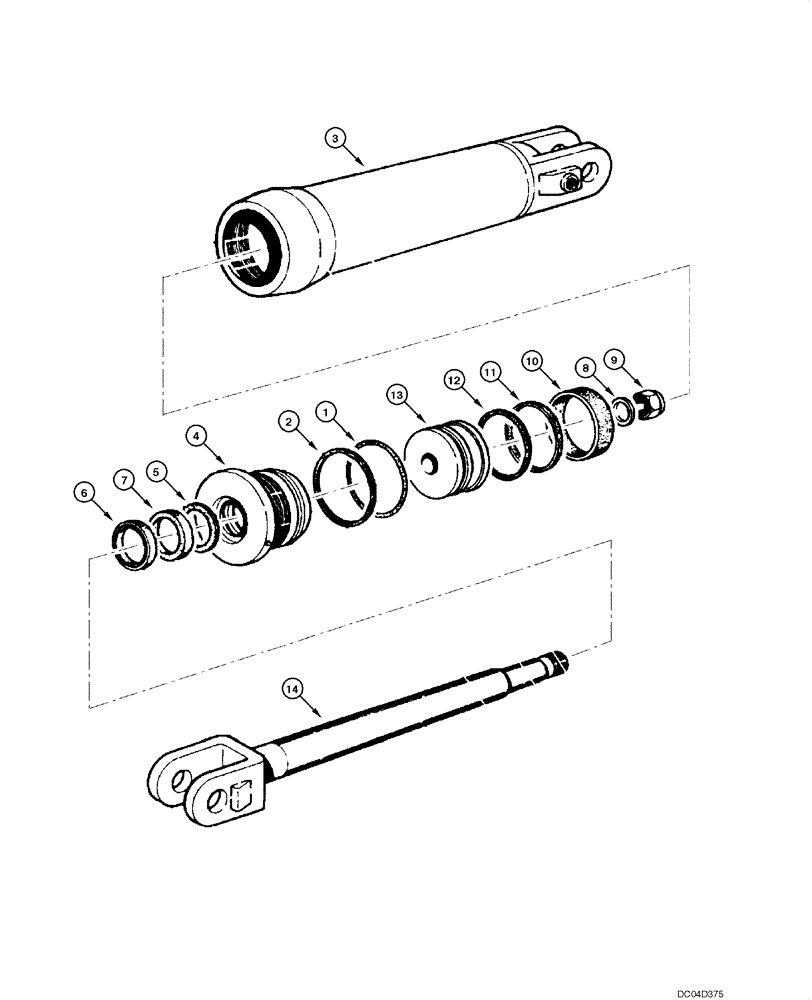

Запчасти Case 865 (08.61[00]) - CYLINDER - SCARIFIER (08) - HYDRAULICS

75266894

CYLINDER

Cylinder Scarifier, Incl. 1-14

1шт.

1

70927242

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

1шт.

2

70926629

RING

1шт.

3

73067551

CYLINDER,104.39mm Bore Dia

Liner

1шт.

4

73067593

PISTON SWIVEL HEAD

SWIVEL HEAD PISTON

1шт.

5

73067518

RING,50.42mm ID x 64.85mm OD x 2.92mm Thk

1шт.

6

73053637

MUDSCRAPER RING

1шт.

7

73067915

SEAL,50.8mm ID x 63.5mm OD x 9.53mm Thk

1шт.

8

73055413

SPACER

1шт.

9

73073210

LOCK NUT

1шт.

10

73055430

LOCKING RING

1шт.

11

73055431

LOCKING RING

1шт.

12

70927343

LOCKING RING

1шт.

13

73067547

PISTON

1шт.

14

73067546

PISTON

1шт.

73159181

KIT

Incl.1-2,5-7,10-12

1шт.
