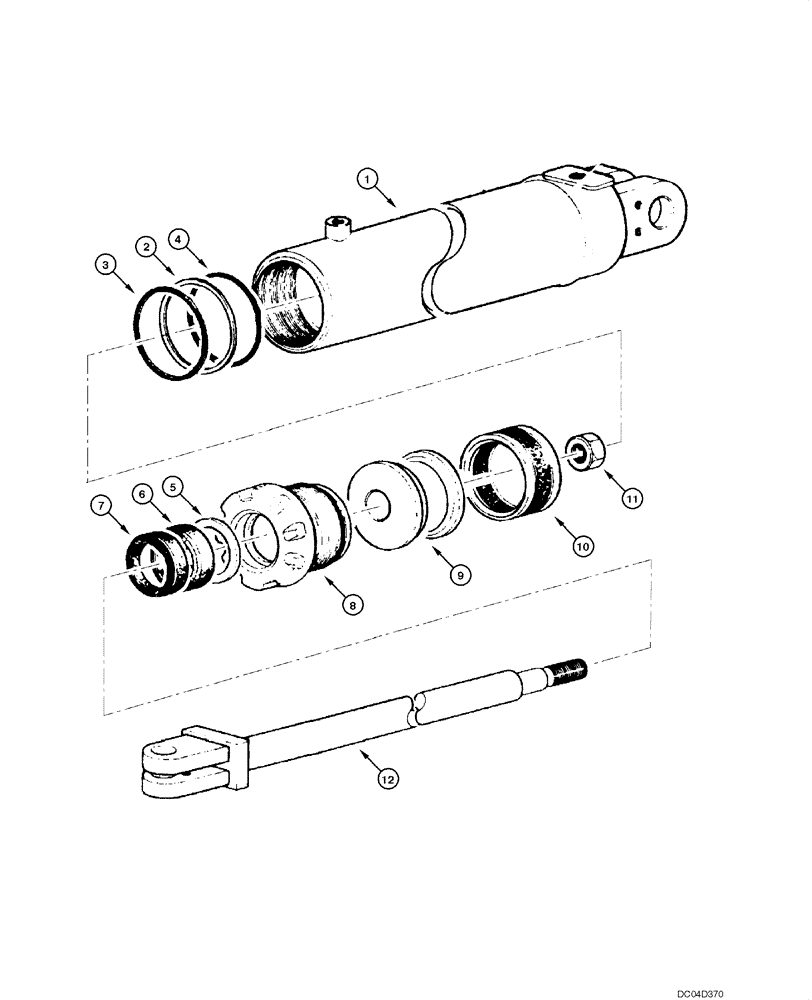

Запчасти Case 865 (08.56[00]) - CYLINDER - BLADE SIDE SHIFT (08) - HYDRAULICS

75267316

CYLINDER

Cylinder, Blade Side Shift, Incl. 1-12

1шт.

75250020R

REMAN-HYD CYLINDER

865 MOTOR GRADER TIER 2 - ASN 022101, Cylinder, Blade Side Shift, Reman for New PN 75267316

1шт.

75250020C

CORE-HYD CYLINDER

Return Number

1шт.

1

75250023

CYLINDER,80mm Bore Dia

1шт.

2

8297295

RING,73.8mm ID x 80mm OD x 1.5mm Thk

1шт.

3

14465480

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

4

14465180

O-RING,72.62mm ID x 3.53mm Width

1шт.

5

8297074

RING

1шт.

6

8297073

BRAKE LINING

1шт.

7

8288832

O-RING

1шт.

8

75218748

BASE PLATE

1шт.

9

79038730

PISTON

1шт.

10

8291506

SEALING RING

SEALRING

1шт.

11

8281325

NUT

1шт.

12

75250021

ROD,50mm OD x 1495mm L

1шт.

13

75220878

SEAL KIT

Incl. 2-4, 6-7, 10

1шт.
