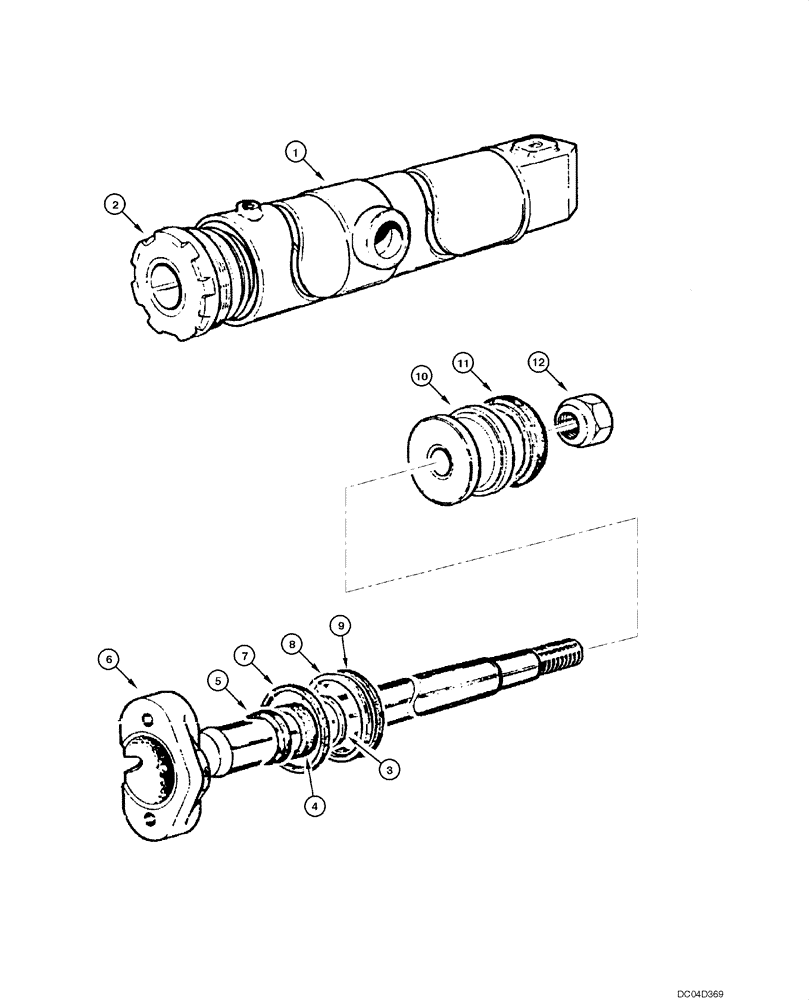

Запчасти Case 865 (08.55[00]) - CYLINDER - TURN-CIRCLE (08) - HYDRAULICS

75267003

CYLINDER,Double Acting, 35mm Rod, 578mm Stroke

Turn-Circle, Incl. 1-12

1шт.

75268461R

REMAN-HYD CYLINDER

Turn-Circle

1шт.

75268461C

CORE-HYD CYLINDER

Return Number

1шт.

1

75220713

LINER, ENGINE CYLIND,761.1 mm Length

1шт.

2

75220924

BASE PLATE

1шт.

3

8297074

RING

1шт.

4

8297073

BRAKE LINING

1шт.

5

8288832

O-RING

1шт.

6

75220710

ROD,50mm OD x 812.3mm L

1шт.

7

14465780

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

1шт.

8

8297075

RING,83.8mm ID x 90.21mm OD x 6mm Thk

1шт.

9

14465480

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

10

79038228

PISTON

1шт.

11

8291561

PISTON RING,88.31mm Bore, 56mm Rod, 47mm W

1шт.

12

8298615

NUT

1шт.

13

75220700

SEAL KIT

Incl. 3-9, 11

1шт.
