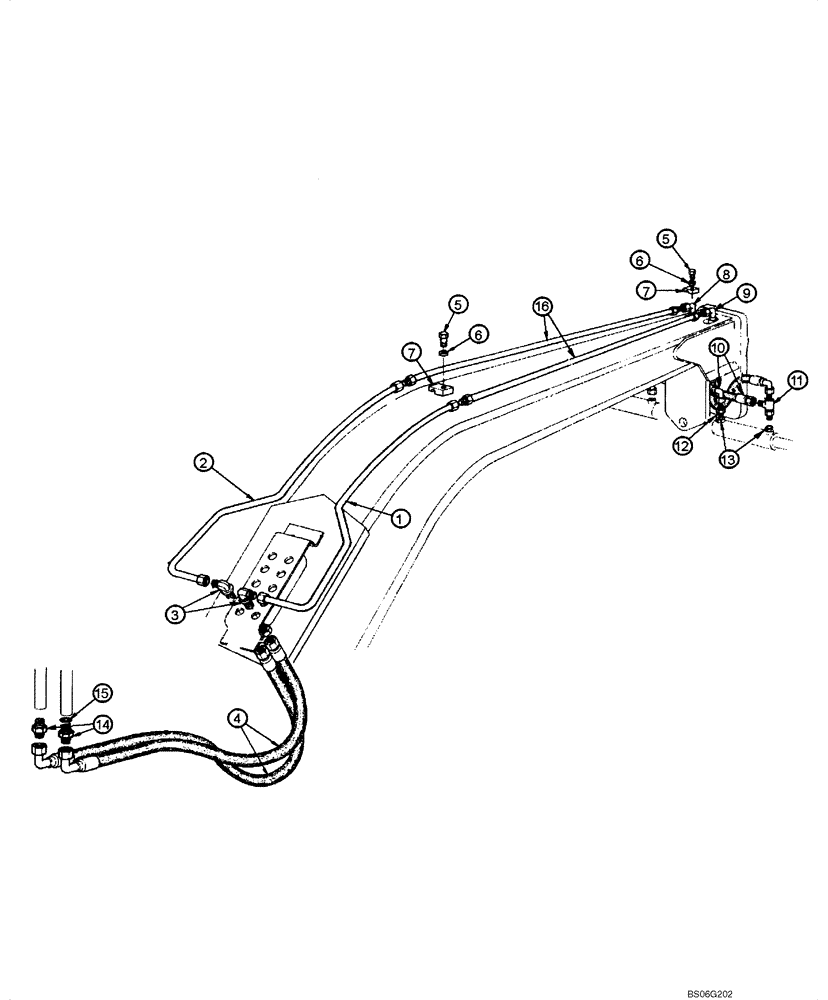

Запчасти Case 865 (08.32[00]) - BRAKE AND STEERING - HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

75253440

RIGID TUBE

1шт.

2

75253439

RIGID TUBE

1шт.

3

70927163

HYD CONNECTOR

2шт.

4

75251181

FLEXIBLE HOSE

2шт.

5

16044331

SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9

6шт.

6

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

6шт.

7

73127629

CLAMP

6шт.

8

75255789

HOSE,9.5mm ID x 1330mm L, SAE 100R2

1шт.

9

75255790

HOSE,9.5mm ID x 1330mm L, SAE 100R2

1шт.

10

75322989

FLEXIBLE HOSE

2шт.

11

70930806

3 WAY CONNECTION

2шт.

12

70922457

HYD CONNECTOR

2шт.

13

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

14

70921409

HYD CONNECTOR

2шт.

15

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

16

75253450

RIGID TUBE

1шт.
