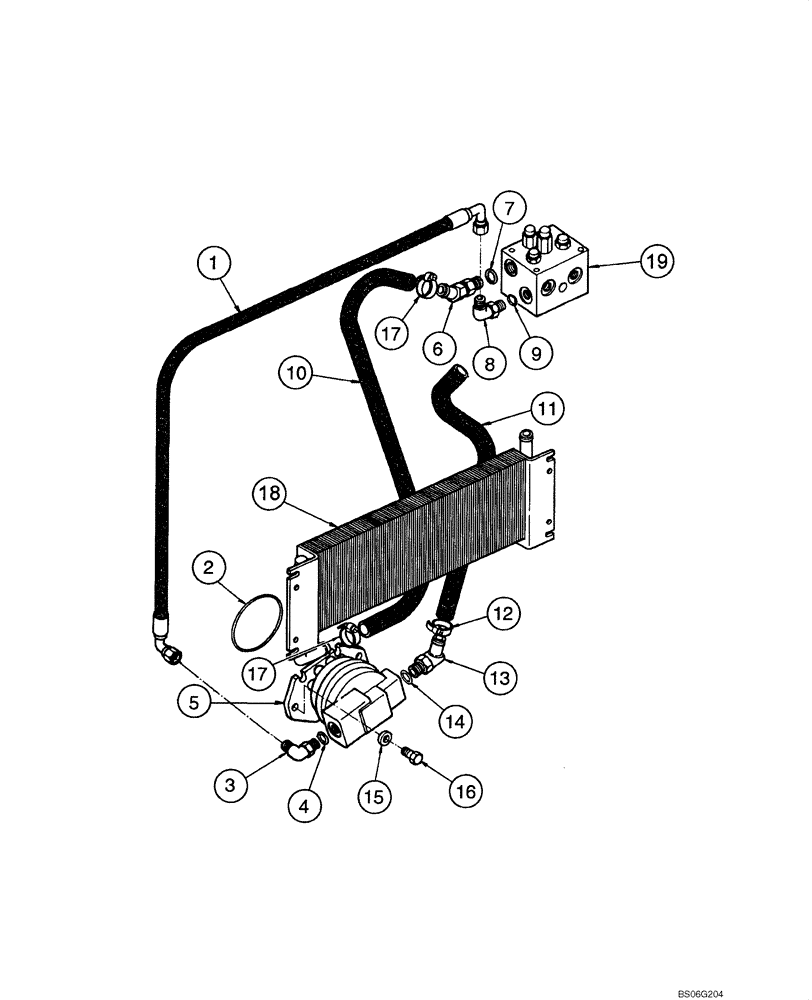

Запчасти Case 865 (08.30A[00]) - ENGINE COOLING - REVERSIBLE FAN HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

75326972

HOSE ASSY.

1шт.

2

14466880

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

3

70935989

HYD CONNECTOR

1шт.

4

70926843

O-RING,-125, Cl 8, 1.299" ID x .103" Thk

1шт.

5

REF

INSTRUCTION

Oil Pump, See Figure 08.31

1шт.

6

75326990

FITTING

1шт.

7

14438185

O-RING,24mm ID x 3mm

1шт.

8

79067025

ELBOW

Incl. 9

1шт.

9

70922660

CLAMP

2шт.

10

75326974

HOSE ASSY.

1шт.

11

75325657

HYDRAULIC HOSE,32.00 mm ID x 390.00 mm, SAE 100R4

1шт.

12

214-2122

CLAMP,39.62mm - 45.97mm

2шт.

13

75323722

HYD CONNECTOR

Incl. 14

1шт.

14

70925935

O-RING,-223, Cl 8, 1.609" ID x .139" Thk

O-ring

1шт.

15

10517071

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

2шт.

16

11112431

SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd

2шт.

17

14457981

O-RING,1.049" ID x 0.103" Width

1шт.

18

REF

INSTRUCTION

Oil Radiator, See Figure 08.30B

1шт.

19

REF

INSTRUCTION

Valve, See Figure 08.31A

1шт.
